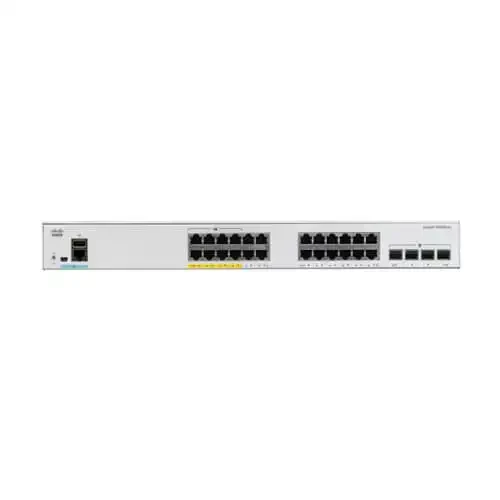

Cisco C1000-24P-4G-L 24 Port Gigabit POE Switch

The Cisco C1000-24P-4G-L is a powerful and feature-rich 24 port Gigabit POE (Power over Ethernet) switch from the Cisco Catalyst 1000 Series. These switches are designed specifically for small businesses and branch offices, providing enterprise-class Layer 2 functionality in a compact and secure form. With the Cisco IOS Software operating system, the C1000-24P-4G-L offers simple device management and network management through both a Command-Line Interface (CLI) and an on-box web UI. This makes it easy to configure and monitor the switch, ensuring efficient network operations. The switch features 24 Gigabit Ethernet ports that can deliver both data and power through POE+ technology. This allows for seamless connectivity and power supply to compatible devices such as IP phones, wireless access points, and surveillance cameras. Additionally, it offers 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks for high-speed connections to other switches or network devices. The C1000-24P-4G-L is its Perpetual PoE+ support, providing a power budget of up to 195W. This ensures reliable power delivery to connected devices, even during high-demand scenarios.

  • MODEL:C1000-24P-4G-L
  • Description:24x 10/100/1000 Ethernet PoE+ ports and 195W PoE budget, 4x 1G SFP uplinks
  • Gigabit Ethernet ports:24
  • Uplink interfaces:4 SFP
  • PoE+power budget:195W
  • Fanless:Yes
  • Dimensions (WxDxH in inches):17.5 x 11.76 x 1.73
  • CPU:ARM v7 800 MHz
  • DRAM:512 MB
  • Flash memory:256 MB
  • Forwarding bandwidth:28 Gbps
  • Switching bandwidth:56 Gbps
  • Forwarding rate(64—byte L3 packets):41.67 Mpps

File Type File Name Actions
No document available for this product.
