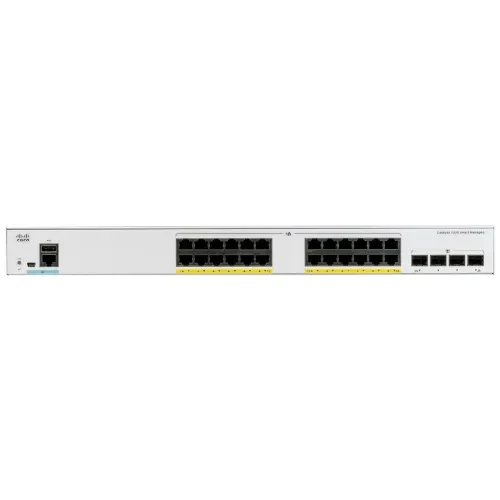

Cisco C1000-24T-4X-L Catalyst 1000 Series 24-Port Managed Switch

The Cisco C1000-24T-4X-L Catalyst 1000 Series 24-Port Managed Switch is a versatile and reliable network switch designed for small businesses and branch offices. It features 8, 16, 24, or 48 Gigabit Ethernet data or PoE+ ports, providing line-rate forwarding and power-over-ethernet capabilities. Additionally, it has 2 or 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP)/RJ 45 Combo uplinks or 4 fixed 0 Gigabit Ethernet Enhanced SFP (SFP+) uplinks for easy connectivity with other devices. The Cisco Catalyst 1000 operates on Cisco IOS Software and can be managed through a Command-Line Interface (CLI) or an intuitive web UI. The switch also includes network monitoring capabilities through sampled flow (sFlow). The security features of this switch include support for 802.1X, Switched Port Analyzer (SPAN), and Bridge Protocol Data Unit (BPDU) Guard. These features ensure that connected devices are secure and protected against network threats. The switch is designed for easy device management with options such as over-the-air access via Bluetooth, Simple Network Management Protocol (SNMP), RJ-45, or USB console access. Additionally, it has a higher Mean Time Between Failures (MTBF) and comes with enhanced limited lifetime warranty support(E-LLW), making it a reliable choice for small organizations. For those looking for a compact design, there are fanless models available with a depth of less than 13 inches (33 cm). Overall, the Cisco C1000-24T-4X-L Catalyst 1000 Series 24-Port Managed Switch is an excellent choice for small businesses and branch offices that require a reliable and secure network switch.

  • MODEL:C1000-24T-4X-L
  • Description:24x 10/100/1000 Ethernet ports, 4x 10G SFP+ uplinks
  • Gigabit Ethernet ports:24
  • Uplink interfaces:4 SFP+
  • PoE+power budget: \
  • Fanless:Yes
  • Dimensions (WxDxH in inches):17.5 x 9.45 x 1.73
  • CPU:ARM v7 800 MHz
  • DRAM:512 MB
  • Flash memory:256 MB
  • Forwarding bandwidth:64 Gbps
  • Switching bandwidth:128 Gbps
  • Forwarding rate(64—byte L3 packets):41.67 Mpps
