HSGQ-G01

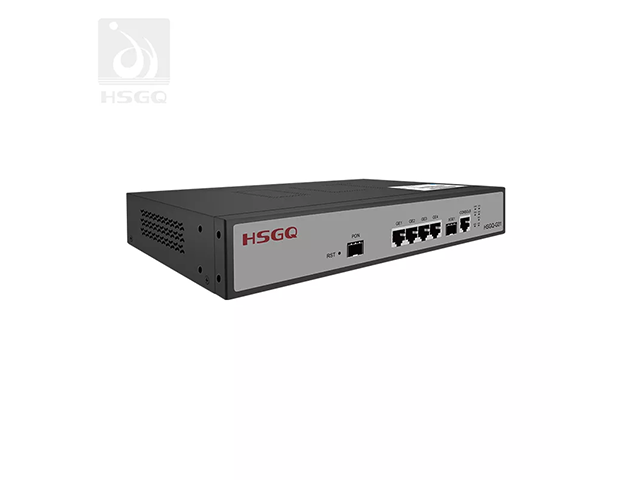

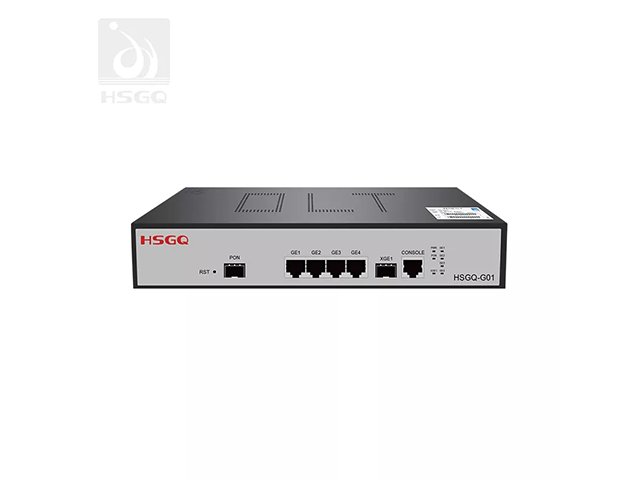

HSGQ-G01 1 Port Gpon Mini OLT Optical for FTTX

Key Features
  • 1× GPON SFP port supporting 1:128 split ratio (up to 128 ONU)
  • 4× 1GE RJ45 + 1× 10G SFP+ uplink ports
  • ITU-T G.984/G.988 standard with OMCI management
  • Compact cassette design, low power consumption (<10W)
Brand HSGQ
Category OLT
Model HSGQ-G01
Availability In Stock
General
Device Type 1-Port Mini GPON OLT
Form Factor Compact Cassette / 1U Rack-mountable
Physical

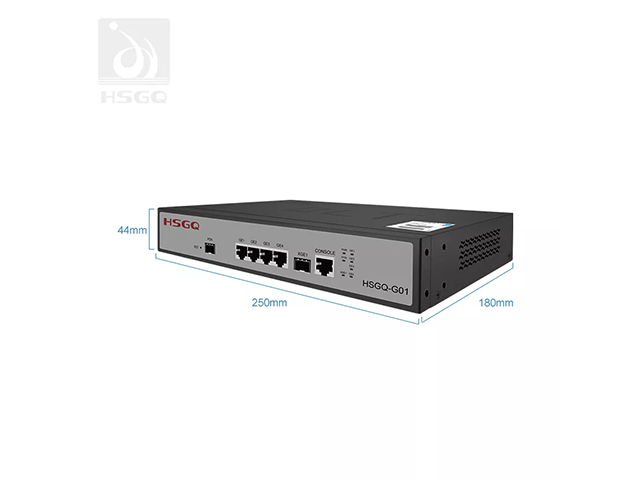

Dimensions 250mm × 180mm × 44mm
Weight < 5 kg
PON Features
PON Type GPON (ITU-T G.984 / G.988)
GPON Port 1 × GPON SFP Port
EPON Port No
XPON Support No (GPON only)
Split Ratio 1:128 (Max)
Max ONU Support 128
Interface
Uplink Port 4 × 1GE RJ45 + 1 × 10G SFP+
SFP Port 1 × GPON SFP + 1 × 10G SFP+
Combo Port No
Console Port RJ45 Console
Management Port Ethernet / NMS
Performance
Switching Capacity Suitable for 1-Port GPON (High Performance)
Forwarding Rate Wire-speed
Features
VLAN Yes (4K VLAN, QinQ)
QoS Yes (DBA, Priority Queues)
IPv6 Support Yes
Layer Support Layer 2+
TR069 Support Supported via NMS
Management
Web Management Yes (GUI)
CLI Yes
SNMP Yes
Power

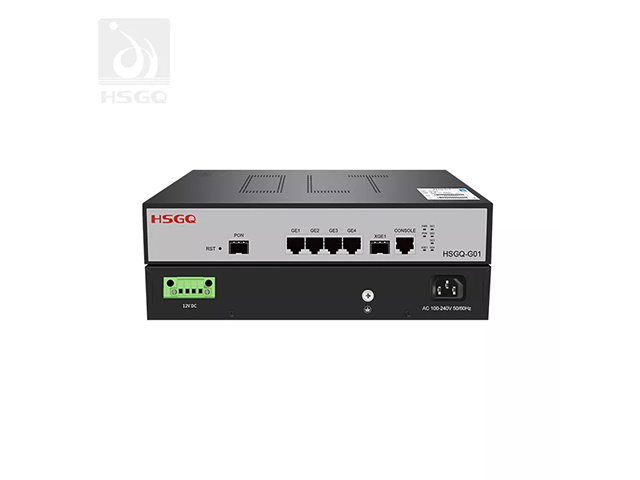

Power Supply AC 100-240V / DC 12V
Power Consumption < 10W (Typical)
Redundant Power Support No
Environment
Operating Temperature -10°C to 55°C
Humidity 10% to 90% (non-condensing)
Others
Package Content HSGQ-G01 OLT device, Power adapter, Console cable, Mounting kit, User manual
Warranty & Support
Warranty 1 Year Official Warranty
