SOL-604

Solitine / UPS

SOL-604

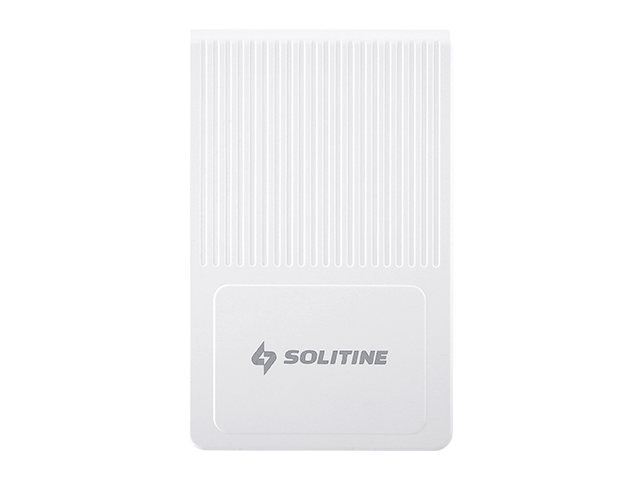

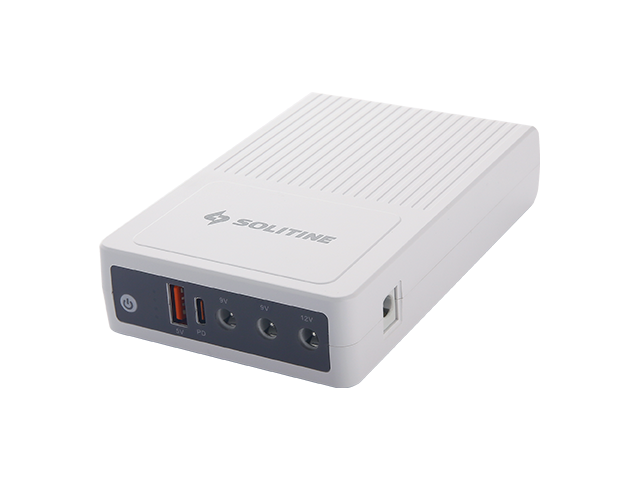

Solitine SOL-604 Premium Mini DC UPS

Key Features
  • 10000mAh lithium battery with up to 24W output power
  • Selectable voltages: 5V / 9V / 12V / 15V / 24V + USB & Type-C
  • Supports Router, ONU, IP Camera & other DC devices
  • Intelligent protections, silent operation, LED indicators & 1 Year Warranty
Brand Solitine
Category UPS
Model SOL-604
Availability In Stock
General
UPS Type Mini DC UPS (Lithium Battery Backup)
Color White
Power
Capacity 10000mAh
Rated Power 24W Max
Input Voltage 90-264V AC, 50-60Hz
Output Voltage Selectable 5V / 9V / 12V / 15V / 24V (DC outputs) + USB 5V
Output Frequency 50-60Hz (Pass-through)
Waveform Type Pure DC Output
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency (typical >85%)
Battery
Battery Type 18650 Lithium-ion cells
Battery Capacity 10000mAh
Battery Quantity Integrated (non-removable)
Backup Time 4–8+ hours (depends on load — e.g., ~5 hours for Router + ONU, 3–4 hours with Camera)
Battery Voltage Internal Lithium nominal
Interface
AC Output Port None (DC UPS)

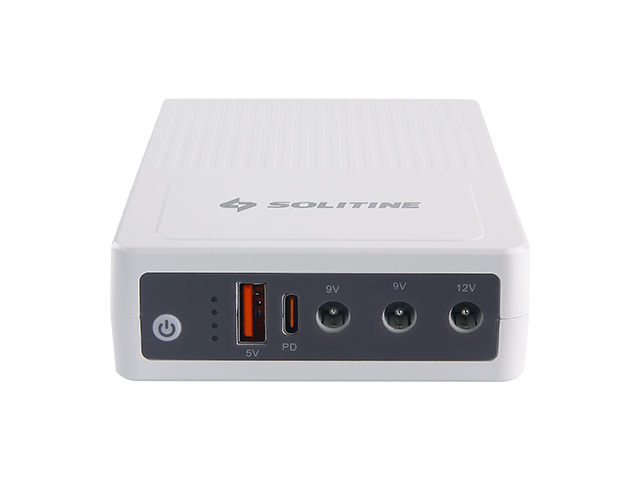

DC Output Port Multiple DC ports (typically 1×12V / 2×9V / 1×5V)
USB Port Yes (5V 2.4A)
PoE Output No
Connector Type DC ports + USB + Type-C
LED Indicator Yes (Battery level + Status LEDs: 25%, 50%, 75%, 100%)
Power Button Yes
Protection
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes (basic)
Overheat Protection Yes
Features
Auto Restart Yes (Auto Start When Plugged In)
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless silent operation)
Smart Charging Yes (Microprocessor controlled)
Physical
Dimensions 199 × 113 × 51 mm (or 178 × 158 × 38 mm in some listings)
Weight Approx. 500–650g
Material ABS Plastic
Warranty & Support
Warranty 1 Year Official Warranty
