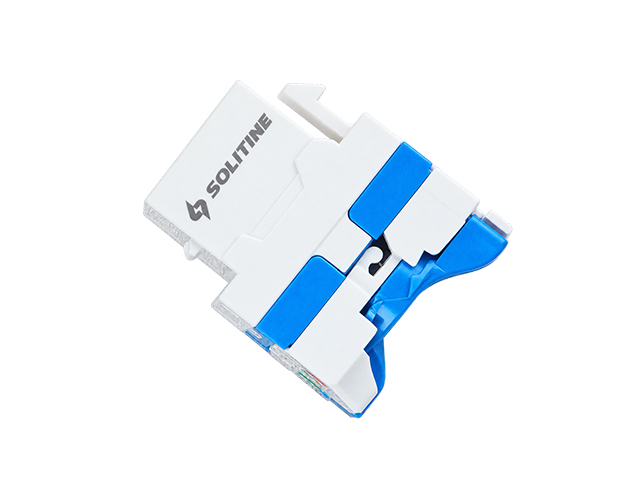

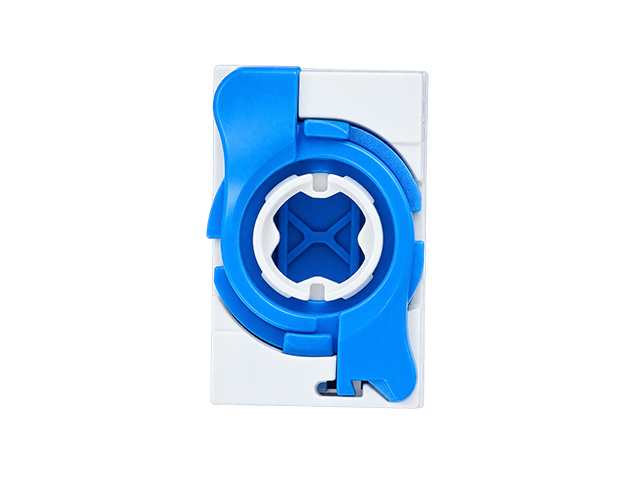

Solitine SOL6F180B-BLU Cat6 UTP Keystone Jack Modular
The Solitine SOL6F180B-BLU is a high-performance Category-6 UTP Keystone Jack Modular designed for reliable data transmission in modern network infrastructures. Featuring an 8P8C configuration with 50µ" gold-plated contacts, this 180-degree punch-down jack provides superior connectivity and optimal signal integrity.
Premium Contact & Durability
Equipped with 50µ" gold-plated contacts on phosphor bronze, the SOL6F180B-BLU prevents oxidation and ensures long-term durability. The jack supports a minimum of 750 mating cycles for reliable performance.
Flexible Installation

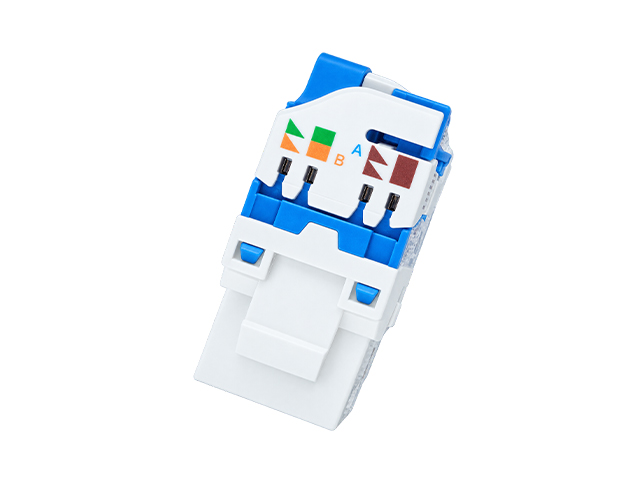

The IDC terminal block supports both 110 and Krone punch-down tools. Integrated color-coded wiring stickers allow easy support for both T568A and T568B wiring schemes, and the terminals accommodate 22–26 AWG solid and stranded cables.
Space-Saving & Compliant Design
With a slim footprint, this blue keystone jack fits perfectly side-by-side in high-density panels and faceplates. It complies with ANSI/TIA/EIA 568 C.2, ISO/IEC 11801, IEC 60603-7-4, UL & ETL, and RoHS standards.
The Solitine SOL6F180B-BLU Cat6 Keystone Jack is a reliable modular solution for structured cabling systems.
