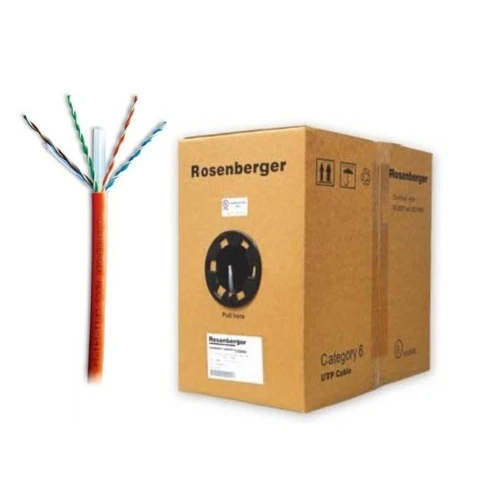

CAT6 UTP DATA CABLE- LSZH

Rosenberger CAT6 UTP data cables are designed for unshielded cabling system. Rosenberger HDCS® Category 6 data cables exceed ANSI/TIA-568C.2 and ISO/IEC11801 2nd requirements for Category 6 performance with large margins on all parameters. It is available in different jacket material such as CMX, CM, CMR, CMP, LSZH for different applications. ✅ 10baseT Ethernet ✅ 100baseTX Fast Ethernet ✅ 1000baseTX Gigabit Ethernet ✅ 155Mbit ATM ✅ 622Mbit ATM ✅ 1.2 Gbit ATM ✅ TR-16 Active ✅ TR-16 Passive

  • Construction: 4×2×AWG23
  • Conductor: AWG 23 solid copper
  • Insulation: HDPE
  • Core: 4 twist pairs
  • Filling: “+ ”style
  • Sheath: CMX, CM, CMR, CMP, LSZH
  • Standard Color: Grey (PVC), Orange (LSZH)
  • Normal Diameter: 6.4 mm

File Type File Name Actions
PDF 2. CAT6 UTP DATA CABLE- LSZH.pdf View Download
