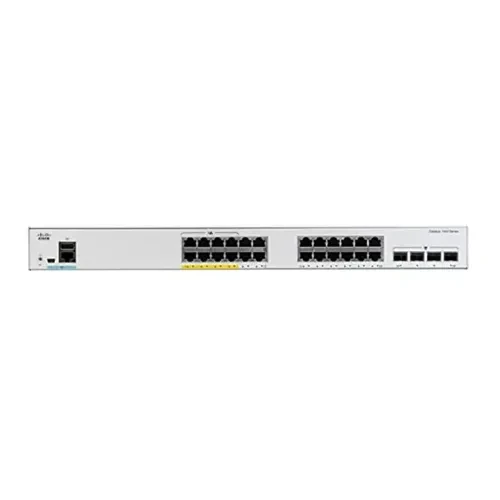

Cisco C1000-24FP-4G-L 24 Port Gigabit PoE+ Compliant Managed Switch

The Cisco Catalyst C1000-24FP-4G-L 24-Port Gigabit PoE+ Compliant Managed Switch will increase your small business's network's ability to support PoE network devices including IP cameras, VoIP phones, and access points. This managed rack-mountable switch has four 1G SFP ports for fiber uplink connections to suitable devices in addition to 24 PoE+ compliant Gigabit ports with a 370W budget. Utilize the user-friendly web-based or command-line interface to easily configure and manage your network's many Layer 2 capabilities.The Cisco C1000-24FP-4G-L 24 Port Gigabit Managed Switch uses intelligent power management to provide flexible power allocation across all the 30W ports. With Perpetual PoE, the PoE+ power is maintained during a switch reload.The Cisco C1000-24FP-4G-L 24 Port Gigabit Managed Switch Powered by an 800 MHz ARM processor with 512MB of memory, the C1000-24FP-4G-L helps to ensure smooth data transfers with a 56 Gb/s switching capacity and 41.67 Mpps forwarding rate.The Cisco C1000-24FP-4G-L 24 Port Gigabit Managed Switch features 802.1x support for connected devices in addition to a Switched Port Analyzer (SPAN), Access Control List, Bridge Protocol Data Unit (BPDU) Guard, and more.

  • MODEL:C1000-24FP-4G-L
  • Description:24x 10/100/1000 Ethernet PoE+ ports and 370W PoE budget, 4x 1G SFP uplinks
  • Gigabit Ethernet ports:24
  • Uplink interfaces:4 SFP
  • PoE+power budget:370W
  • Fanless:No
  • Dimensions (WxDxH in inches):17.5 x 13.59 x 1.73
  • CPU:ARM v7 800 MHz
  • DRAM:512 MB
  • Flash memory:256 MB
  • Forwarding bandwidth:28 Gbps
  • Switching bandwidth:56 Gbps
  • Forwarding rate(64—byte L3 packets):41.67 Mpps
