C9115AXI-EWC

Cisco / Access Point

C9115AXI-EWC

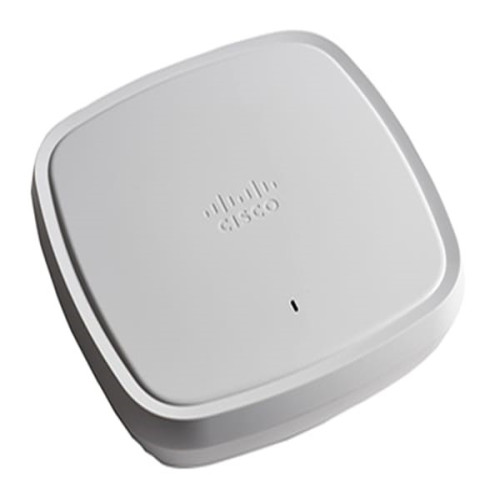

Cisco C9115AXI-EWC Access Point

Key Features
  • Wi-Fi 6 4x4 MU-MIMO — Up to 5.38 Gbps with OFDMA, Beamforming & BSS Coloring for high-density environments
  • Embedded Wireless Controller (EWC) — Can manage up to 100 APs without separate controller
  • 2.5 Gbps Multigigabit Ethernet — Full performance with 802.3at PoE+ or higher
  • Internal Antennas — 2.4 GHz (3 dBi) + 5 GHz (4 dBi) for excellent indoor coverage
Brand Cisco
Category Access Point
Model C9115AXI-EWC
Availability In Stock
General
Device Type Wi-Fi 6 802.11ax Indoor Ceiling/Wall Mount Access Point with Embedded Wireless Controller (EWC)
Color White
Wireless
WiFi Standard IEEE 802.11a/b/g/n/ac/ax (Wi-Fi 6)
Wireless Speed AX3000+ (up to 5.38 Gbps PHY rate)
Data Rate 2.4 GHz: Up to 574 Mbps (4x4), 5 GHz: Up to 4800 Mbps (4x4)
Transmission Power Up to 23 dBm (varies by region and band)
Antenna Type Internal Omni-directional Antennas
Antenna Gain 2.4 GHz: 3 dBi, 5 GHz: 4 dBi
Coverage Area Ideal for large rooms/offices (up to 200–300 m² depending on environment)
Physical
Dimensions 203 × 203 × 38 mm (8.0 × 8.0 × 1.5 in.)
Interface
LAN Port 1 × 100/1000/2500 Multigigabit Ethernet (RJ45, IEEE 802.3bz)
LAN Port Speed 2.5 Gbps
Reset Button Yes
LED Indicator Yes (Multi-color Status LED)
PoE
PoE Support IEEE 802.3at (PoE+), 802.3bt (UPOE) compatible
Security
Wireless Encryption WPA2, WPA3, WPA2/3 Mixed
MAC Filtering Yes
MU-MIMO Support Yes (4x4 downlink MU-MIMO)
Features
VLAN Yes
Access Point Mode Yes
Repeater Mode Yes (FlexConnect)
Mesh Support Yes (Cisco Mesh)
Beamforming Yes (802.11ax Beamforming)
Network
Frequency Band Dual-Band (2.4 GHz + 5 GHz)
Environment
Operating Temperature 0°C ~ 50°C
Humidity 10% ~ 90% (non-condensing)
Others
Certification CE, FCC, RoHS, UL
Package Content 1 × Cisco C9115AXI-EWC Access Point, Mounting Bracket, Quick Start Guide
Warranty & Support
Warranty 1 Year Official Warranty
