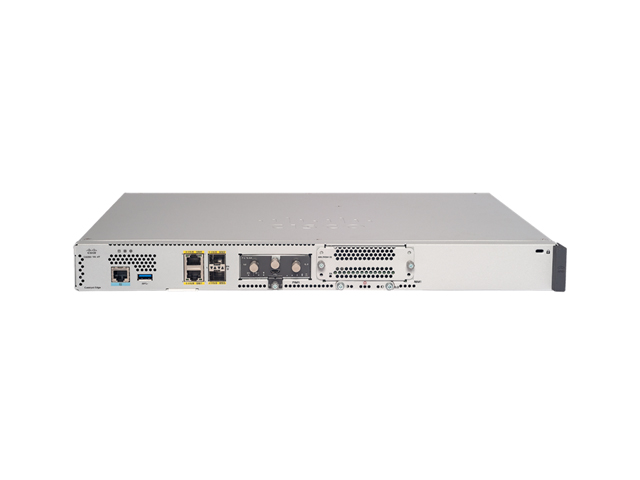

The Cisco Catalyst C8200-1N-4T is a compact, powerful enterprise edge router featuring 4x 1G WAN ports, 1 NIM slot, and advanced SD-WAN capabilities. Ideal for high-performance, secure, and scalable branch connectivity.
• Part Number: C8200-1N-4T
• Description: C8200 1RU with 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
• Dimensions (H x W x D): 1.73 x 17.25 x 11.8 in (4.39 x 43.81 x 29.97 cm)
• Rack Units (RU): 1RU
• Chassis Weight: 10 lb (4.54 kg)
• Input Voltage: AC: 90 to 264 VAC
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -40° to 150°F (-40° to 70°C)
• Acoustics - Sound Pressure (Typical/Max): 54 dBA / 69 dBA
• Acoustics - Sound Power (Typical/Max): 68 dBA / 80 dBA
• Relative Humidity Operating: 5% to 85% (noncondensing)
• Relative Humidity Storage: 5% to 95% (noncondensing)
• Altitude: 0 to 10,000 feet (0 to 3050 meters)
• MTBF (Mean Time Between Failures): 692,577 hours
• Number of IPsec SVTI Tunnels: 1,500
• Number of ACLs per System: 4,000
• Number of IPv4 ACEs: 72,000
• Number of IPv4 Routes: 800K with default 4GB, up to 4M with 32GB
• Number of IPv6 Routes: 800K with default 4GB, up to 4M with 32GB
• Number of Queues: 8,000
• Number of NAT Sessions: 600K with default 4GB, up to 2M with 32GB
• Number of Firewall Sessions: 512,000
• Number of VRFs: 4,000
• IPv4 Forwarding Throughput (1400 Bytes): Up to 3.8 Gbps
• IPsec Throughput (1400 Bytes): Up to 500 Mbps
• IPsec Throughput (IMIX): 400 Mbps
• Memory (DRAM) Default: 8 GB
