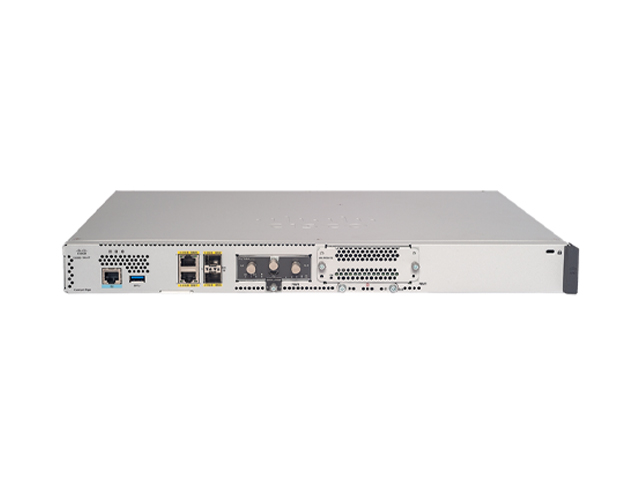

Cisco Catalyst C8200L-1N-4T is a high-performance enterprise edge router offering 4x 1G WAN ports, secure VPN support, scalable routing, and robust NAT/firewall performance, perfect for SD-WAN and branch deployments.
• Model: C8200L-1N-4T
• Description: C8200L 1RU with 1 NIM slot and 4x 1 Gigabit Ethernet WAN ports
• Dimensions (H x W x D): 1.73 x 17.25 x 11.8 in (4.39 x 43.81 x 29.97 cm)
• Rack Units (RU): 1RU
• Chassis Weight: 10 lb (4.54 kg)
• Input Voltage: AC: 90 to 264 VAC
• Operating Temperature: 32° to 104°F (0° to 40°C)
• Storage Temperature: -40° to 150°F (-40° to 70°C)
• Acoustics - Sound Pressure (Typical/Max): 54 dBA / 69 dBA
• Acoustics - Sound Power (Typical/Max): 68 dBA / 80 dBA
• Relative Humidity (Operating): 5% to 85% (noncondensing)
• Relative Humidity (Storage): 5% to 95% (noncondensing)
• Altitude: 0 to 10,000 feet (0 to 3050 meters)
• MTBF (Mean Time Between Failures): 692,577 hours
• Number of IPsec SVTI Tunnels: 2,500
• Number of ACLs per System: 4,000
• Number of IPv4 ACEs: 72,000
• Number of IPv4 Routes: 1.6M with default 8GB, up to 4M with 32GB
• Number of IPv6 Routes: 1.5M with default 8GB, up to 4M with 32GB
• Number of Queues: 8,000
• Number of NAT Sessions: 1.2M with default 8GB, up to 2M with 32GB
• Number of Firewall Sessions: 512,000
• Number of VRFs: 4,000
• IPv4 Forwarding Throughput (1400 Bytes): Up to 3.8 Gbps
• IPsec Throughput (1400 Bytes): Up to 1 Gbps
• IPsec Throughput (IMIX): 900 Mbps
• Memory (DRAM) Default: 4 GB
