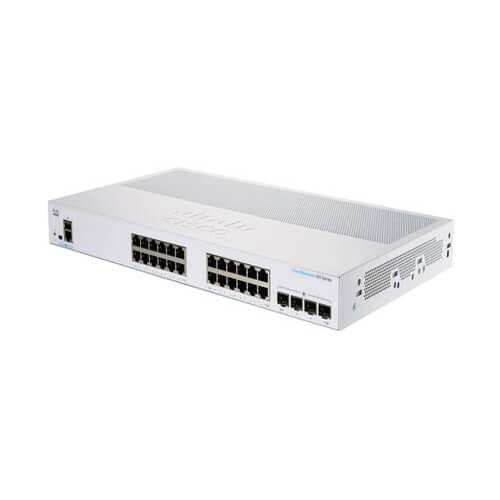

Cisco CBS350-24T-4X Click to zoom
Promotion
Cisco / Managed switch

Cisco CBS350-24T-4X

Cisco CBS350-24T-4X Cisco Small Business 350 Series

Key Features
  • 24× Gigabit Ethernet RJ45 ports + 4× 10G SFP+ uplink ports
  • 128 Gbps switching capacity and 95.23 Mpps forwarding rate
  • Managed Layer 2/3 switch with advanced security, VLAN, QoS & stacking support
  • Fanless design, low power consumption, 1U rackmount
Brand Cisco
Category Managed switch
Model Cisco CBS350-24T-4X
Availability In Stock
General
Switch Type Managed Gigabit Ethernet Switch
Layer L2 / L3 Lite
Form Factor 1U Rackmount
Ports
Total Ports 28
RJ45 Ports 24
Gigabit Ports 24
SFP Ports 4 × 10G SFP+
Uplink Ports 4 × 10G SFP+
Console Port Yes (RJ45 + USB Mini)
PoE
PoE Support No
PoE Standard N/A
PoE Ports N/A
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 128 Gbps
Forwarding Rate 95.23 Mpps
MAC Address Table 16K
Jumbo Frame Supported
Features
VLAN Yes (802.1Q)
QoS Yes
Link Aggregation Yes
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X Yes
Loop Protection Yes (STP/RSTP/MSTP)
Management
Web UI Yes
Cloud Management Yes (Cisco Business Dashboard)
SNMP Yes
CLI Yes
Plug & Play Yes (Zero Touch Provisioning)
Power
Power Supply Internal AC 100-240V
Power Consumption ~27.5W (typical)
Lightning Protection N/A
Physical
Dimensions 445 × 240 × 44 mm (17.5 × 9.45 × 1.73 in)
Weight ≈ 2.78 kg (6.13 lbs)
Mounting Rackmount
Fan Fanless
Environment
Operating Temperature -5°C to +50°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X
Warranty & Support
Warranty 1 Year Official Warranty
