Cisco CBS350-48P-4G

Cisco / Managed switch

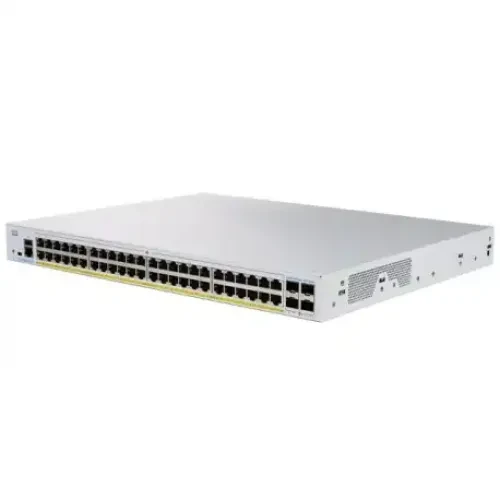

Cisco CBS350-48P-4G

Cisco CBS350-48P-4G Cisco Small Business 350 Series

Key Features
  • 48× Gigabit Ethernet PoE+ ports with 370W PoE budget
  • 4× 1G SFP uplink ports
  • 104 Gbps switching capacity and 77.38 Mpps forwarding rate
  • Managed Layer 2/3 switch with advanced security, VLAN, QoS & stacking support
Brand Cisco
Category Managed switch
Model Cisco CBS350-48P-4G
Availability In Stock
General
Switch Type Managed Gigabit Ethernet PoE+ Switch
Layer L2 / L3 Lite
Form Factor 1U Rackmount
Ports
Total Ports 52
RJ45 Ports 48
Gigabit Ports 48
SFP Ports 4 × 1G SFP
Uplink Ports 4 × 1G SFP
Console Port Yes (RJ45 + USB Mini)
PoE
PoE Support Yes
PoE Standard IEEE 802.3af / 802.3at (PoE+)
PoE Ports 48
PoE Budget 370W
Max Power per Port 30W
Performance
Switching Capacity 104 Gbps
Forwarding Rate 77.38 Mpps
MAC Address Table 16K
Jumbo Frame Supported
Features
VLAN Yes (802.1Q)
QoS Yes
Link Aggregation Yes
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X Yes
Loop Protection Yes (STP/RSTP/MSTP)
Management
Web UI Yes
Cloud Management Yes (Cisco Business Dashboard)
SNMP Yes
CLI Yes
Plug & Play Yes (Zero Touch Provisioning)
Power
Power Supply Internal AC 100-240V
Power Consumption ~60W (without PoE), up to ~452W (with full PoE)
Lightning Protection N/A
Physical
Dimensions 445 × 350 × 44 mm
Weight ≈ 4.0 kg
Mounting Rackmount
Fan With Fan
Environment
Operating Temperature -5°C to +50°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X
Warranty & Support
Warranty 1 Year Official Warranty
