Cisco CBS350-8S-E-2G

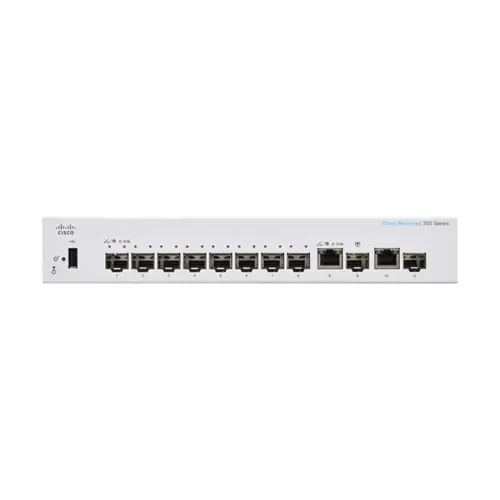

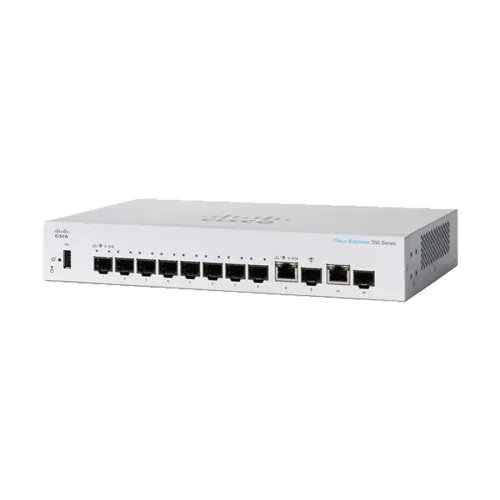

Cisco CBS350-8S-E-2G 10-Port Gigabit Managed Switch

Key Features
  • 8× Gigabit SFP ports + 2× Gigabit Combo (RJ45/SFP) ports
  • 20 Gbps switching capacity and 14.88 Mpps forwarding rate
  • Managed Layer 2/3 switch with advanced VLAN, QoS, Security & stacking support
  • Fanless compact design, ideal for fiber optic deployments
Brand Cisco
Category Managed switch
Model Cisco CBS350-8S-E-2G
Availability In Stock
General
Switch Type Managed Gigabit Fiber Switch
Layer L2 / L3 Lite
Form Factor Desktop / 1U Rackmount
Ports
Total Ports 10
RJ45 Ports 2 (Combo)
Gigabit Ports 10
SFP Ports 10 (8 Pure SFP + 2 Combo)
Uplink Ports 2 × Gigabit Combo (RJ45/SFP)
Console Port Yes (RJ45 + USB Mini)
PoE
PoE Support No
PoE Standard N/A
PoE Ports None
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 20 Gbps
Forwarding Rate 14.88 Mpps
MAC Address Table 16K
Jumbo Frame Supported
Features
VLAN Yes (802.1Q)
QoS Yes
Link Aggregation Yes
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X Yes
Loop Protection Yes (STP/RSTP/MSTP)
Management
Web UI Yes
Cloud Management Yes (Cisco Business Dashboard)
SNMP Yes
CLI Yes
Plug & Play Yes (Zero Touch Provisioning)
Power
Power Supply Internal AC 100-240V
Power Consumption ~11.1W (110V) / ~11.9W (220V)
Lightning Protection N/A
Physical
Dimensions 268 × 185 × 44 mm (approx)
Weight ≈ 1.4 kg
Mounting Desktop / Rackmount
Fan Fanless
Environment
Operating Temperature -5°C to +50°C
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1X
Warranty & Support
Warranty 1 Year Official Warranty
