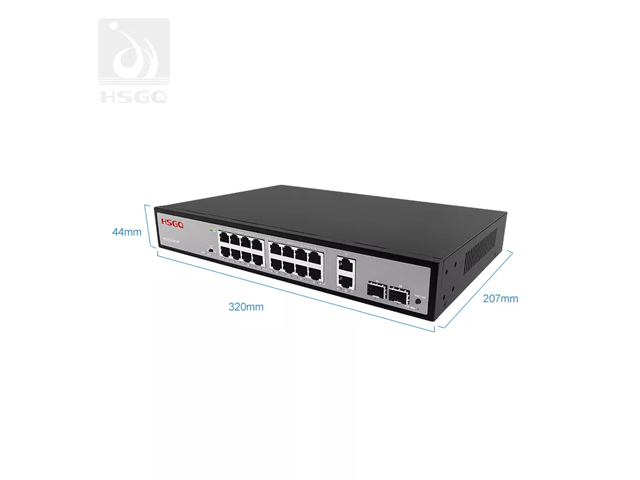

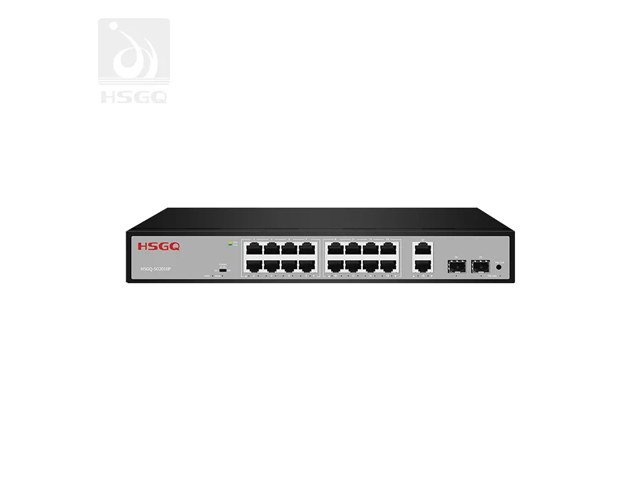

HSGQ-SG2016P 16-Port Gigabit PoE Switch for CCTV

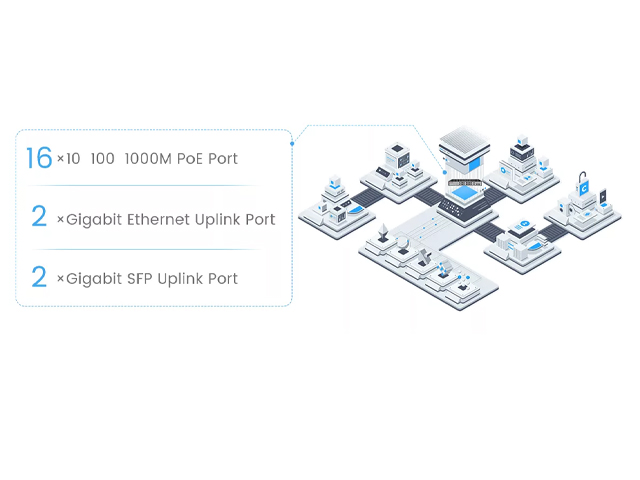

The HSGQ-SG2016P is a high-performance 20-port Gigabit unmanaged PoE switch specially designed for IP camera surveillance projects, security systems, and medium-sized enterprise networks. It features 16×Gigabit PoE ports and 4×Gigabit uplink ports (2 RJ45 + 2 SFP), delivering full Gigabit speed with powerful power delivery for modern high-resolution cameras and devices.

Powerful Gigabit PoE Performance

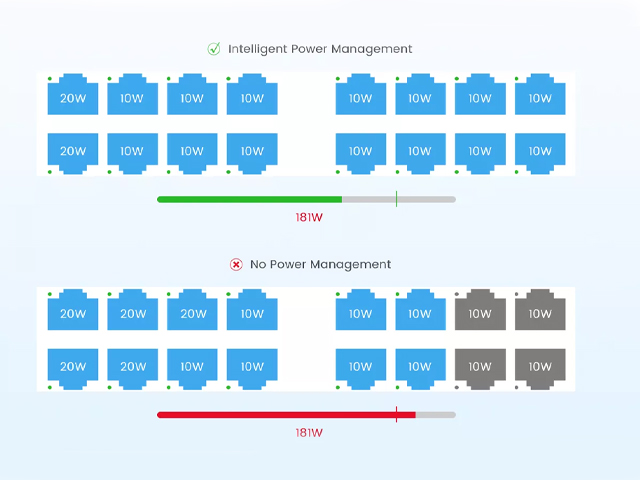

All 16 PoE ports support full Gigabit speed and IEEE 802.3af/at standards with up to 30W per port and a total PoE budget of 180W. This makes it perfect for powering multiple PTZ cameras, 4K IP cameras, wireless access points, and other high-power PoE devices.

Flexible Uplink & DIP Switch Modes

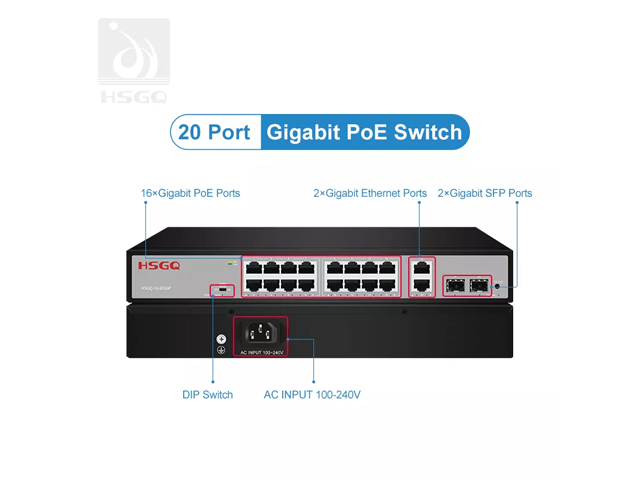

It offers 2×Gigabit RJ45 and 2×Gigabit SFP uplink ports for high-bandwidth connection to NVRs or core switches. The built-in DIP switch supports Default and Extend modes. In Extend mode, it enables long-distance transmission up to 250 meters with AI PoE optimization.

Stable & Reliable Design

With a 40Gbps switching capacity, 8K MAC address table, and store-and-forward technology, the switch ensures smooth transmission of high-definition video streams. The fanless metal housing provides silent operation and excellent heat dissipation for continuous 24/7 surveillance use.

Easy Installation

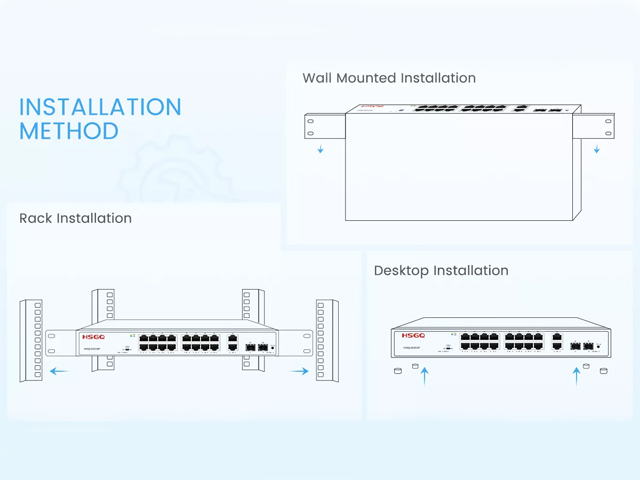

Plug-and-play design requires no configuration. It supports both desktop and standard 1U rackmount installation, making it highly flexible for different installation environments in CCTV projects.

The HSGQ-SG2016P is an ideal, cost-effective solution for medium to large-scale IP surveillance systems, smart buildings, schools, hotels, and enterprise security networks.
