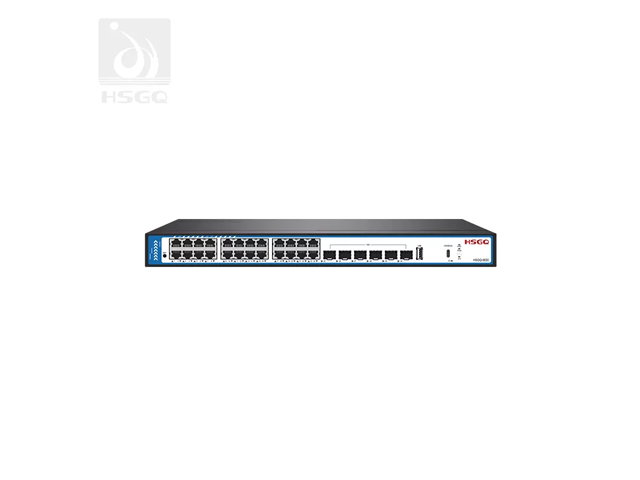

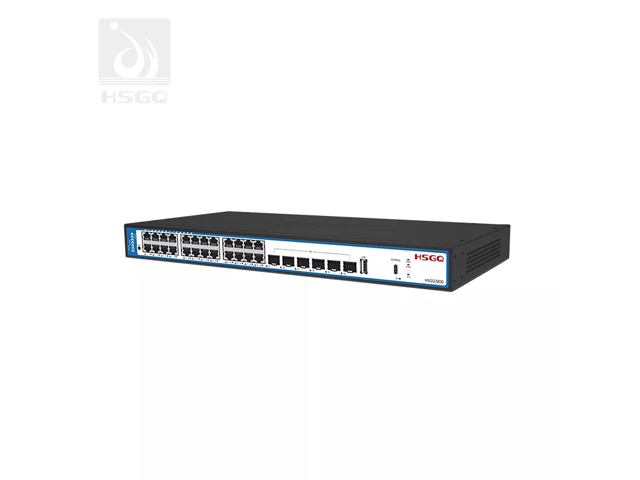

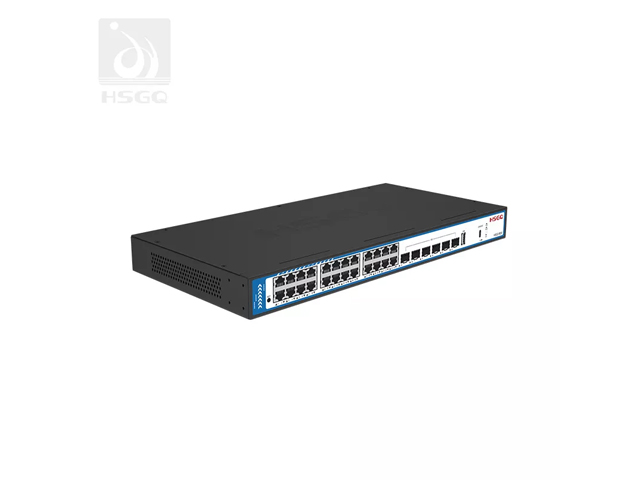

HSGQ 24*2.5GE PoE Switch Managed for Camera
|
Item |
HSGQ-5830 |
|
|

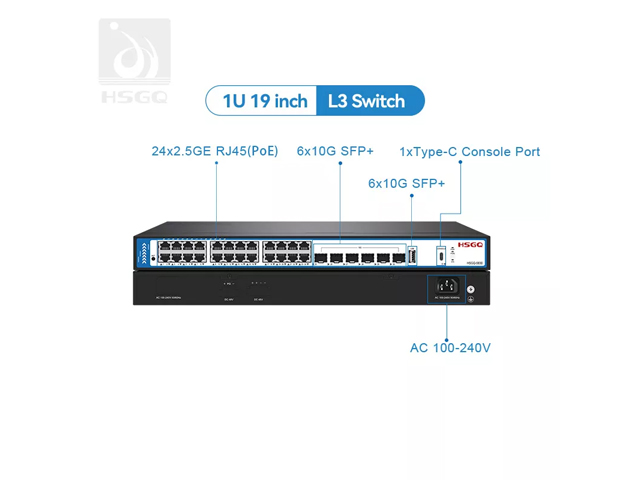

Interface |
||
|
Downlink Ports |
24*2.5GE RJ45 |
|
|
Uplink Ports |
6*10G SFP+ |
|
|
Console |
1*RS-232 （115200,8,N,1） |
|
|
USB |
1*USB 2.0 |
|
|
Switch Property |
||
|
Standards |
IEEE 802.3, IEEE 802.3u, IEEE 802.ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1D. |
|
|
Forwarding Modes |
Store and Forward |
|
|
Packet Buffer |
16Mbit |
|
|
MAC Table |
32k |
|
|
Switching Capacity |
240Gbps / non-blocking |
|
|
Packet Forwarding Rate |
178.56Mpps |
|
|
Jumbo Frame |
12KB |
|
|
Power Supply |
||
|
Input Voltage |
AC100V-240V，50Hz/60Hz |
|
|
Power Consumption |
< 48W |
|
|
Reliability |
||
|
ESD Protection |
8kV Contact Discharge, 15kV Air Discharge Standard: IEC61000-4-2 |
|
|
MTBF |
10W h |
|
|
MTBF Standards |
Telcordia SR-332，25℃ |
|
|
Operating Temperature |
-20℃~55℃ |
|
|
Storage Temperature |
-40℃~85℃ |
|
|
Operating Humidity |
5%~95%(Non-condensing) |
|
|
Physical Parameter |
||
|
Led Indicators |
2*power supply indicators |
|
|
1*system working indicator or PoE status indicator |
||
|
24*RJ45 status indicator |
||
|
6*optical port status indicator |
||
|
Reset Button |
Click change LED mode, press 3-10S reset user info, lPand password, long press >10s to reset the equipment |
|
|
Dimensions (W*D*H) |
442*260*44mm |
|
|
Net Weight |
2.85kG (Single power supply); 2.96kg (dual power supply) |
|
|
Material |
Stainless Steel |
|
|
Desktop/DIN-rail/wall mounted |
Desktop/rack-mounted |
|
