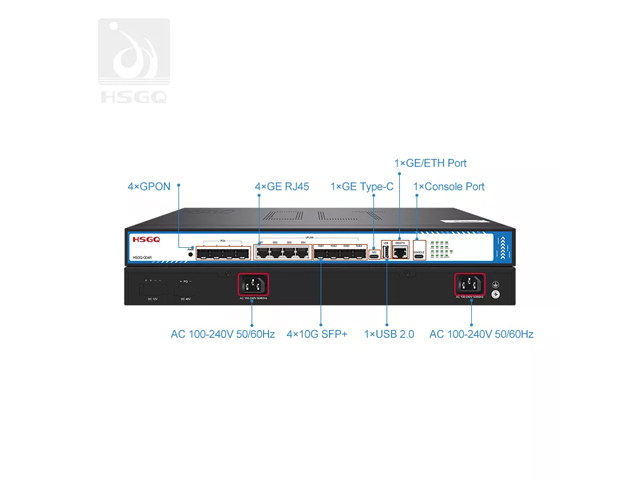

Interface

4×GPON

4x10/100/1000M RJ45

4x10G SFP+

1xGE Type-C

1×USB 2.0

1xGE/ETH

PON SFP

ITU-T G.984.2 GPON Class B+/C+/C++

Tx1490nm@2.488Gbps/Rx1310nm@1.244Gbps

Max Split Ratio 1:128

Switching Capacity

107Gbps

Forwarding Rate

79.61Mpps

Management

ETH/Console (Type-C)

Flash

32MB

DDR

512MB

Dimensions

442mm*260mm*44mm

Weight

<5kg

Standards

IEEE802.3 (10Base-T)

IEEE802.3u (100Base-TX)

IEEE802.3z (1000BASE-X)

IEEE802.3ab (1000Base-T)

IEEE802.1q (VLAN)

Environment

Working Temperature: -10°C~55°C

Storage Temperature: -40°C~85°C

Humidity: 5%~95% Non condensing

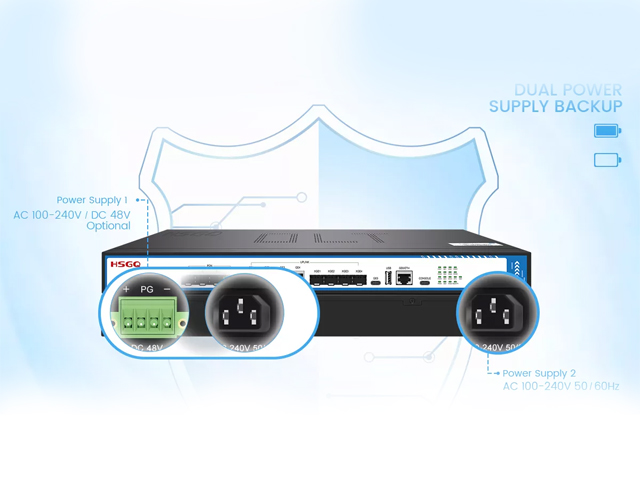

Power Supply

AC 100-240V 50/60Hz/DC 48V

Redundancy Design: AC+AC/AC+DC

Power Consumption

<50W

PON Features

DBA/Line/Service/TR069/SIP/Traffic Profile

ONT Deny List (blacklist)

Turn Off PON Port

P2P

Rough ONT detect

ONT Batch upgrade

IPHost

ONT WAN Configuration(Private)

ONT Port Configuration(Private)

Terminal access up to 20km on a single fiber

Cloud Management

Device List

Project Management

Version Release

License Management

Permission Management

User Management

Configuration and Monitoring

CLI, WEB, SNMP, NMS, CLOUD

Software and bootroom upgrade by TFTP and FTP

Ping and diagnosis

User, log, alarm management

L3 Function

Support IPv4/IPv6 Static Route

Support RIP/RIPNG/OSPF/OSPFV3 Dynamic Route

Support VRRPv2/VRRPV3

Support PIM SM/SSM

Support DHCP Server, DHCP Snooping and DHCP Relay

Support VLAN, QinQ and translation

Support at most 4094 VLAN

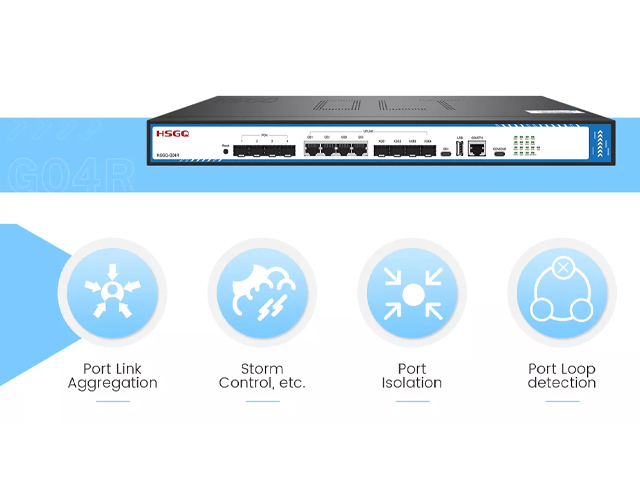

Support Port mirror

Support RSTP and MSTP (recover.time <1s)

Support Link aggregation(recover time <10ms)

Support Storm control

Support IGMP Snooping/proxy

Support MAC Black Hole

Support Port isolation

Support ACL access control based on data stream

QoS based on port, VlD, TOS and MAC address
