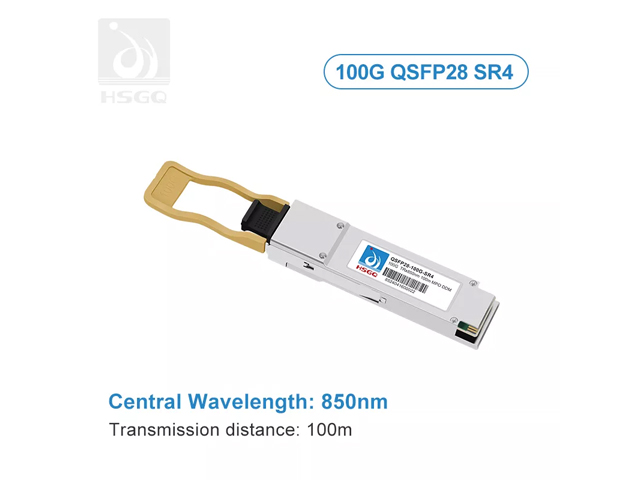

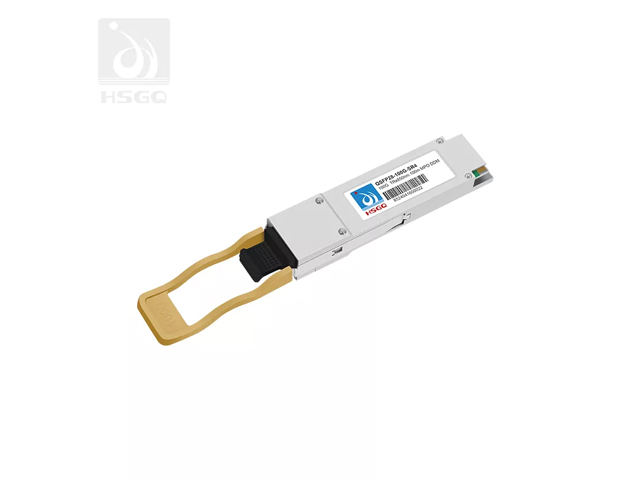

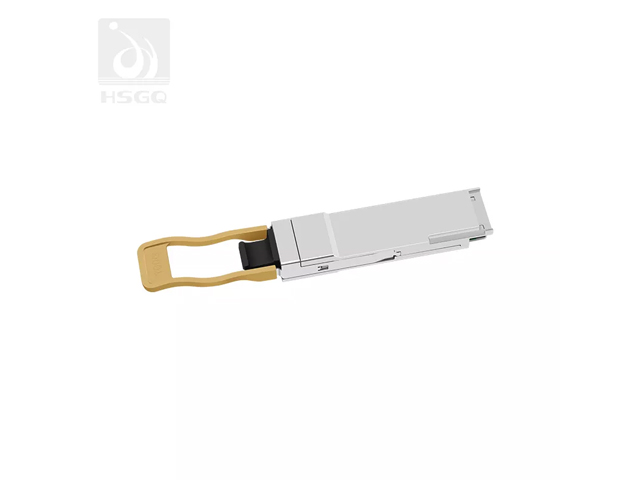

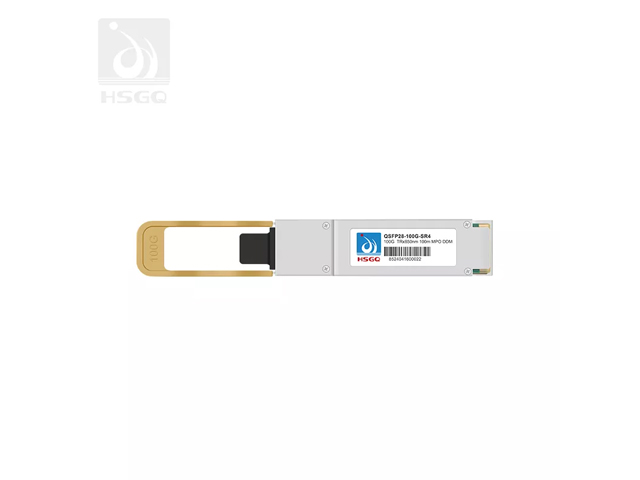

QSFP28-100G-SR4 100GBASE-SR4 MMF Transceiver
The QSFP28-100G-SR4 is a high-speed 100G optical transceiver module designed for short-range data center and enterprise networking. It uses 4 parallel lanes of multi-mode fiber with MPO-12 connector, delivering 100Gbps aggregate bandwidth up to 100 meters.
High-Speed Multi-Mode Connectivity
Supports 100G Ethernet with 4×25Gbps channels over OM3/OM4/OM5 multi-mode fiber. Ideal for high-density data center interconnects, server-to-switch, and switch-to-switch links.
Hot-Pluggable & Low Power
Hot-pluggable QSFP28 form factor with low power consumption (<3.5W typical). Compliant with IEEE 802.3bm and QSFP28 MSA standards.
Reliable Short-Range Solution
Provides up to 70m reach on OM3 and 100m on OM4/OM5 fiber with MPO-12 connector. Perfect for intra-data center connections requiring high bandwidth and low latency.
The QSFP28-100G-SR4 is a cost-effective and widely compatible solution for modern 100G data center networks.
