| User interface |
2 10/100/1000M RJ45 port 2.4GWiFi/5GWiFi 1*USB Port |
| PON |
EPON&GPON mode adaptive Interface Type:SC-UPC/SC-APC Security: ONU authentication mechanism Network coverage radius: 20KM
GPON:upstream 1.25Gbps/downstream 2.5Gbps Optical receive sensitivity:-7dBm--28dBm Continuous light power: 0.5dBm-+5dBm
EPON:upstream 1.25Gbps/downstream 1.25Gbps Opticalreceive sensitivity:-7dBm--27dBm Continuous light power: 0dBm-4dBm |
| Ethernet |
2*10/100/1000Mauto-negotiation Full/half duplex mode RJ45 connector Auto MDI/MDI-X 100m distance |
| Size | 160mm(L)X110mm(W) X25mm(H) |
| Environment |
Operating temperature:0℃~60℃ Operatinghumidity:10%~85% non-condensing Storage temperature:-40℃~80℃ Storage humidity:5%~95% non-condensing |
| Power supply |
12V1.5A DC powerinterface size:2.1mm/5.5mm |
| Power Consumption | <12W |
| POTS Port | 1*RJ11
Max 1km distance Balanced Ring,55V RMS |
| Man | WEB/TELNET/TR069/OMCI/OAM |

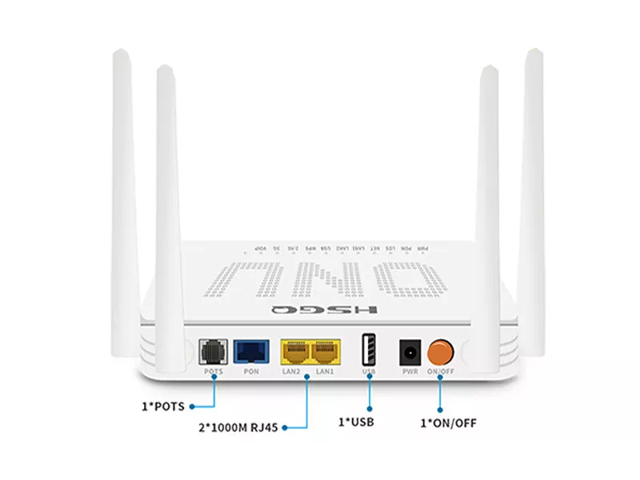

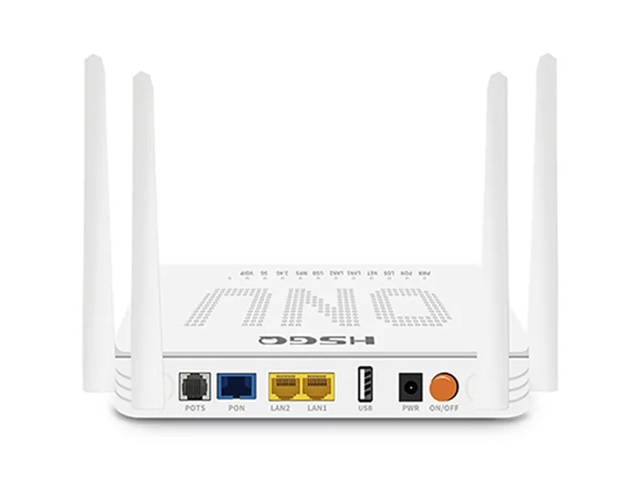

Product Interfaces
POWER
| Power status |
On: The ONU is power on Off: The ONU is Power off |
PON
| ONU Register |
On: Success to register to OLT Blinking: In process of registering to OLT Off: Fail to register to OLT |
LOS
| Optical Signals |
On: Optical link lower than receiver sensitivity Off: Optical in normal |
LAN
| LAN Port status |
On: Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up |
LAN2
| LAN Port status |
On: Ethernet connection is normal Blinking: Data is being transmitted Off: Ethernet connection is not set up |
USB
| USB Port status |
connection is normal connection is not set up |
2.4G
| WIFI |
On: Wi - Fi function Opens Blinking: Data is being transmitted Off: Wi - Fi function closes |
5G
| WIFI |
On: Wi - Fi function Opens Blinking: Data is being transmitted Off: Wi - Fi function closes |
WPS
| WPS |
On: Terminal has connected Blinking:Terminal is connecting Off: Terminal not connected |
NET
| Internet status |
On: ONU can access internet Off: ONU can not access internet |
