General
| Device Type |
Dual-Mode XPON SFP ONU Stick (GPON + EPON) |
| Form Factor |
SFP Stick (Plug-in Module) |
Optical
| SFP Type |
XPON ONU Stick (Dual Mode) |
| Connector Type |
SC/UPC (or SC/APC on request) |
| Optical Wavelength |
Tx: 1310nm / Rx: 1490nm |
| Transmission Distance |
Up to 20 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| TX Power |
0.5 ~ +5 dBm |
| RX Sensitivity |
-28 dBm |
Performance
| Data Rate |
GPON Mode: 2.488 Gbps Down / 1.244 Gbps Up EPON Mode: 1.25 Gbps Symmetric |
| Operating Mode |
Single Fiber, Dual Mode (Auto-detect GPON/EPON) |
Compatibility
| Compatible Devices |
Most GPON and EPON OLTs (Huawei, ZTE, Fiberhome, Solitine, etc.) Compatible with: Routers, Switches, ONTs, Cameras, Firewalls with SFP ports |
Physical
| Dimensions |
60 × 13.4 × 8.5 mm (Compact SFP Stick) |
| Weight |
~25 g |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 × HSGQ XPON Stick, Dust Cap, User Guide |
Warranty & Support
| Warranty |
1 Year Official Warranty |

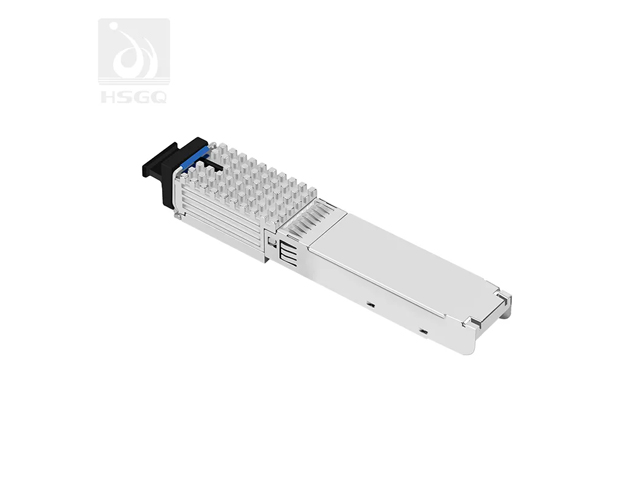

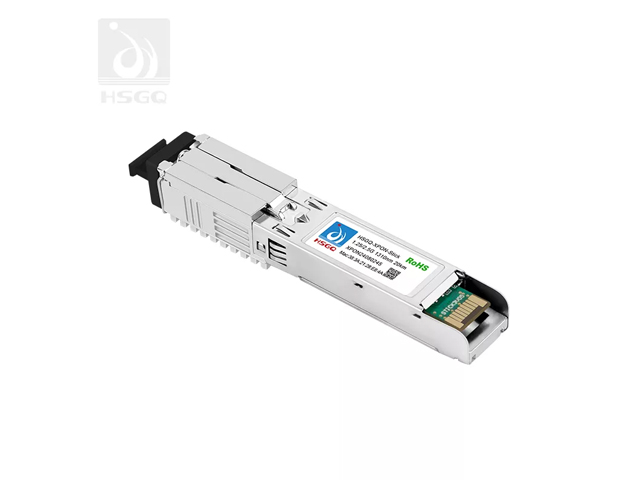

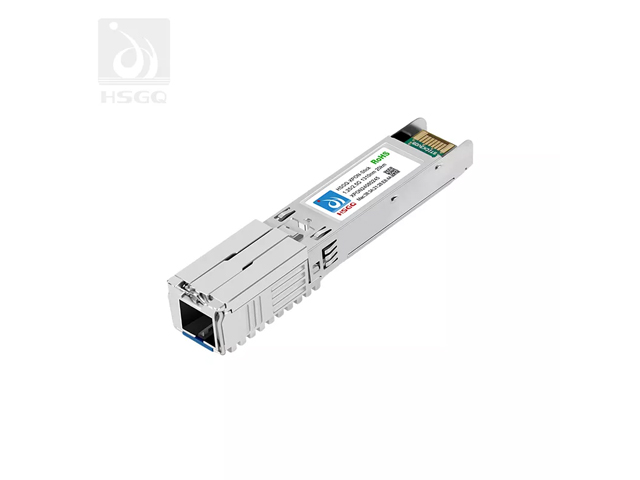

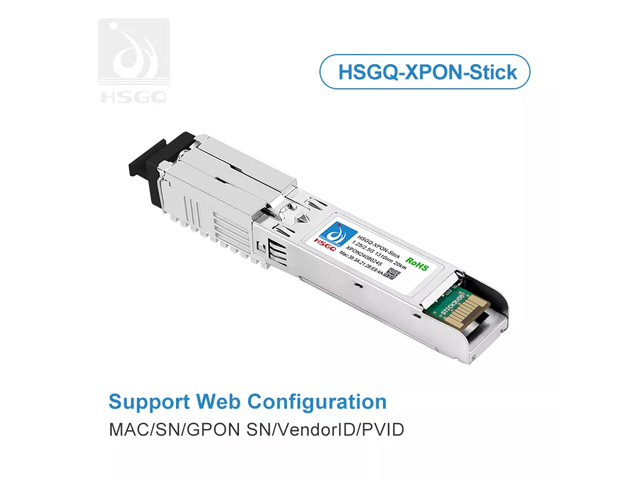

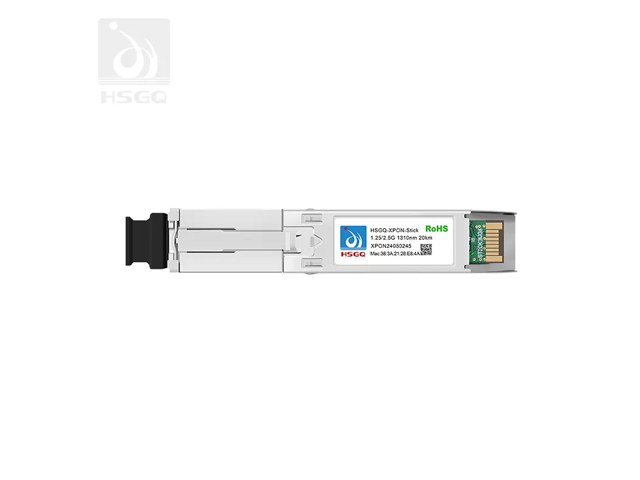

HSGQ XPON Stick Full Form Customized Dual-Mode SFP ONU
The HSGQ XPON Stick is a compact, high-performance dual-mode (GPON + EPON) SFP ONU module. It can be directly plugged into the SFP port of routers, switches, or other devices, providing flexible and convenient fiber optic access without needing a separate ONU box.
Dual-Mode XPON Technology
Automatically supports both GPON and EPON OLTs in one module, making it ideal for network upgrades and mixed environments.
Compact & Plug & Play
Ultra-small SFP stick design allows easy insertion into any SFP port. Supports up to 20km transmission distance on single-mode fiber with low power consumption.
Flexible & Customized Solution
Perfect for customized full-form solutions, hotels, offices, and specialized FTTH/FTTB deployments. High compatibility with major OLT brands.
The HSGQ XPON Stick is the most practical and space-saving solution for modern fiber access networks.
