MR-US6K

Marsriva / UPS

MR-US6K

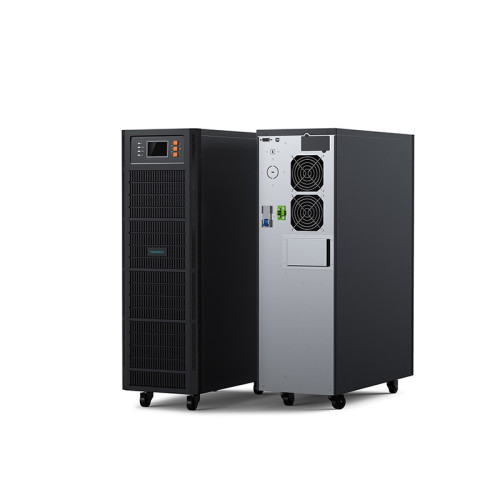

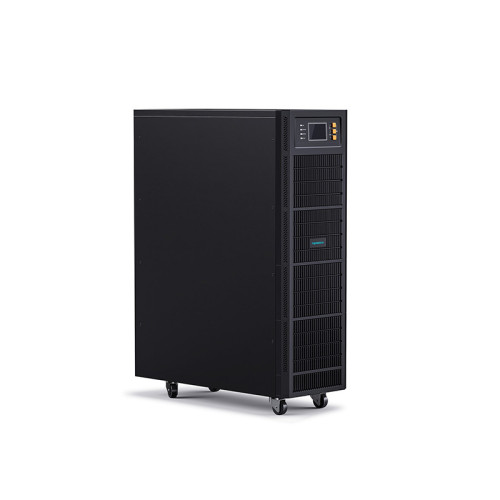

Marsriva MR-US6K On-Line UPS

Key Features
  • True Online Double Conversion with 0ms Transfer Time & Pure Sine Wave
  • 6KVA/6000W Output (PF 1.0) + High Efficiency up to 95.5%
  • Built-in 16×12V/7Ah batteries (192V DC) for reliable backup
  • LCD Display, RS232/USB/EPO, Intelligent Charging, Wide Input Range & 1 Year Warranty
Brand Marsriva
Category UPS
Model MR-US6K
Availability In Stock
General
UPS Type Online UPS (True Double Conversion, High Frequency, DSP Controlled)
Color Black
Power
Capacity 6KVA
Rated Power 6KW (Power Factor 1.0)
Input Voltage 208/220/230/240 VAC (Single Phase)
Output Voltage 208/220/230/240 VAC (±1%)
Output Frequency 50/60Hz ±0.1% (Battery Mode)
Waveform Type Pure Sine Wave
Transfer Time 0 ms (to Battery), 4 ms (to Bypass)
Efficiency Up to 95.5% (AC Mode full load)
Battery
Battery Type Sealed Lead-Acid, Maintenance-Free
Battery Capacity 12V/7Ah or 9Ah × 16 pcs (Internal)
Battery Quantity 16
Backup Time Depends on load (typically 5–10+ minutes at full load)
Battery Voltage 192V DC
Interface
AC Output Port Terminal Block (L+N+PE) + Sockets
DC Output Port None
USB Port Yes (USB + RS232, EPO, Smart Card Slot)
PoE Output No
Connector Type Terminal Block
LED Indicator Yes (Multifunction LCD Display)
Power Button Yes
Protection
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes
Overheat Protection Yes
Features
Auto Restart Yes (Auto restart when AC recovers)
Cold Start Yes
AVR Support Not required (True Online Double Conversion)
Silent Mode Low noise (<50dB)
Smart Charging Yes (Intelligent 3-stage charging, adjustable current)
Physical

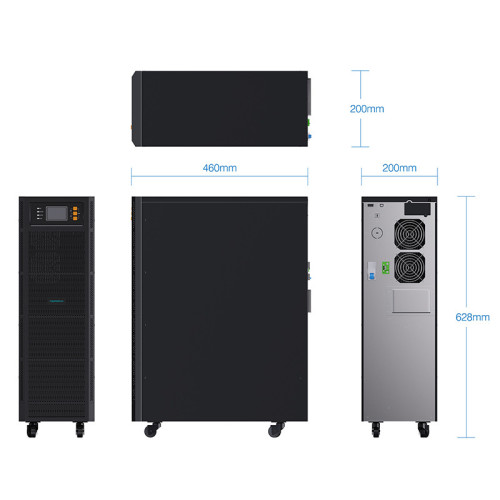

Dimensions 460 × 190 × 615 mm (Tower)
Weight Approx. 42.5 – 50.6 kg (with batteries)
Material Metal Housing
Warranty & Support
Warranty 1 Year Official Warranty
