EW2110-800

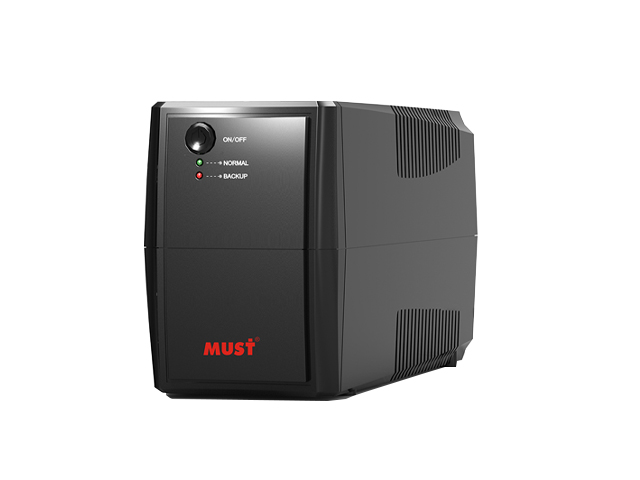

Must EW2110-800 800VA/480W Line Interactive UPS

Key Features

800VA/480W capacity with Smart Line Interactive topology & AVR
12V/9Ah sealed lead-acid battery with 4-6 hours recharge time
Fast 2-6ms transfer time, AVR (Boost & Buck), Cold Start & Auto Restart
LED Indicators, Overload, Short Circuit, Surge & Overcharge Protection + 1 Year Warranty

Brand Must

Category UPS

Model EW2110-800

Availability In Stock

General

UPS Type	Smart Line Interactive UPS (with AVR)
Color	Black

Power

Capacity	800VA
Rated Power	480W
Input Voltage	220V ~ 240V AC (or 110/120V variant)
Output Voltage	220V ~ 240V AC (±10%)
Output Frequency	50Hz / 60Hz ±0.5 Hz (Auto sensing)
Waveform Type	Simulated Sine Wave / PWM (Battery Mode)
Transfer Time	Typical 2–6 ms, 10 ms max
Efficiency	High efficiency with AVR

Battery

Battery Type	Sealed Lead-Acid, Maintenance-Free
Battery Capacity	12V / 9Ah × 1 pc
Battery Quantity	1
Backup Time	Depends on load (typically 5–15 minutes at full load, longer at lower loads)
Battery Voltage	12V DC

Interface

AC Output Port	2–3 Universal Sockets
DC Output Port	None
USB Port	Optional (RJ45/USB in some variants)
PoE Output	No
Connector Type	AC Input + AC Outputs
LED Indicator	Yes (LED Status Indicators)
Power Button	Yes

Protection

Features

Auto Restart	Yes (Auto restart when AC recovers)
Cold Start	Yes
AVR Support	Yes (Automatic Voltage Regulation – Boost & Buck)
Silent Mode	Yes (Mute / Silence function available)
Smart Charging	Yes (Intelligent offline charging)

Physical

Dimensions	Approx. 345 × 146 × 162 mm (similar to series mid-range models)
Weight	Approx. 4.5 – 6 kg
Material	Plastic Housing

Warranty & Support

Warranty

1 Year Official Warranty (Battery as per policy)

Must EW2110-800 800VA/480W Smart Line Interactive UPS
