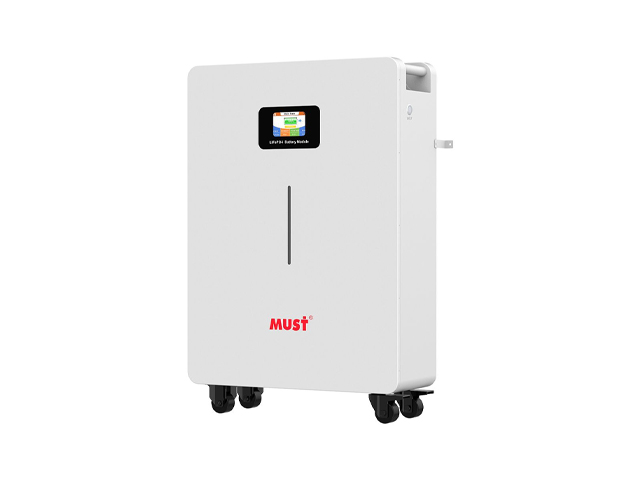

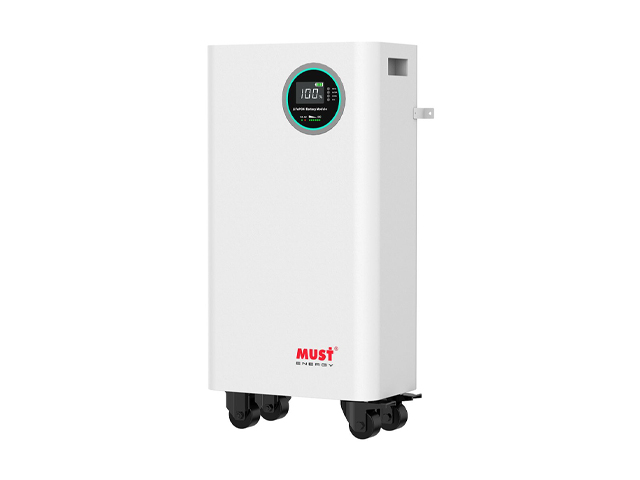

View 1 View 2 View 3
Promotion
Must / Battery

LP16-48100

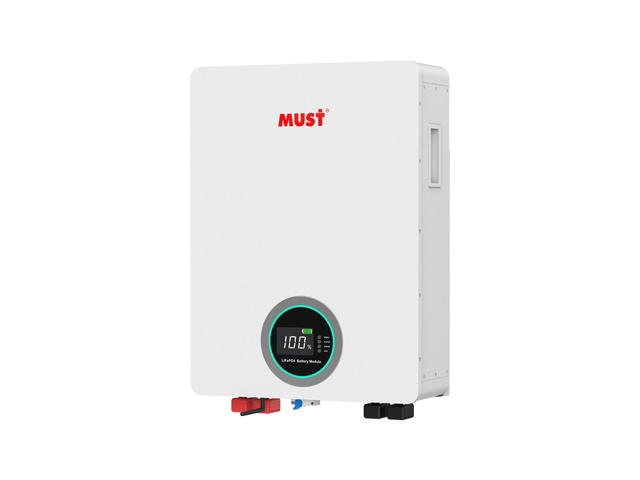

Must LP16-48100 LiFePO4 Battery

Key Features
  • 51.2V 100Ah / 5120Wh — High capacity LiFePO4 battery for 48V systems
  • 6000+ Cycle Life — Long-lasting performance at 80% DOD
  • Intelligent BMS Protection — Full safety protection system
  • Parallel Support — Expandable up to 15 units with CAN/RS485 communication
Brand Must
Category Battery
Model LP16-48100
Availability In Stock
General
Battery Type LiFePO4 (Lithium Iron Phosphate)
Color White / Grey
Power
Battery Capacity 100Ah / 5120Wh
Input Voltage Not Specified
Output Power Max continuous ~5kW
Rechargeable Yes
Physical
Dimensions Approx. 442 × 625 × 177 mm (or 580 × 490 × 145 mm depending on version)
Weight Approx. 44–45 kg
Features
Charging Cycles 6000+ cycles @ 80% DOD
Protection System Built-in BMS (Over-charge, Over-discharge, Over-current, Short-circuit, Temperature protection)
Compatibility
Compatible Devices Hybrid inverters, Solar ESS, Off-grid systems (48V systems)
Environment
Operating Temperature Charge 0~45°C / Discharge -20~55°C
Storage Temperature -5~35°C
Others
Package Content 1 × Battery Module, Communication Cables, User Manual
Warranty & Support
Warranty 1 Years Official Warranty
