General
| Inverter Type |
Hybrid Solar Inverter (Single Phase) |
| Color |
White / Grey |
Power
| Rated Power |
6000W / 6000VA |
| Peak Power |
Approx. 2× rated (short duration) |
| Input Voltage |
230 VAC |
| Output Voltage |
230 VAC |
| Output Frequency |
50/60 Hz |
| Waveform Type |
Pure Sine Wave |
| Efficiency |
Max 97.5% / Euro 96.5% |
Battery
| Battery Type Support |
Lead-acid / Lithium (LiFePO4) |
| Battery Voltage |
48V DC (Range 40–64V) |
| Charging Current |
Max 135A |
Protection
| Overload Protection |
Yes |
| Short Circuit Protection |
Yes |
| Over Voltage Protection |
Yes |
| Low Voltage Protection |
Yes |
| Over Temperature Protection |
Yes |
Features
| LCD Display |
4.3-inch Touch Screen |
| Auto Restart |
Yes |
| UPS Mode |
Yes |
| Solar Compatibility |
Yes (Dual MPPT) |
Interface
| AC Output Socket |
AC Terminals |
| USB Port |
Yes |
| LED Indicator |
Yes |
Physical
| Dimensions |
360 × 500 × 238 mm |
| Weight |
22 kg |
Environment
| Operating Temperature |
-25°C ~ +60°C (derating >45°C) |
Others
| Package Content |
1 × Inverter, Wall Mount Kit, User Manual, Communication Cables |
Warranty & Support
| Warranty |
1 Year Official Warranty |

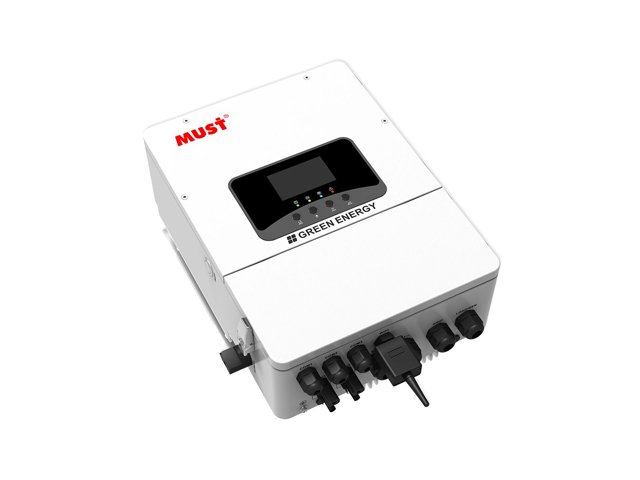

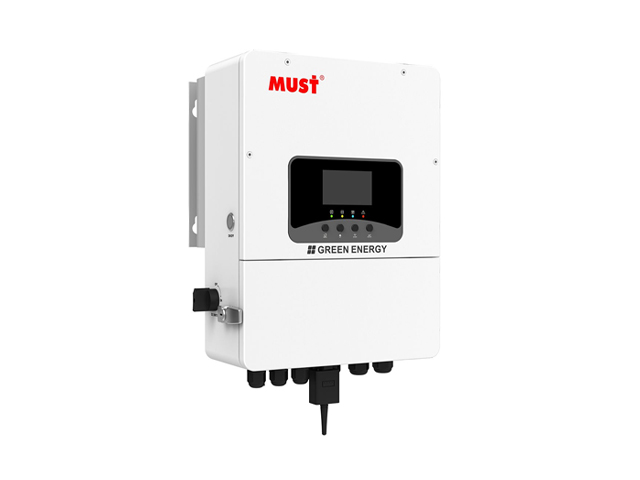

Must PH11-6KL1-EU-G2 6kW Hybrid Solar Inverter
The Must PH11-6KL1-EU-G2 is a high-performance single-phase hybrid solar inverter designed for residential energy storage systems. With IP66 protection, dual MPPT, and a 4.3-inch touch screen, it offers reliable and flexible solar + battery + grid operation.
6000W Hybrid Power with Dual MPPT
Delivers 6000W continuous pure sine wave output. Supports up to 9000W PV input with dual MPPT trackers (Max DC voltage 550V) for maximum solar harvesting efficiency.
Powerful 48V Battery Charging
Compatible with lead-acid and lithium batteries. Maximum charging/discharging current of 135A ensures fast battery charging and high backup power capability.
Smart & Outdoor Ready
IP66 waterproof design for outdoor installation, 4.3-inch touch screen, WiFi monitoring, and parallel support up to 9 units. Ideal for modern hybrid solar systems.
The Must PH11-6KL1-EU-G2 is a reliable, high-efficiency hybrid inverter for residential solar energy storage applications.
