PH91-3.6KL1EU-HM

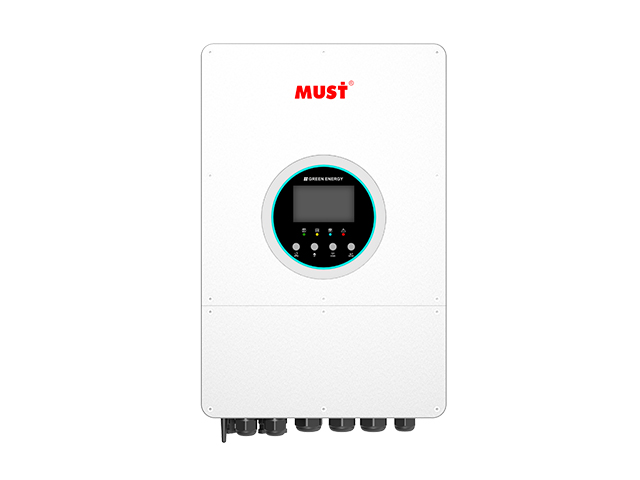

Must PH91-3.6KL1EU-HM 3.6kW Hybrid Solar Inverter

Key Features
  • 3600W Pure Sine Wave — Reliable hybrid power for home use
  • Dual MPPT + 48V Battery — Efficient solar charging & lithium/lead-acid support
  • IP66 + 4.3" Touch Screen — Outdoor ready with smart control
  • Parallel up to 10 Units — Expandable system with WiFi monitoring
Brand Must
Category Inverter
Model PH91-3.6KL1EU-HM
Availability In Stock
General
Inverter Type Hybrid Solar Inverter (Single Phase)
Color White / Grey
Power
Rated Power 3600W / 3600VA
Peak Power Approx. 2× rated (short duration)
Input Voltage 230 VAC
Output Voltage 230 VAC
Output Frequency 50/60 Hz
Waveform Type Pure Sine Wave
Efficiency Up to 97.5% (typical for series)
Battery
Battery Type Support Lead-acid / Lithium (LiFePO4)
Battery Voltage 48V DC
Charging Current High (series supports strong charge/discharge)
Protection
Overload Protection Yes
Short Circuit Protection Yes
Over Voltage Protection Yes
Low Voltage Protection Yes
Over Temperature Protection Yes
Features
LCD Display 4.3-inch Touch Screen
Auto Restart Yes
UPS Mode Yes
Solar Compatibility Yes (Dual MPPT)
Interface
AC Output Socket AC Terminals
USB Port Yes
LED Indicator Yes
Physical
Dimensions Typical for series (wall-mounted, compact)
Weight Approx. 20–25 kg (series range)
Environment
Operating Temperature -25°C ~ +60°C (derating above 45°C)
Others
Package Content 1 × Inverter, Wall Mount Kit, User Manual, Communication Cables
Warranty & Support
Warranty 1 Year Official Warranty
