PV18-4024 PRO

Must / Inverter

PV18-4024 PRO

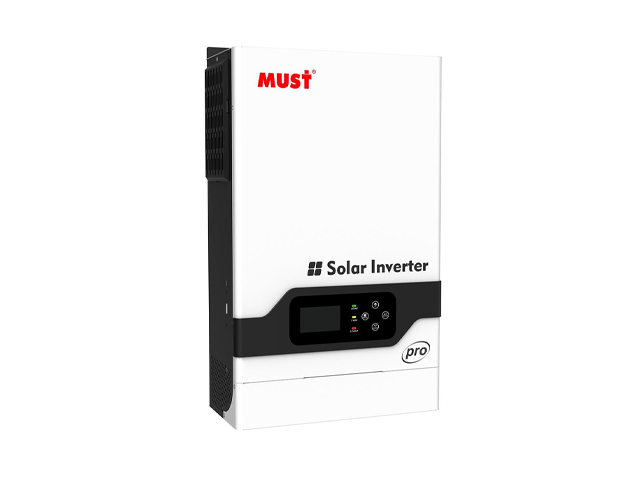

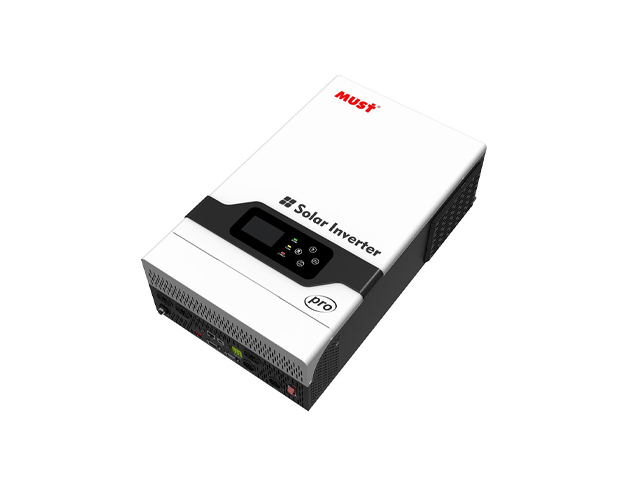

Must PV18-4024 PRO Hybrid Solar Inverter

Key Features
  • 4000W Pure Sine Wave — Clean power with 7000W peak for heavy loads
  • 100A MPPT Solar Charger — Supports high-voltage PV arrays (up to 450V VOC)
  • 24V Battery Compatible — AGM, GEL, Lead-Acid & LiFePO4 with CAN BMS support
  • Smart Dual Output + WiFi — Priority load control, UPS mode & remote monitoring
Brand Must
Category Inverter
Model PV18-4024 PRO
Availability In Stock
General
Inverter Type Hybrid Solar Inverter (High Frequency)
Color Black / Grey
Power
Rated Power 4000W / 4000VA
Peak Power 7000W
Input Voltage 230 VAC (Range: 170–280 VAC UPS mode)
Output Voltage 230 VAC ±5%
Output Frequency 50/60 Hz (Auto detection)
Waveform Type Pure Sine Wave
Efficiency Up to 93%
Battery
Battery Type Support AGM / GEL / Lead-Acid / LiFePO4 / Li-ion
Battery Voltage 24V DC
Charging Current Max 100A (Solar) / 60A (AC)
Protection
Overload Protection Yes
Short Circuit Protection Yes
Over Voltage Protection Yes
Low Voltage Protection Yes
Over Temperature Protection Yes
Features
LCD Display Yes (Color LCD)
Auto Restart Yes
UPS Mode Yes (<10 ms transfer time)
Solar Compatibility Yes (Built-in MPPT)
Interface
AC Output Socket Dual AC Output (Main + Second Load)
USB Port Yes
LED Indicator Yes
Physical
Dimensions 318 × 454 × 122 mm
Weight 7.6 kg
Environment
Operating Temperature -10°C ~ +50°C
Others
Package Content 1 × PV18-4024 PRO Inverter, 1 × User Manual, Communication Cables
Warranty & Support
Warranty 1 Year Official Warranty
