Rosenberger / Patch Panel

CP41-431-03-E

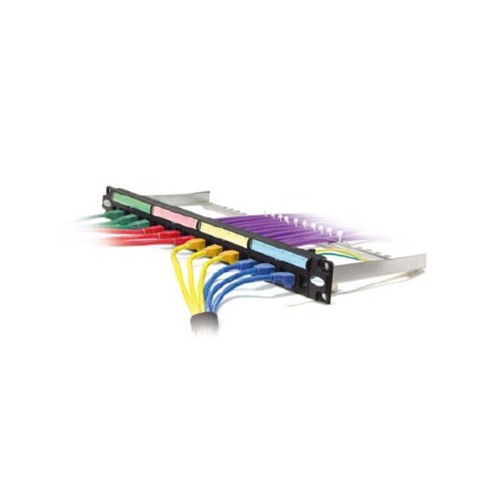

Rosenberger Cat-6 UTP 24 Port Modular Patch Panel Frame

Brand Rosenberger
Category Patch Panel
Model CP41-431-03-E
Availability In Stock

Feature & Benefit:

• HDCS® patch panel exceeds CAT.6A highest performance requirements of TIA 568-C.2

• Outstanding performance including IL, NEXT/FEXT, Power sum NEXT/FEXT and Return loss guaranteeing good link performance.

• Delivered with plastic cable management bar, installation screws and labelling system

• Both modular type and IDC type available for different customer choice

• Unshielded or shielded solution





Material Performance:

  • Front Panel: Steel, powder coating
  • Plastic: High impact flame retardant plastic, UL94V-0 rated
  • Contact: Phosphor bronze C5210EH
  • Contact Plating: Gold plating 50μ "over nickel plating 50~100μ"



Mechanical Performance:

  • Plug Insertion Life: 750 cycle min
  • Plug Retention Force: 30Lbs min
  • IDC Contactor: Accept 22-26 AWG solid wires
  • IDC Termination Cycles: 200 times min.
  • Temperature: -40℃ to 70℃

Electrical Performance:

  • Current Rating: 1.5 AMP
  • Insulation Resistance: 500Mega ohms min
  • Contact Resistance: 20milli-ohms max

  • Dielectric Strength: 750V AC RMS 60Hz 1min
