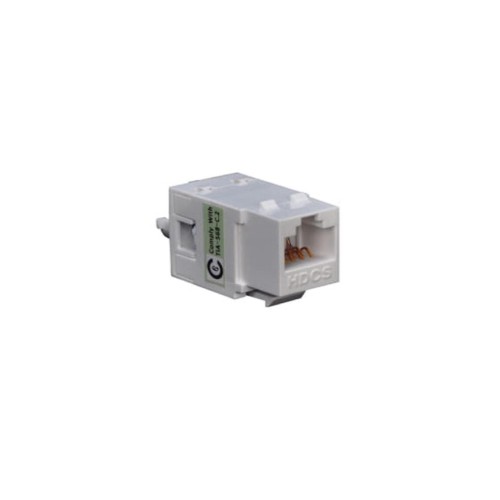

HDCS® CAT.6A keystone jack is a part of the HDCS® Cabling system, such jack utilizes same mounting feature, applicable to outlet faceplate, surface mounting box and modular patch panels. It guarantee 500MHz bandwidth for high grade 10Gbps transmission application, and compatible backwards with all current Ethernet applications, including 10Base-T,100Base-T,1000Base-T, 10GBase-T etc.
Feature & Benefit:
• HDCS keystone jack exceeds CAT.6A performance requirements of standard ISO11801, TIA 568C.2
• Outstanding performance including IL, NEXT/FEXT, Power sum NEXT/FEXT and Return loss, which ensures high link performance
• Termination cap provides excellent strain relief, helps control cable bend radius and securely retains wires.
• Accepts both 110 tool or KRONE tool to install, and toolless version keystone available
• Third party 3P certification (UL) for hardware performance
• Aesthetic product appearance
• Diversified options including UTP 180 degree, UTP 90 degree, FTP 180 degree and FTP 90 degree.
Material Performance
Mechanical Performance:
