General
| Device Type |
1000BASE-BX SFP Bi-Directional Transceiver (Single Fiber) |
| Form Factor |
SFP |
Optical
| SFP Type |
1000BASE-BX (BiDi) |
| Connector Type |
SC Simplex |
| Optical Wavelength |
TX: 1310nm / RX: 1490nm (Module A); TX: 1490nm / RX: 1310nm (Module B) |
| Transmission Distance |
Up to 20 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| TX Power |
-9 ~ -3 dBm |
| RX Sensitivity |
≤ -23 dBm |
Performance
| Data Rate |
1.25 Gbps (Gigabit Ethernet) |
| Operating Mode |
Single Fiber (Bi-Directional / Simplex) |
Compatibility
| Compatible Devices |
Most switches, routers, media converters, and ONTs with SFP ports (Cisco, Huawei, MikroTik, Solitine, etc.) |
Physical
| Dimensions |
56.5 × 13.4 × 8.5 mm (per module) |
| Weight |
≈ 20 g (per module) |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 Pair (2 Modules: 1310nm & 1490nm), Dust Caps, User Guide |

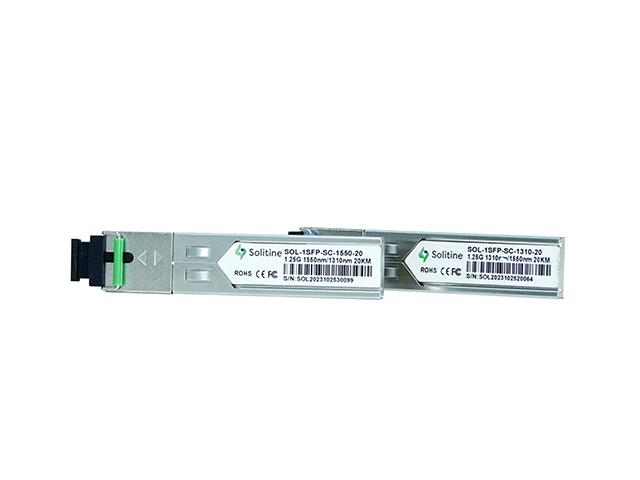

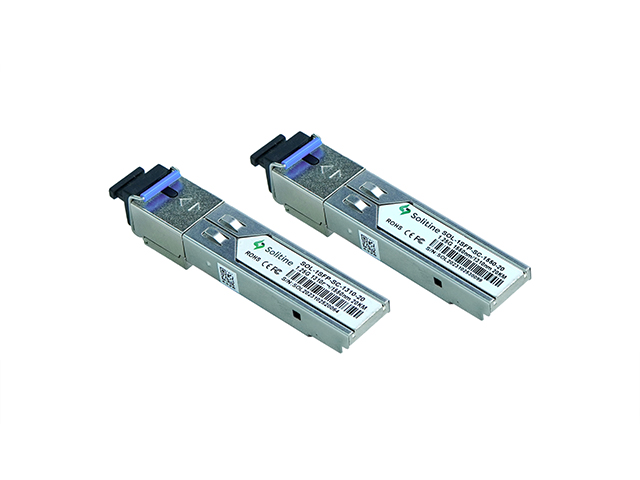

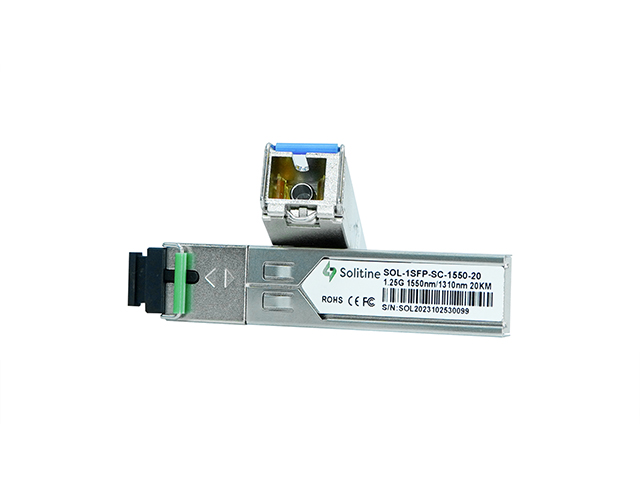

Solitine 1.25G SFP SC BiDi 20km (Pair)
The Solitine 1.25G SFP SC 20km BiDi Pair is a cost-effective single-fiber solution for Gigabit Ethernet transmission. Using two complementary wavelengths (1310nm/1490nm), it enables full-duplex communication over one single-mode fiber strand up to 20 kilometers.
Single Fiber Bi-Directional Technology
Transmits and receives data simultaneously over a single SMF fiber, significantly reducing fiber usage and deployment costs compared to traditional dual-fiber solutions.
Reliable 1.25G Performance
Supports stable 1.25 Gbps Gigabit Ethernet with SC Simplex connector. Ideal for FTTH, campus networks, ISP links, and point-to-point fiber connections up to 20km.
Wide Compatibility
Hot-pluggable SFP form factor with excellent compatibility across major networking brands. Easy plug-and-play deployment with low power consumption.
The Solitine 1.25G SFP SC BiDi 20km Pair is a practical and economical solution for saving fiber resources in Gigabit networks.
