General
| Device Type |
10/100/1000BASE-T Copper SFP Transceiver |
| Form Factor |
SFP (Small Form-factor Pluggable) |
Optical
| SFP Type |
1000BASE-T Copper SFP |
| Connector Type |
RJ45 (Copper) |
| Optical Wavelength |
N/A (Electrical) |
| Transmission Distance |
Up to 100 meters (over Cat5e/Cat6 UTP Cable) |
| Fiber Type |
N/A (Copper Cable) |
| TX Power |
N/A |
| RX Sensitivity |
N/A |
Performance
| Data Rate |
10/100/1000 Mbps (Auto-Negotiation) |
| Operating Mode |
Full/Half Duplex, Auto MDI/MDIX |
Compatibility
| Compatible Devices |
Most switches, routers, and media converters with standard SFP ports (Cisco, Huawei, MikroTik, Solitine, etc.) |
Physical
| Dimensions |
Standard SFP Size (approx. 72 × 13.4 × 8.5 mm) |
| Weight |
≈ 25 g |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 × Solitine Copper SFP RJ45 Module, 1 × Dust Cap |
Warranty & Support
| Warranty |
1 Year Official Warranty |

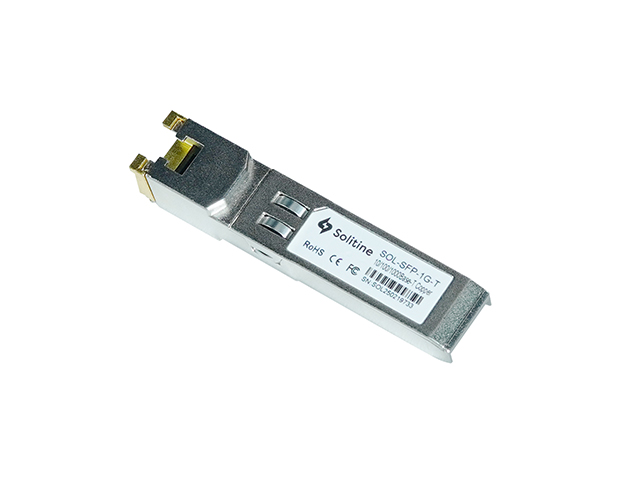

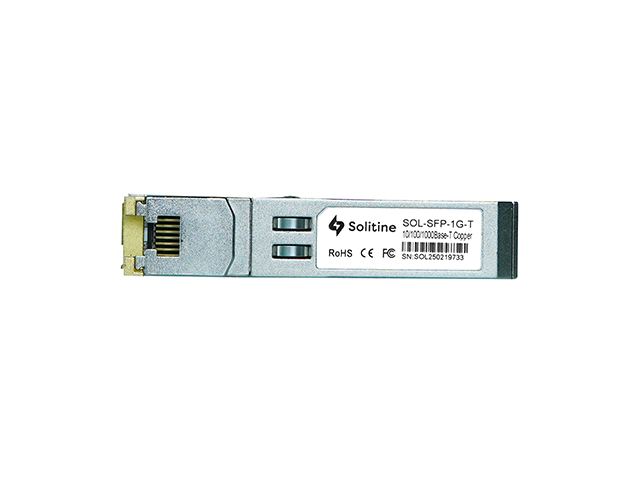

Solitine 10/100/1000BASE-T Copper SFP Module – RJ45, 100m
The Solitine Copper SFP 1G RJ45 is a high-quality 10/100/1000BASE-T SFP transceiver module that enables Gigabit Ethernet connectivity over standard copper cables. It is the perfect solution for extending copper connections in switches and routers that only have SFP ports.
Gigabit Copper Connectivity
Supports auto-negotiation for 10/100/1000 Mbps speeds with RJ45 interface. Delivers reliable transmission up to 100 meters over Cat5e or Cat6 UTP cables.
Hot-Pluggable & Easy Deployment
Standard SFP form factor, hot-pluggable design with Auto MDI/MDIX support. No configuration needed — simply insert into the SFP port and connect your Ethernet cable.
Wide Compatibility
Compatible with most major brand networking equipment. Ideal for data centers, enterprise networks, and any environment where fiber is not required but SFP ports are available.
The Solitine Copper SFP RJ45 100m is a cost-effective and reliable solution for flexible copper Gigabit connections.
