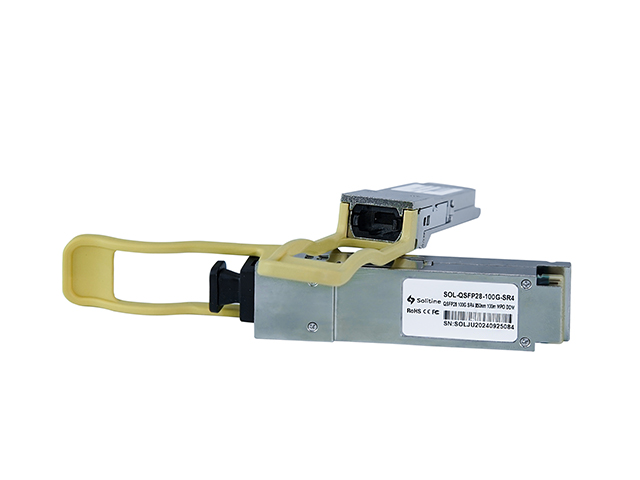

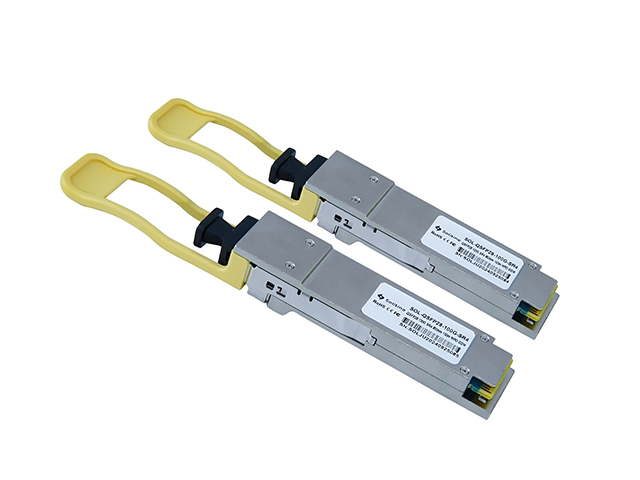

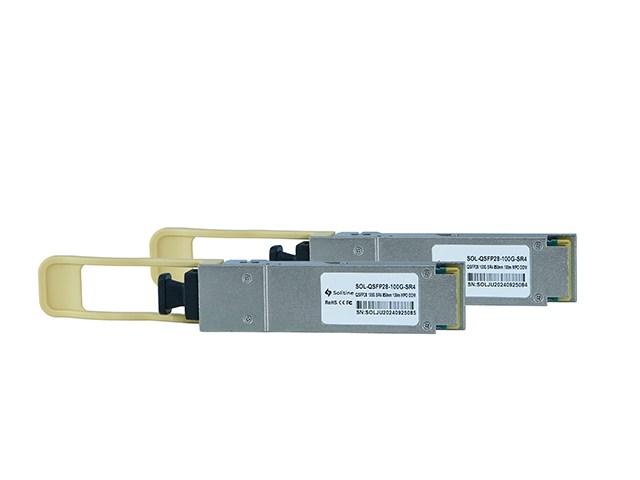

Solitine 100G SR4 QSFP28 Module – 850nm, MPO, 100m, DDM

The Solitine 100G SR4 QSFP28 Module delivers ultra-high-speed 100Gbps performance for data center and enterprise backbone networks. Using 850nm wavelength and MPO connector, it supports short-reach transmission over multimode fiber, with distances up to 70m on OM3 and 100m on OM4. Designed to meet 100GBASE-SR4 standards, it ensures seamless interoperability across major brands. With Digital Diagnostics Monitoring (DDM), network administrators can monitor performance in real time. The compact QSFP28 form factor makes it ideal for high-density networking environments, providing reliability, efficiency, and speed for modern data infrastructure.

  • Form Factor: QSFP28
  • Data Rate: 100Gbps
  • Center Wavelength: 850nm
  • Standards Compliance: 100GBASE-SR4
  • Connector Type: MPO
  • Fiber Type: Multimode (OM3/OM4)
  • Maximum Distance: OM3: 70m / OM4: 100m
  • Transmit Power: -8.4 to +2.4 dBm
  • Receiver Sensitivity: -8.5 dBm
  • Operating Temperature: 0°C to 70°C
  • DDM Support: Yes
