General
| Device Type |
10G Bi-Directional SFP+ Transceiver (Single Fiber) |
| Form Factor |
SFP+ |
Optical
| SFP Type |
10GBASE-BX (BiDi) |
| Connector Type |
LC Simplex |
| Optical Wavelength |
TX: 1330nm / RX: 1270nm (One module) TX: 1270nm / RX: 1330nm (Pair module) |
| Transmission Distance |
Up to 40 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| TX Power |
0 ~ +5 dBm |
| RX Sensitivity |
≤ -15 dBm |
Performance
| Data Rate |
10.3125 Gbps (10G Ethernet) |
| Operating Mode |
Single Fiber (Bi-Directional / Simplex) |
Compatibility
| Compatible Devices |
Most 10G SFP+ switches, routers, and media converters (Cisco, Huawei, FS, MikroTik, Solitine, etc.) |
Physical
| Dimensions |
56.5 × 13.4 × 8.5 mm (Standard SFP+) |
| Weight |
≈ 22 g (per module) |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 Pair (2 Modules: 1330nm & 1270nm), Dust Caps, User Guide |
Warranty & Support
| Warranty |
1 Year official Warranty |

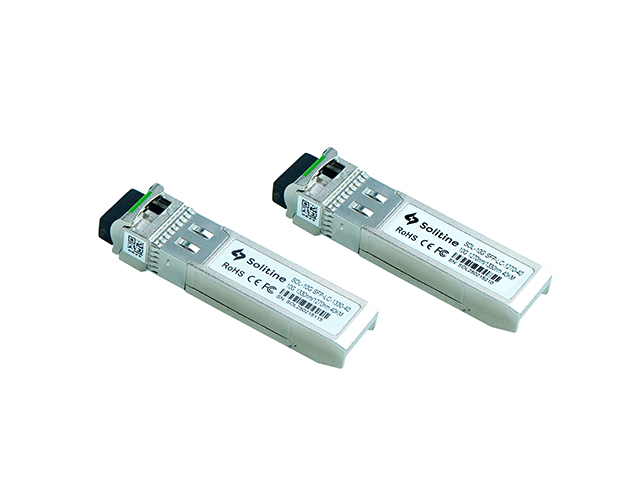

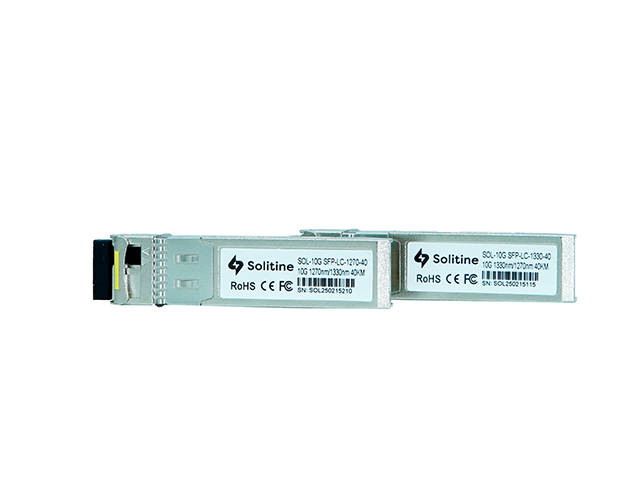

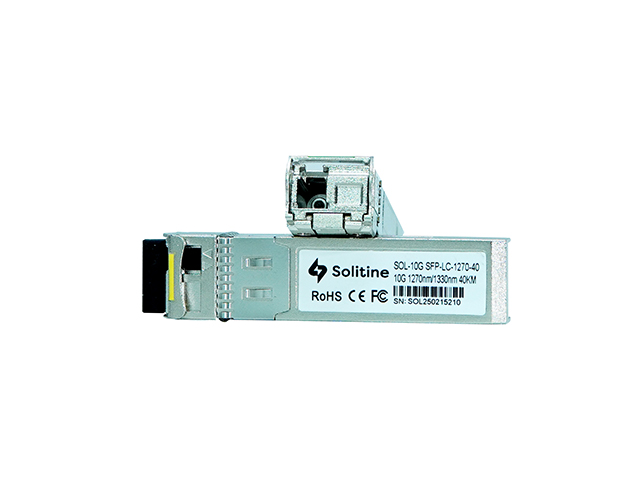

Solitine 10G SFP+ BiDi 1330/1270nm 40km (Pair)
The Solitine 10G SFP+ BiDi 40km module pair utilizes single-fiber bidirectional technology, transmitting and receiving data over one single-mode fiber strand. It is an excellent cost-effective solution for extending 10G connectivity up to 40 kilometers without using two separate fibers.
Single Fiber Bi-Directional Transmission
Uses 1330nm and 1270nm wavelengths for simultaneous transmit and receive over one fiber. Ideal for saving fiber resources in long-distance links.
High-Speed 10G Performance
Supports full 10.3125 Gbps data rate with stable performance up to 40km on single-mode fiber. Hot-pluggable SFP+ design ensures easy deployment.
Wide Compatibility
Compatible with major brand networking equipment. Perfect for point-to-point 10G connections, ISP backbone, metro networks, and 5G transport links.
The Solitine 10G SFP+ BiDi 40km pair is a reliable and fiber-saving solution for high-speed long-distance transmission.
