General
| Device Type |
10GBASE-BX SFP+ Bi-Directional Transceiver (Single Fiber) |
| Form Factor |
SFP+ |
Optical
| SFP Type |
10GBASE-BX (BiDi) |
| Connector Type |
LC Simplex |
| Optical Wavelength |
TX: 1330nm / RX: 1270nm (Module A), TX: 1270nm / RX: 1330nm (Module B) |
| Transmission Distance |
Up to 20 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| TX Power |
0 ~ +5 dBm |
| RX Sensitivity |
≤ -15 dBm |
Performance
| Data Rate |
10.3125 Gbps |
| Operating Mode |
Single Fiber (Bi-Directional / Simplex) |
Compatibility
| Compatible Devices |
Most 10G SFP+ switches, routers, and media converters (Cisco, Huawei, FS, Solitine, MikroTik, etc.) |
Physical
| Dimensions |
56.5 × 13.4 × 8.5 mm (per module) |
| Weight |
≈ 22 g (per module) |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 Pair (2 Modules: 1330nm & 1270nm), Dust Caps, User Guide |
Warranty & Support
| Warranty |
1 Year Official Warranty |

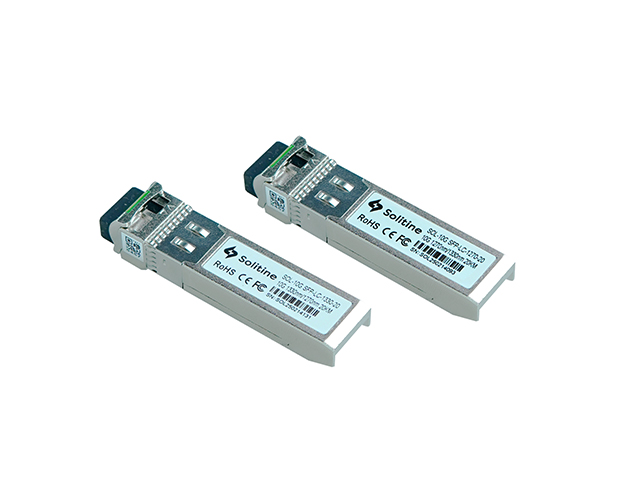

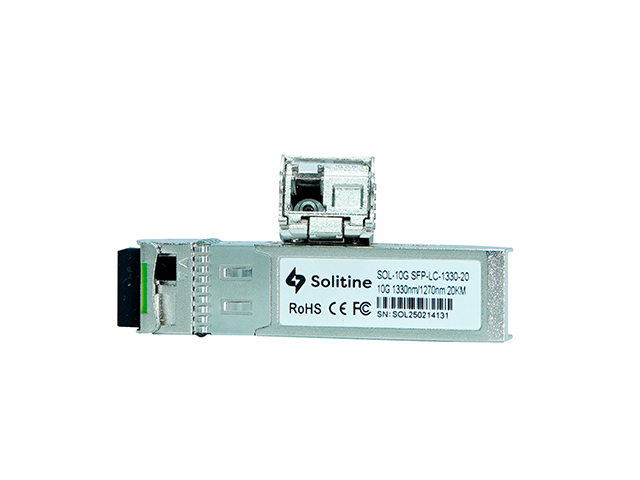

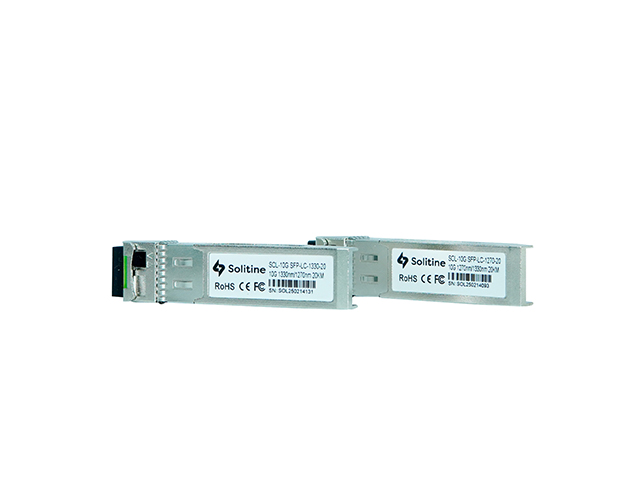

Solitine 10G SFP+ BiDi LC 20km (Pair)
The Solitine 10G SFP+ BiDi 20km Pair utilizes single-fiber bidirectional technology, allowing full 10Gbps transmission over one single-mode fiber strand. This pair consists of two modules with complementary wavelengths (1330/1270nm), making it a cost-effective and fiber-saving solution for point-to-point 10G links up to 20 kilometers.
Single Fiber Bi-Directional Design
Transmits and receives data simultaneously over one SMF fiber using two different wavelengths. Ideal for saving valuable fiber resources in long-distance connections.
High-Speed 10G Performance
Supports full 10.3125 Gbps data rate with stable performance up to 20km. Hot-pluggable SFP+ form factor with LC Simplex connector for easy deployment.
Wide Compatibility
Compatible with major networking brands. Perfect for ISP backbone, metro networks, campus links, and 5G transport applications where fiber count is limited.
The Solitine 10G SFP+ BiDi 20km Pair is a reliable and economical solution for high-speed single-fiber transmission.
