General
| Device Type |
10GBASE-SR SFP+ Optical Transceiver |
| Form Factor |
SFP+ |
Optical
| SFP Type |
10GBASE-SR |
| Connector Type |
LC Duplex |
| Optical Wavelength |
850 nm (VCSEL) |
| Transmission Distance |
300 m (OM3 MMF) / 400 m (OM4 MMF) |
| Fiber Type |
Multi-Mode Fiber (MMF) |
| TX Power |
-7.3 ~ +1.0 dBm |
| RX Sensitivity |
≤ -11.1 dBm |
Performance
| Data Rate |
10.3125 Gbps |
| Operating Mode |
Multi-Mode (Short Reach) |
Compatibility
| Compatible Devices |
Cisco, Huawei, Arista, Juniper, FS, MikroTik, and most SFP+ compatible switches/routers |
Physical
| Dimensions |
56.5 × 13.4 × 8.5 mm |
| Weight |
≈ 20 g |
Environment
| Operating Temperature |
0°C ~ 70°C (Commercial) |
Others
| Package Content |
1 × Solitine 10G SR SFP+ Module, 1 × Dust Cap |
Warranty & Support
| Warranty |
1 Year Official Warranty |

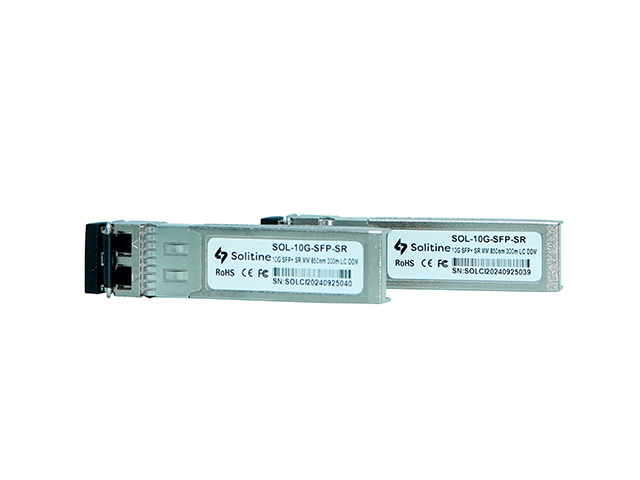

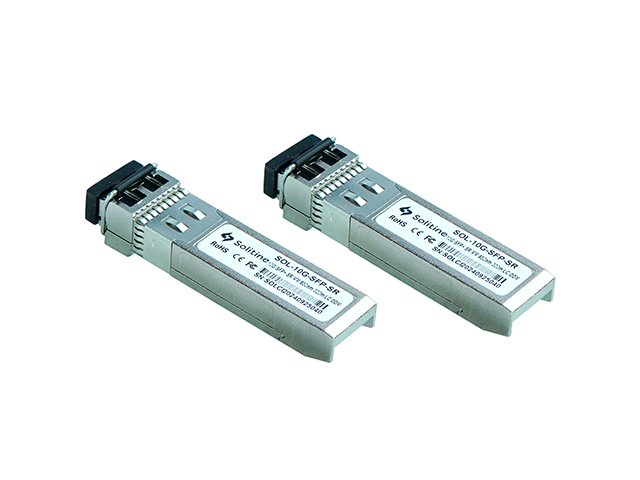

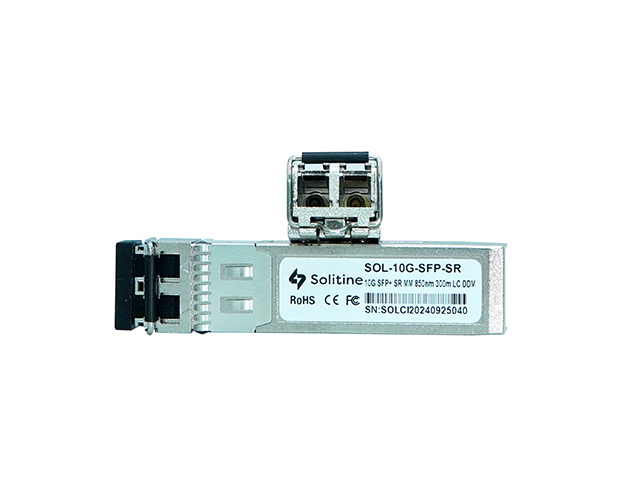

Solitine 10G SR SFP+ 850nm 300m LC Duplex
The Solitine 10G SR SFP+ is a high-performance short-range 10 Gigabit optical transceiver operating at 850nm wavelength. It supports transmission up to 300 meters over OM3 multi-mode fiber (400m on OM4), making it ideal for data center interconnects, server-to-switch, and intra-building high-speed links.
High-Speed Short-Range Transmission
Delivers full 10.3125 Gbps bandwidth with LC Duplex connector. Optimized for multi-mode fiber with excellent signal integrity and low power consumption.
Hot-Pluggable & Widely Compatible
Standard SFP+ form factor, hot-pluggable design with Digital Diagnostic Monitoring (DDM/DOM) support. Compatible with major networking brands including Cisco and Huawei.
Reliable Data Center Solution
Perfect for high-density 10G connections in data centers, enterprise networks, and campus environments requiring cost-effective short-range fiber links.
The Solitine 10G SR SFP+ 850nm 300m is a reliable and affordable solution for modern 10G networking.
