General
| Device Type |
GPON OLT SFP Transceiver (Class C+++) |
| Form Factor |
SFP |
Optical
| SFP Type |
GPON OLT SFP Class C+++ |
| Connector Type |
SC/UPC |
| Optical Wavelength |
Tx: 1490 nm / Rx: 1310 nm |
| Transmission Distance |
Up to 20 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| TX Power |
+5 ~ +7 dBm (Class C+++) |
| RX Sensitivity |
-32 dBm (Class C+++) |
Performance
| Data Rate |
2.488 Gbps Downstream / 1.244 Gbps Upstream |
| Operating Mode |
Single Fiber (Bi-Directional) |
Compatibility
| Compatible Devices |
Most GPON OLTs (Solitine, Huawei, ZTE, Fiberhome, etc.) |
Physical
| Dimensions |
60 × 13.4 × 8.5 mm (Standard SFP) |
| Weight |
≈ 25 g |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 × Solitine C+++ GPON OLT SFP Module, 1 × Dust Cap, User Guide |
Warranty & Support
| Warranty |
1 Year Official Warranty |

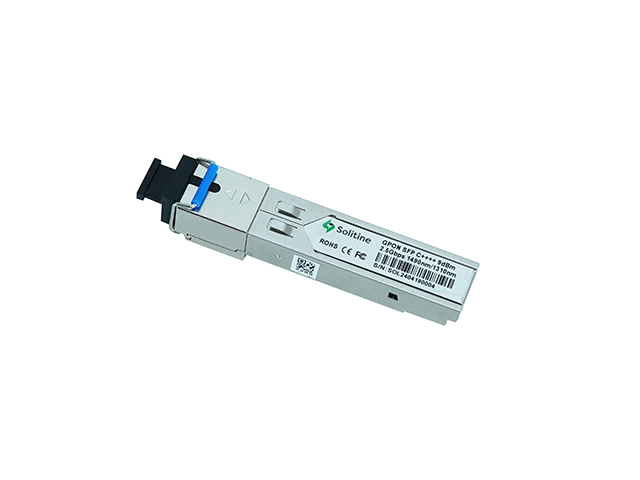

Solitine C+++ GPON OLT SFP Transceiver Module (20km, SC/UPC, DDM)
The Solitine C+++ GPON OLT SFP is a high-power Class C+++ transceiver module designed for GPON OLT equipment. It provides strong downstream power (+5 ~ +7 dBm) and excellent receiver sensitivity (-32 dBm), enabling reliable transmission up to 20km with 1:128 split ratio, making it ideal for large-scale FTTH deployments with high split ratios.
Class C+++ High Power Performance
With enhanced TX power and superior RX sensitivity, this module supports longer distances and higher split ratios (up to 1:128), ensuring stable service for more ONUs per PON port.
Reliable GPON Transmission
Delivers 2.488 Gbps downstream and 1.244 Gbps upstream with SC/UPC connector. Features DDM (Digital Diagnostic Monitoring) for real-time performance monitoring.
Wide Compatibility
Hot-pluggable SFP form factor compatible with most GPON OLT platforms. Ideal for ISP networks requiring high-power PON modules for dense deployments.
The Solitine C+++ GPON OLT SFP is a robust and high-performance solution for large-scale fiber access networks.
