SOPC10Y-6,SOPC10B-6,SOPC10O-6,SOPC10R-6

Solitine / Cat-6

SOPC10Y-6,SOPC10B-6,SOPC10O-6,SOPC10R-6

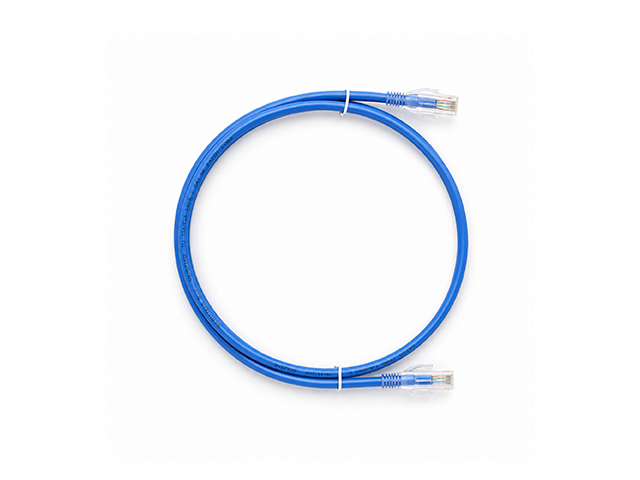

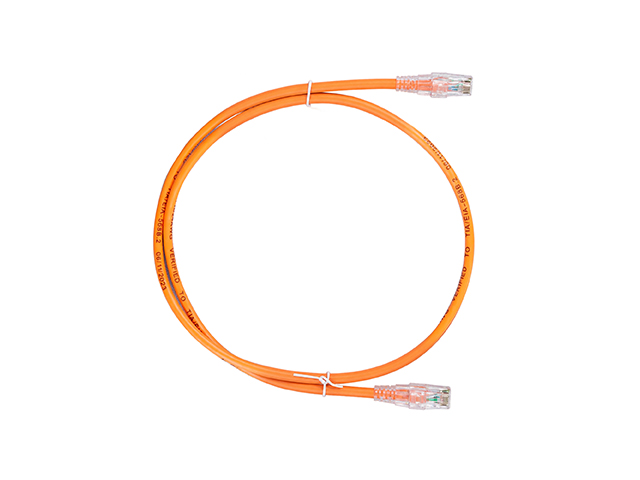

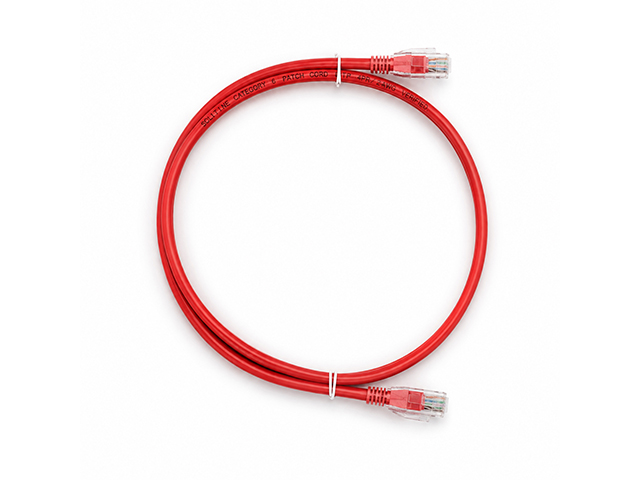

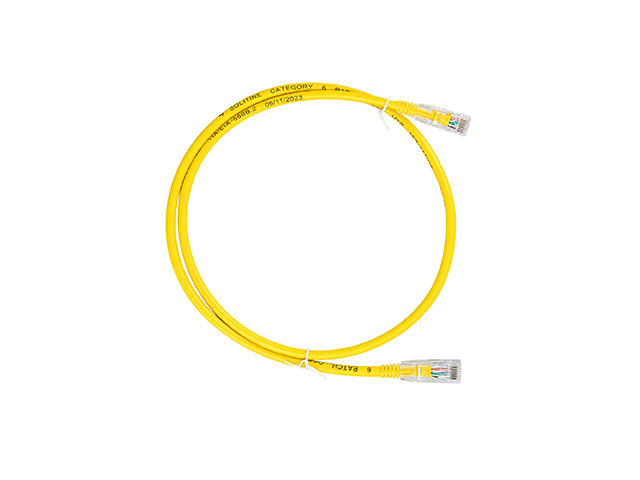

Solitine Cat6 UTP Patch Cable, 1m (Yellow, Blue, Orange, Red)

Key Features
  • 24 AWG stranded bare copper conductors for optimal conductivity and flexibility
  • Up to 250 MHz bandwidth supporting 1 Gbps Ethernet performance

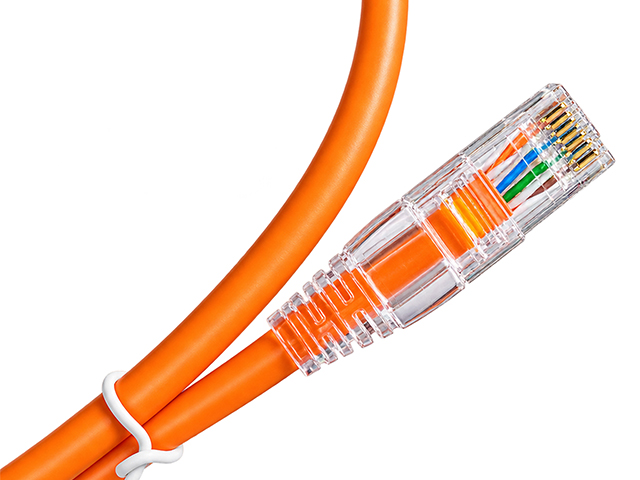

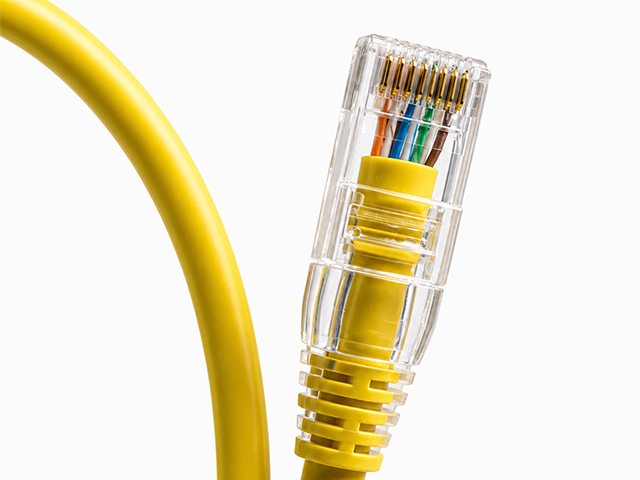

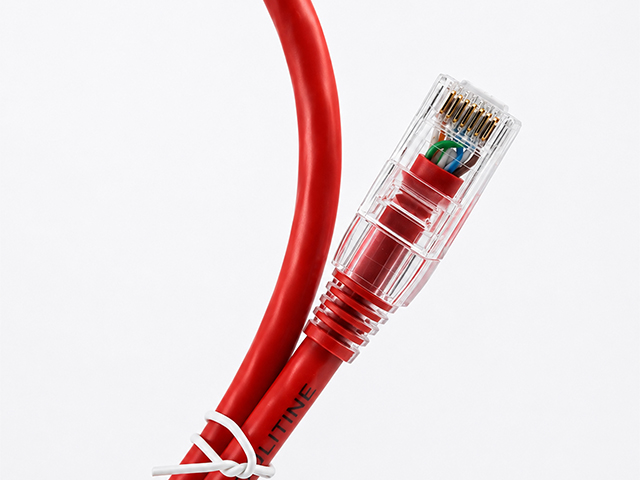

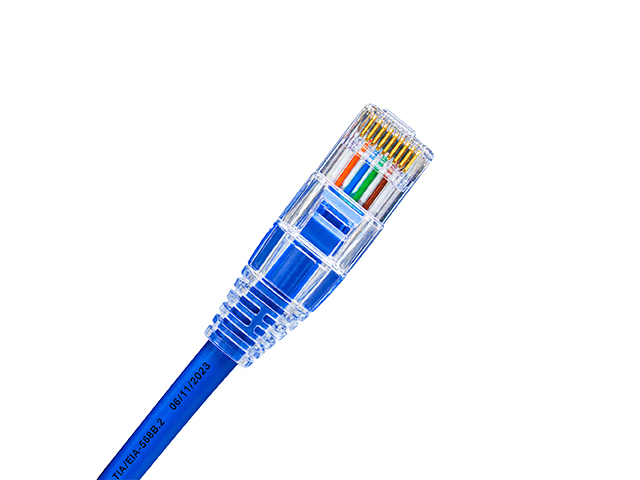

  • Snagless RJ45 connectors with strain-relief boots for easy and safe installation
  • Flexible PVC jacket, T568A/B compatible, ANSI/TIA & ISO/IEC Class E certified
Brand Solitine
Category Cat-6
Model SOPC10Y-6,SOPC10B-6,SOPC10O-6,SOPC10R-6
Availability In Stock
General
Cable Type Cat 6 UTP Patch Cord (Stranded, Pre-terminated)
Color Yellow
Cable Specifications
Category Cat 6
Conductor Material 100% Stranded Bare Copper
Conductor Size 24 AWG
Cable Length 1 Meter
Number of Pairs 4 Twisted Pairs (8 conductors)
Bandwidth Up to 250 MHz
Data Rate Up to 1 Gbps (10/100/1000 Mbps)
Shielding
Shield Type UTP (Unshielded Twisted Pair)
Physical
Outer Diameter N/A
Jacket Material Flexible PVC (Fire-retardant)
Jacket Type PVC
Standards
ANSI/TIA Compliance ANSI/TIA-568.2-D Category 6
ISO/IEC Compliance ISO/IEC 11801 Class E
Environment
Operating Temperature -20°C to +60°C
Others
Package Content 1 × Pre-terminated Cat6 UTP Patch Cable with RJ45 connectors and snagless boots
Warranty & Support
Warranty 1 Year Official Warranty
