GYFTY53

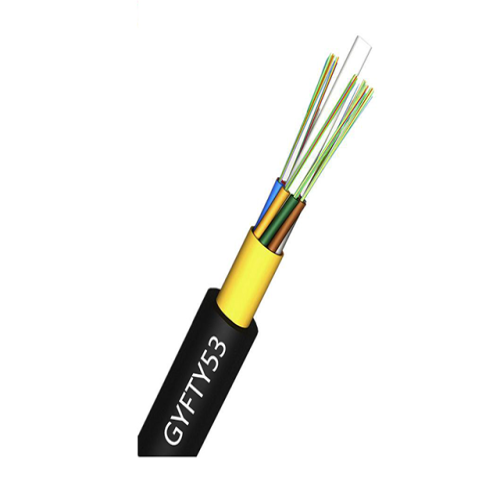

SOLITINE GYFTY53 Fiber Optic Cable

Key Features

Non-metallic FRP central strength member with corrugated steel tape armor and double PE sheath for maximum protection
High tensile strength (3000N short term) and crush resistance (3000N/100mm) ideal for direct burial
Low attenuation G.652D fiber supporting up to 288 cores with excellent long-distance performance
Suitable for direct buried, duct, and harsh environment installations with wide temperature range

Brand Solitine

Category Optical Fiber Cable

Model GYFTY53

Availability In Stock

General

Cable Type	Stranded Loose Tube, Non-Metallic, Steel Tape Armored, Double Sheath Outdoor Fiber Optic Cable
Color	Black

Fiber Specifications

Fiber Type	Single Mode G.652D (G.657A optional)
Core Count	2–288 Cores (Common: 6, 12, 24, 48, 96)
Core Size	9/125μm
Operating Wavelength	1310nm / 1550nm
Transmission Distance	Suitable for long-distance backbone and direct buried applications

Construction

Jacket Material	Double PE (Polyethylene) Sheath
Cable Diameter	12.0–16.8mm (depends on core count)
Strength Member	FRP (Fiber Reinforced Plastic) Central Strength Member
Armored Type	Corrugated Steel Tape Armor (PSP) with Double Sheath

Performance

Attenuation	≤0.36 dB/km @1310nm, ≤0.22 dB/km @1550nm
Tensile Strength	Short Term 3000N, Long Term 1000N
Crush Resistance	Short Term 3000N/100mm, Long Term 1000N/100mm

Standards

ITU Standard

ITU-T G.652D compliant

Environment

Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +70°C

Others

Package Content

GYFTY53 Fiber Optic Cable (per meter or drum), Test Report

Warranty & Support

Warranty

1 Year Official Warranty

SOLITINE GYFTY53 Fiber Optic Cable

The SOLITINE GYFTY53 Fiber Optic Cable is a high-strength, non-metallic armored outdoor cable specifically designed for direct buried and harsh environment installations. Featuring stranded loose tubes, FRP central strength member, corrugated steel tape armor, and double PE sheath, it provides excellent mechanical protection, moisture resistance, and long-term reliability for backbone networks and FTTH distribution.

Non-Metallic Strength with Steel Tape Armor

Built with 250μm optical fibers in water-blocking loose tubes stranded around an FRP (Fiber Reinforced Plastic) central strength member. The cable core is protected by corrugated steel tape armor and double polyethylene (PE) sheaths, offering superior crush resistance, rodent protection, and anti-electromagnetic interference while remaining lightweight and non-conductive.

High Mechanical Performance for Direct Burial

With exceptional tensile strength (up to 3000N short term) and crush resistance (3000N/100mm short term), the GYFTY53 is ideal for direct buried installations. The double sheath design enhances protection against environmental stress, making it suitable for underground ducts, direct burial, and areas with high mechanical requirements.

Low Attenuation & Excellent Optical Performance

Equipped with premium G.652D single-mode fiber, it delivers very low attenuation (≤0.36 dB/km at 1310nm and ≤0.22 dB/km at 1550nm). This ensures stable, high-speed data transmission over long distances with minimal signal loss for high-bandwidth applications.

Reliable for Harsh Environments

The rugged double PE jacket provides outstanding UV, weather, and moisture resistance, along with a wide operating temperature range (-40°C to +70°C). It is a cost-effective and durable solution for telecom operators, ISPs, and large-scale network projects requiring robust underground fiber infrastructure.

The SOLITINE GYFTY53 Fiber Optic Cable offers the perfect combination of non-metallic strength, armored protection, and superior performance for demanding outdoor installations.
