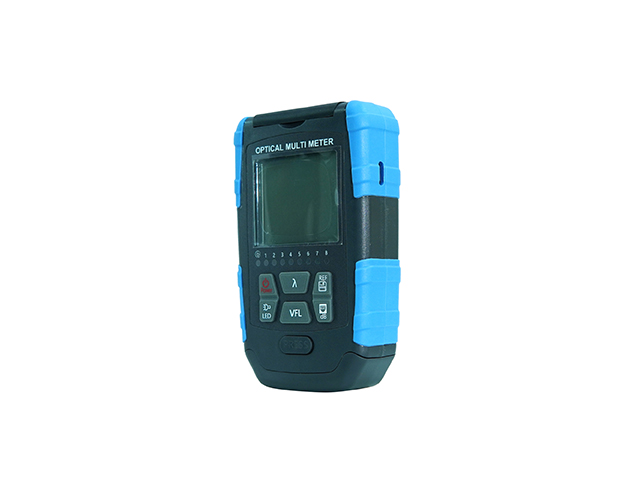

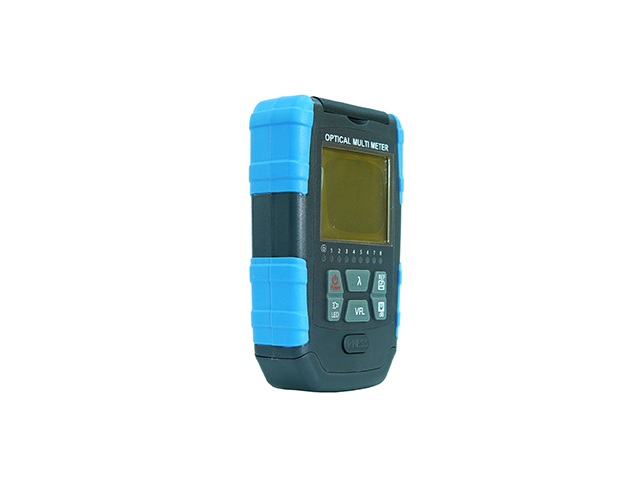

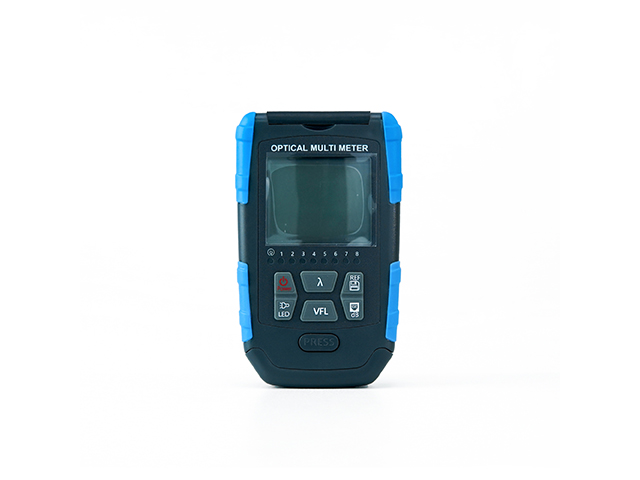

Solitine Optical Power Meter with VFL & R45 Tester

The Solitine Optical Power Meter with VFL & RJ45 Tester is a versatile, high-accuracy device designed for fieldwork. It accurately tests network cable signals, features a stable VFL output, and includes RJ45 network testing as an optional add-on. With self-calibration, wavelength memory, and a rugged rubber exterior, this tool is reliable and durable. It includes USB charging, an 18650 Li-ion battery, and a low-power design for long standby times.

Optical Power Meter

  • Detector Type: InGaAs
  • Optical Connector: SC/FC & 2.5mm Universal
  • Calibrated Wavelengths: 850, 1300, 1310, 1490, 1550, 1625 nm
  • Measurement Range: -50~+26dBm or -70~+10dBm
  • Accuracy: ±0.2 dB
  • Power Measurement Linearity: 0.1 dB
  • Display Resolution: 0.01 dB
  • Power Display Units: dBm, dB, mW, W

Visual Fault Locator (VFL)

  • Output Power: 1mW / 10mW / 20mW / 30mW
  • Range: 12 km @ SM
  • Connector: 2.5mm Universal
  • Laser Safety Rating: Class 2
  • Wavelength: 650nm ± 20nm
  • Output Modes: Continuous (CW), 2–3 Hz Pulse
  • Reverse Battery Protection: Yes

Other Features

  • Power Supply: 18650 Li-ion battery
  • Auto Off: 10 minutes
  • Working Time: >200 hours (OPM only) / ≥50 hours (10mW VFL + OPM simultaneously)
  • Operating Temperature: -10℃ ~ +50℃
  • Weight: 250g
  • Dimensions: 160 × 75 × 10 mm
