SOL6-0.500, SOL6-0100, SOL6-0200, SOL6-0300

Solitine / Cat-6

SOL6-0.500, SOL6-0100, SOL6-0200, SOL6-0300

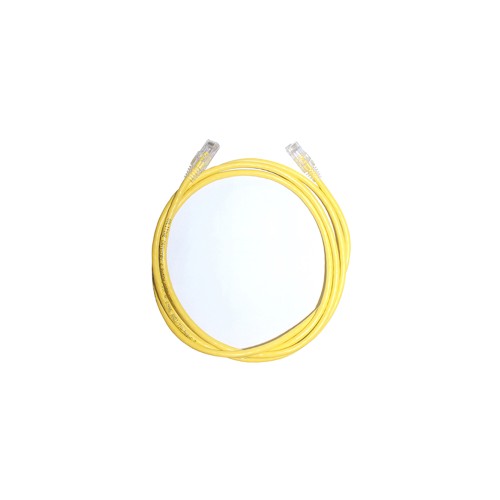

SOLITINE Patch cord Cat6 UTP 0.5M, 1M, 2M, 3M PVC

Key Features
  • 24 AWG stranded bare copper conductors for flexibility and superior conductivity
  • 250 MHz bandwidth supporting 1 Gbps Ethernet performance
  • UTP design with precise pair twisting for minimized crosstalk
  • Snag-free RJ45 connectors with boots, PVC jacket, TIA/ISO compliant
Brand Solitine
Category Cat-6
Model SOL6-0.500, SOL6-0100, SOL6-0200, SOL6-0300
Availability In Stock
General
Cable Type Cat 6 UTP Patch Cord (Stranded, Pre-terminated)
Color Blue (standard)
Cable Specifications
Category Cat 6
Conductor Material 100% Bare Copper (Stranded)
Conductor Size 24 AWG
Cable Length 0.5m / 1m / 2m / 3m
Number of Pairs 4 Twisted Pairs (8 conductors)
Bandwidth 250 MHz
Data Rate 1 Gbps up to 100m (10 Gbps over shorter distances)
Shielding
Shield Type UTP (U/UTP)
Physical
Outer Diameter ≈ 5.5 – 6.2 mm (typical for Cat6 patch cords)
Jacket Material PVC (Flame Retardant)
Jacket Type PVC
Standards
ANSI/TIA Compliance ANSI/TIA-568-C.2 compliant
ISO/IEC Compliance ISO/IEC 11801 Class E
Environment
Operating Temperature -20°C to +60°C
Others
Package Content 1 x Pre-terminated Cat6 UTP Patch Cable with RJ45 connectors and strain relief boots
Warranty & Support
Warranty 1 Year Official Warranty
