General
| Device Type |
EPON OLT SFP Transceiver (High Power Class) |
| Form Factor |
SFP |
Optical
| SFP Type |
EPON OLT PX20+++ |
| Connector Type |
SC/UPC |
| Optical Wavelength |
Tx: 1490 nm / Rx: 1310 nm |
| Transmission Distance |
Up to 20 km |
| Fiber Type |
Single Mode Fiber (SMF) |
| TX Power |
+7 ~ +9 dBm (High Power Class PX20+++) |
| RX Sensitivity |
-32 dBm |
Performance
| Data Rate |
1.25 Gbps Symmetric (EPON) |
| Operating Mode |
Single Fiber (Bi-Directional) |
Compatibility
| Compatible Devices |
Most EPON OLT platforms (Solitine, Huawei, ZTE, Fiberhome, etc.) |
Physical
| Dimensions |
60 × 13.4 × 8.5 mm (Standard SFP) |
| Weight |
≈ 25 g |
Environment
| Operating Temperature |
0°C ~ 70°C |
Others
| Package Content |
1 × Solitine PX20+++ EPON OLT SFP Module, 1 × Dust Cap, User Guide |
Warranty & Support
| Warranty |
1 Year Official Warranty |

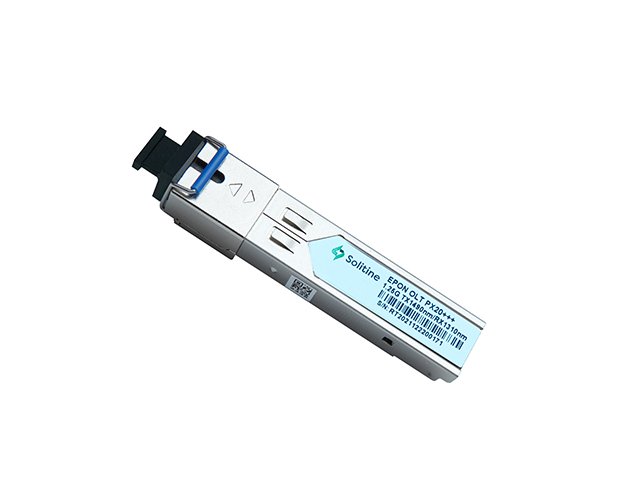

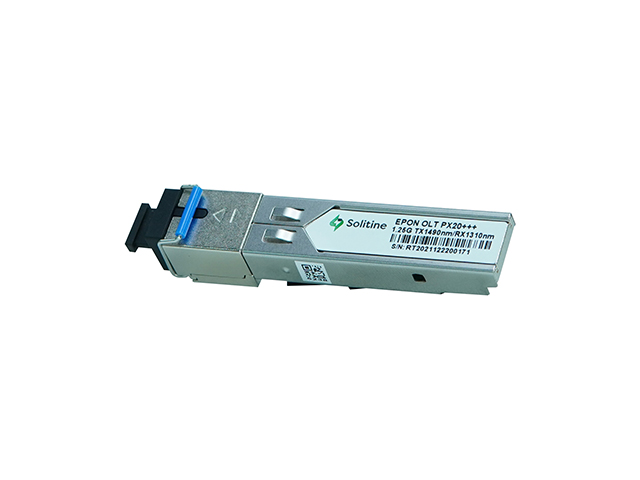

Solitine PX20+++ EPON OLT PON Module (20km, +9dBm, SC/UPC, DDM)
The Solitine PX20+++ is a high-power EPON OLT SFP transceiver module designed for large-scale EPON deployments. With enhanced TX power up to +9 dBm and excellent receiver sensitivity, it supports longer distances and higher split ratios, making it ideal for dense FTTH networks and long-reach applications.
High-Power PX20+++ Performance
Delivers strong downstream power (+7 ~ +9 dBm) and outstanding RX sensitivity (-32 dBm), enabling reliable transmission up to 20km with split ratios up to 1:64 or higher.
Reliable EPON Transmission
Supports 1.25 Gbps symmetric EPON standard with SC/UPC connector and DDM function for real-time monitoring of optical parameters.
Wide Compatibility
Hot-pluggable SFP form factor, compatible with most EPON OLT equipment. Perfect for ISP networks requiring high-power PON modules for dense user coverage.
The Solitine PX20+++ EPON OLT SFP is a robust and high-performance solution for large-scale EPON fiber access networks.
