S3028X-DP

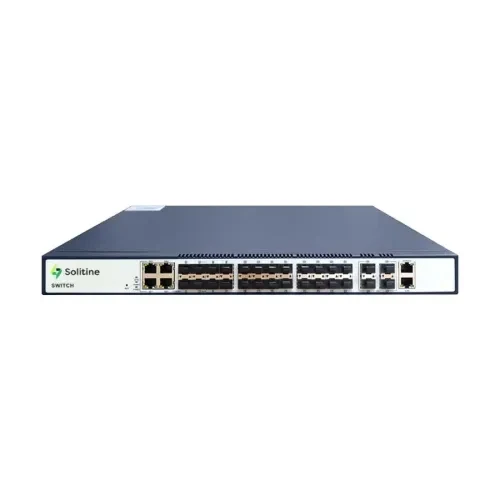

Solitine S3028X-DP 28 Port Managed Network Switch

Key Features
  • 28-Port Multi-Gigabit Managed Switch (100M/1G/2.5G/5G/10G support)
  • 20× SFP + 4× SFP+ + 4× SFP/RJ45 Combo ports
  • 128 Gbps switching capacity and 96 Mpps forwarding rate
  • Advanced L2/L3 features: VLAN, QinQ, Routing (Static/RIP/OSPF), Console Port
Brand Solitine
Category Switch
Model S3028X-DP
Availability In Stock
General
Switch Type Smart Managed Multi-Gigabit Switch
Layer L2 / L3 Lite
Form Factor Desktop
Ports
Total Ports 29 (28 Data + 1 Console)
RJ45 Ports 4 (Combo)
Gigabit Ports 28+
SFP Ports 20
Uplink Ports 4× SFP+ / Combo
Console Port Yes (RJ45)
PoE
PoE Support No
PoE Standard N/A
PoE Ports None
PoE Budget N/A
Max Power per Port N/A
Performance
Switching Capacity 128 Gbps
Forwarding Rate 96 Mpps
MAC Address Table 16K+
Jumbo Frame Supported
Features
VLAN Yes (4K Active, QinQ, Private VLAN, Voice VLAN)
QoS Yes
Link Aggregation Yes
IGMP Snooping Yes
Port Isolation Yes
Port Mirroring Yes
Storm Control Yes
Security
Port Security Yes
ACL Yes
802.1X Yes
Loop Protection Yes (STP/RSTP/MSTP)
Management
Web UI Yes
Cloud Management No
SNMP Yes
CLI Yes
Plug & Play No
Power
Power Supply AC 100-240V, 50/60Hz (Internal)
Power Consumption ≈38W
Lightning Protection N/A
Physical
Dimensions Desktop Form Factor
Weight N/A
Mounting Desktop
Fan N/A
Environment
Operating Temperature 0°C to +45°C (Typical)
Humidity 10% ~ 90% (non-condensing)
Standards
IEEE Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.1Q, IEEE 802.1p, Routing Protocols
Warranty & Support
Warranty 1 Year Official Warranty
