SOLITINE SFTP CAT6 Solid Cable LSZH

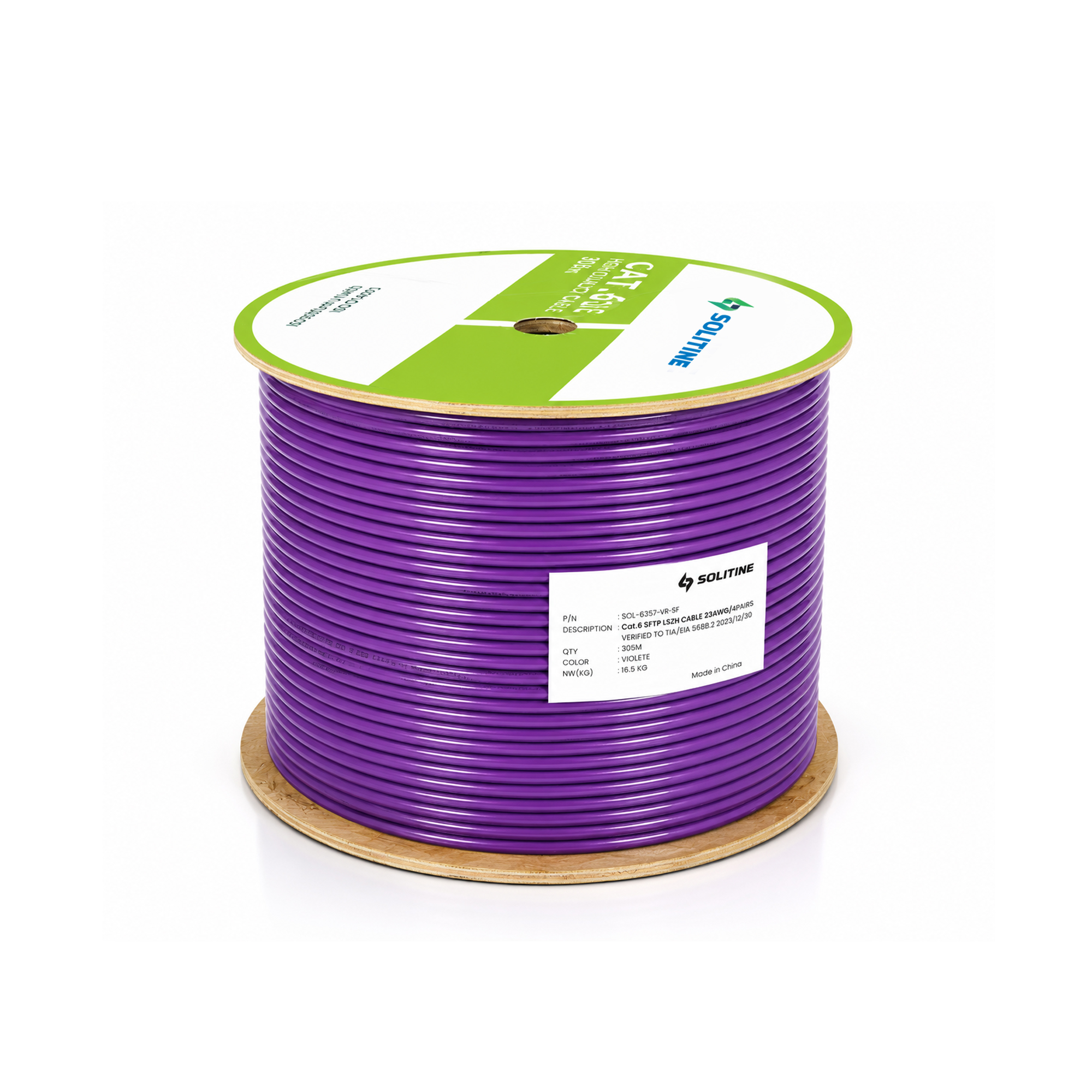

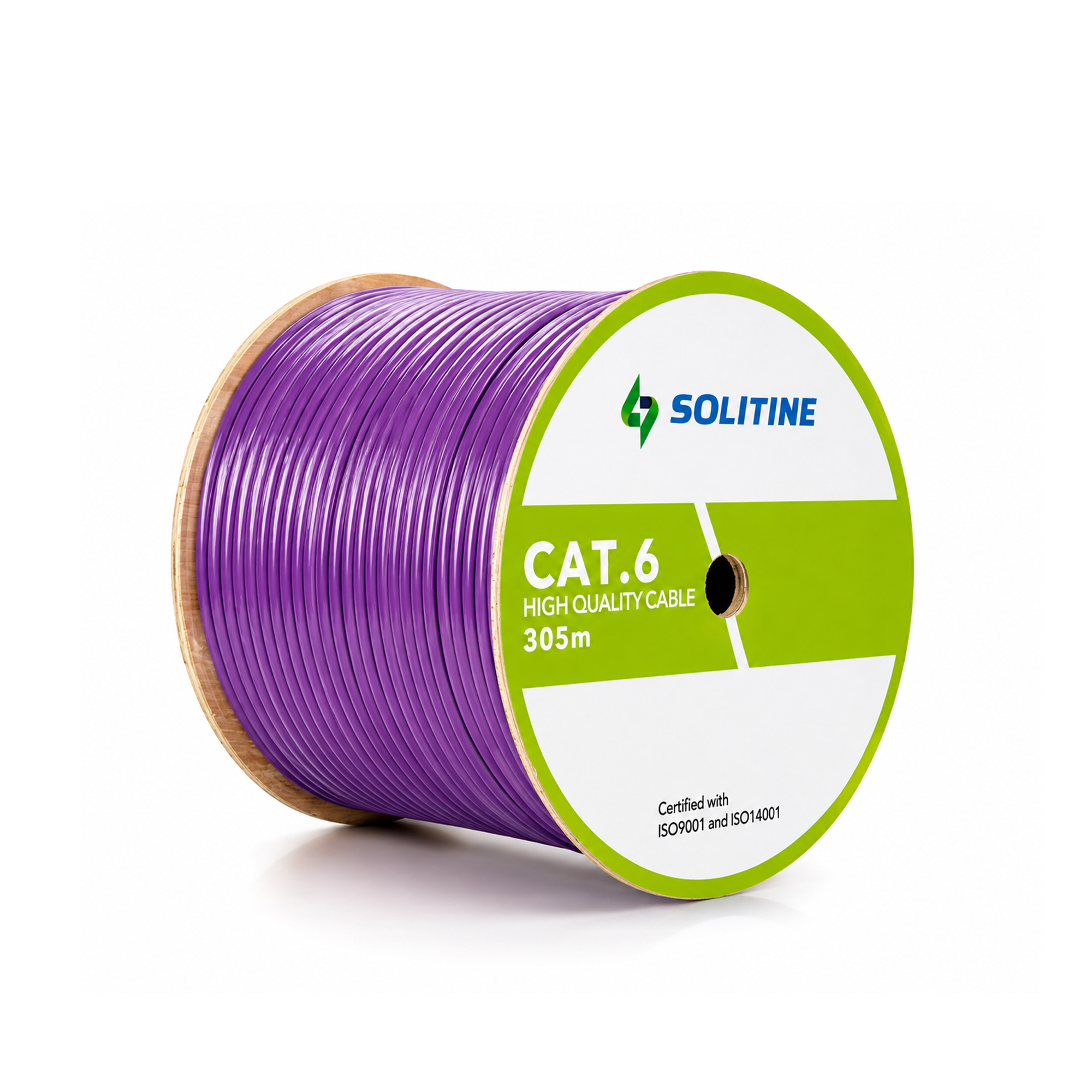

Our CAT6 Shielded (S/FTP) High performance data communications cable Has voice, data, video and security capabilities. Our Cat6 Bulk Cable is ideal for your network installation. Whether you are wiring your home, office or entire campus, Primus Cable has the solution that is right for you. Our CAT6 shielded (S/FTP) CM cable supports all CAT6 applications. This cable is designed for indoor CM installations. Primus Cables CAT6 CM Shielded (S/FTP) Solid Cable has 4 pairs of 23AWG solid bare Copper conductors with a Aluminum Foil Shielding over each pair and a Tinned Copper Braiding with a PVC Jacket. Primus Cables Cat6 CM shielded cable is quality manufactured to meet and exceed product certifications and standards ANSI/TIA 568-B.2-1, ISO/IEC. This cable is sold and shipped in 1000ft increments on a wooden spoon.

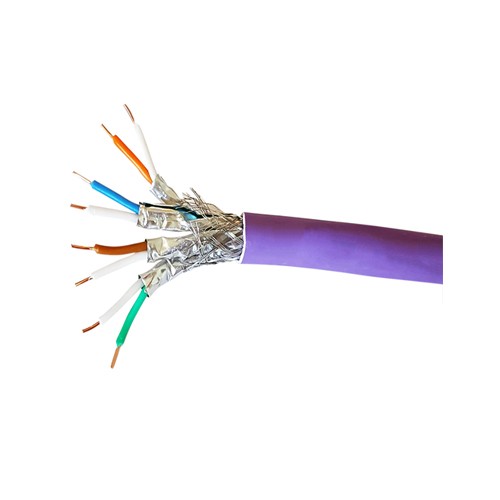

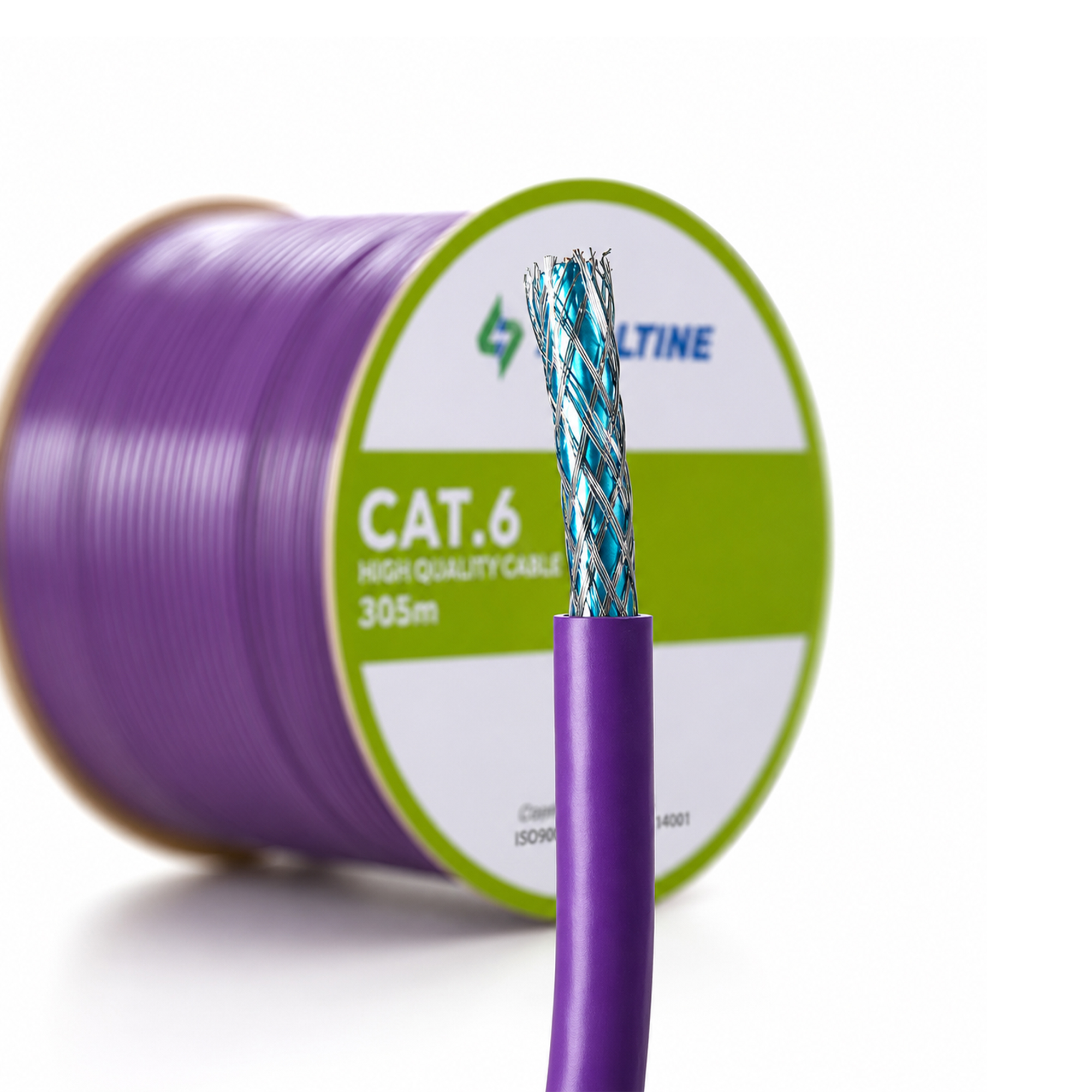

Structure
  • 23Awg solid bare copper conductor
  • PE insulation
  • 4pair, FR PVC/LSZH jacket
  • Rosh complaint
  • Synthetical separation foil: polyester
  • 110% coverage aluminum/polyster
  • 40% coverage tinned copper braiding
  • Drain wire
  • Frequency:250Mhz
  • Tranmission: 155Mbps
  • Industrial standard: International ISO/IEC-1180 USA ANSI/ANATEL, TIA/EIA-568b.2-2001, UI CE approved
Applications
  • ISDN
  • 10Base-T(IEEE802.3)
  • 100Base-T(IEEE802.3u)
  • Atm 155Mbps
  • 100Vg-anylan(IEEE802.12)
  • Token ring(IEEE802.5)
  • TP-PDM(ANSI x3t9.5)
Product performance
  • Linear resistance: Max.95 Ω/km
  • Mutual capacity(nom.):Max.5200pf/100m
  • Unbalance capacity Max (p/p at 1 khz):1500pf/1km
  • Characteristic impedance: 100(+or-)15 Ω
  • Velocity of propagation (f>1mhz):72% of C

File Type File Name Actions
PDF sftp_cat6_solid_cable_lszh-updated.pdf View Download
