SOL-2324A

Solitine / UPS

SOL-2324A

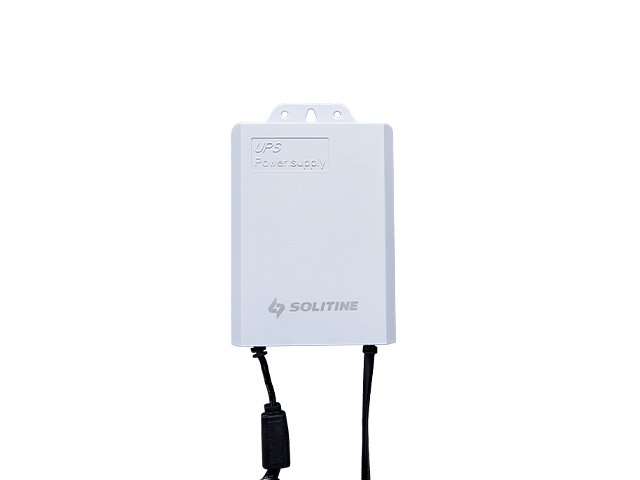

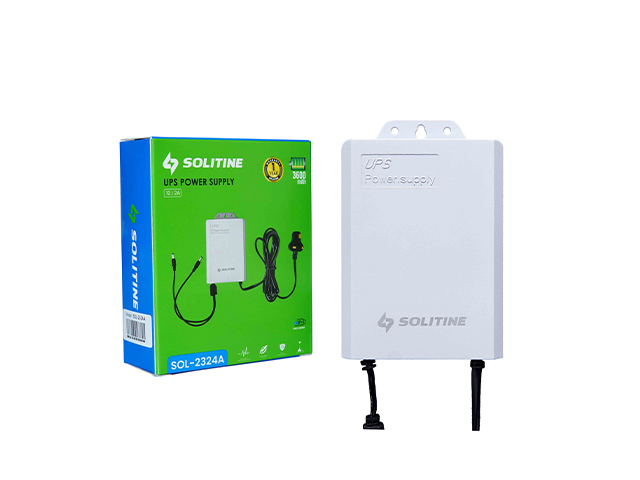

Solitine SOL-2324A 12V2A UPS Uninterrupted power Supply

Key Features
  • 3600mAh 18650 Li-ion battery with up to 5 hours backup (Router + ONU)
  • Stable DC 12V/2A output + Type-C USB PD support
  • Overload, short-circuit, overcharge & over-discharge protection
  • Compact design with LED indicators & 1 Year Warranty
Brand Solitine
Category UPS
Model SOL-2324A
Availability In Stock
General
UPS Type Smart Mini DC UPS (Lithium Battery Backup)
Color White
Power
Capacity 3600mAh
Rated Power 24W Max (12V/2A)
Input Voltage 110V–240V AC, 50/60Hz 0.5A
Output Voltage DC 12V / 2A
Output Frequency Pass-through
Waveform Type Pure DC Output
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency
Battery
Battery Type 18650 Lithium-ion
Battery Capacity 3600mAh
Battery Quantity Integrated (non-removable)
Backup Time Up to 5 hours (1× ONU + 1× Router); 3–3.5 hours (Router + ONU + Camera)
Battery Voltage 3.7V nominal (system converted)
Interface
AC Output Port None (DC UPS)
DC Output Port DC 12V / 2A interface
USB Port Type-C USB PD (5V/3A, 9V/2A, 12V/1.67A)
PoE Output No
Connector Type DC ports + Type-C
LED Indicator Yes (LED status indicators for battery level)
Power Button Yes
Protection
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes
Overheat Protection Yes (Air cooling system)
Features
Auto Restart Yes
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless / air cooling silent operation)
Smart Charging Yes (Simultaneous charge & discharge)
Physical
Dimensions 178 × 158 × 38 mm
Weight Approx. 300–400g
Material ABS Plastic
Warranty & Support
Warranty 1 Year Official Warranty
