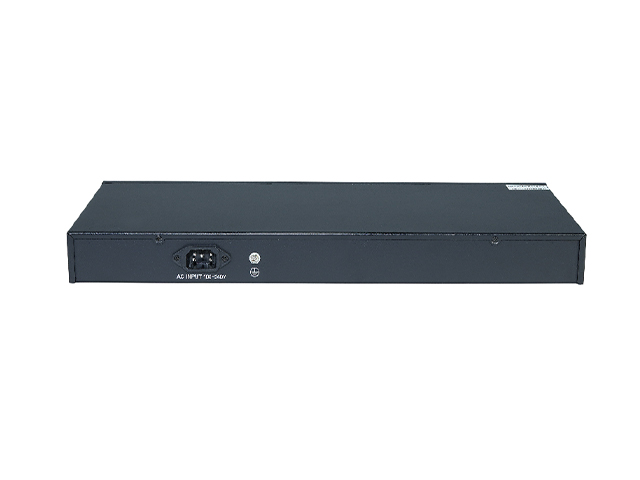

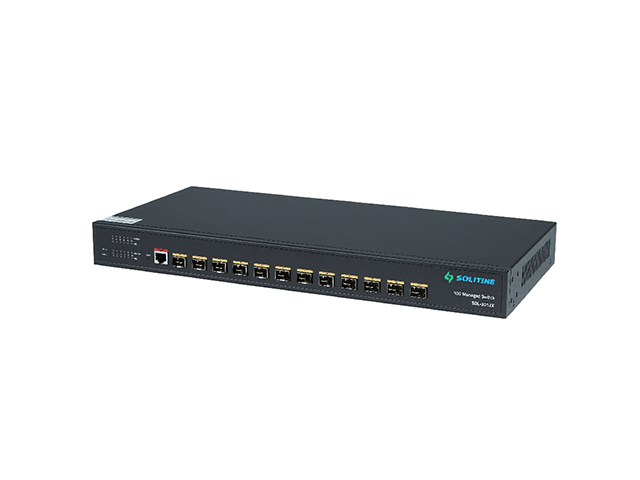

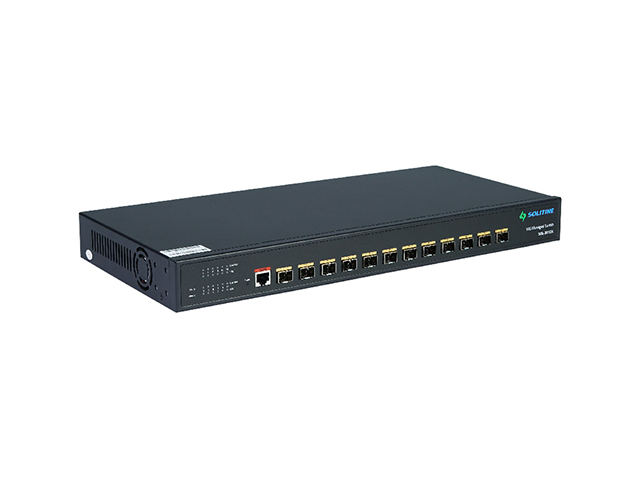

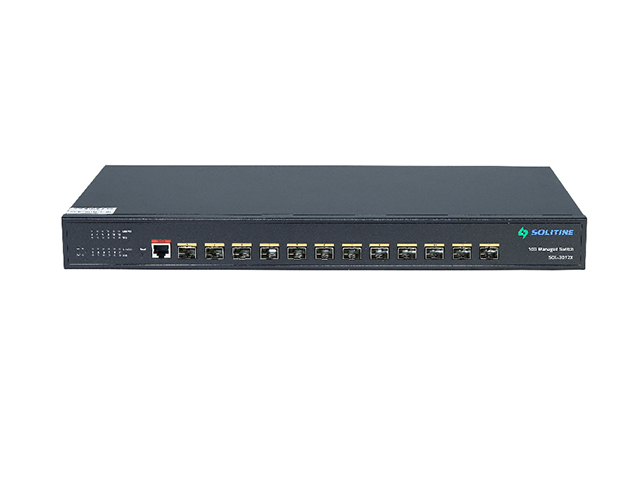

The Solitine SOL-3012X 12-Port 10G SFP+ Managed Switch is a high-performance Layer 3 network switch designed for enterprise networks, data centers, and ISP backbone deployments. Equipped with 12× 1G/2.5G/10Gbps SFP+ Ports, this switch delivers ultra-fast data transmission, a switching capacity of 240Gbps, and a forwarding rate of 178.56 Mpps, ensuring stable performance for high-bandwidth applications. Built with advanced Layer 3 routing capabilities, the SOL-3012X supports IPv4/IPv6 routing, static routes, RIP v1/v2, OSPFv2, ARP, and IPv6 ND, making it ideal for complex and scalable network environments. Its comprehensive VLAN features—including MAC VLAN, Protocol VLAN, and support for up to 4094 VLAN IDs—allow efficient traffic segmentation and network management.
| General Information | |
| Model | SOL-3012X |
| Power Supply | AC 100-240V 50/60Hz DC 12V 8A |
| Hardware | |
| Ports | Port Switch configuration Port Description configuration Port Speed configuration Port Duplex configuration Port Flow Control configuration Support 10G/2.5G Jumbo Frame, Up to 12K EEE Fiber Module(DDM) |
| Network Standards & Protocols | |
| Supported Protocols | IEEE802.3u (Fast Ethernet) IEEE 802.3ab (Gigabit Ethernet) IEEE 802.3z (Gigabit Ethernet Fiber Standard) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) IEEE 802.3az (Efficient and Energy saving Ethernet) IEEE 802.3ad (Link Aggregation) IEEE 802.1AB LLDP/LLDP MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol (Fast Spanning Tree) IEEE 802.1Q (Virtual Local Area Network) IEEE 802.1p (VLAN Tag) IEEE 802.1X (User Authentication) |
| VLAN Support | VLAN range 1-4094, maximum active VLAN is 4K |
| Port Configuration & Performance | |
| Forwarding Rate | 178.56 Mpps |
| MAC Address Table Size | 32K |
| Packet Buffer Size | 16Mbit |
| Switching Capacity | 240Gbps |
| Ethernet Interface | |
| Jumbo Frame Support | 12K |
| Features | |
| Surge Protection | Electrostatic ESD: Air 8KV, Contact 6KV (Class B) |
| Connectivity & Compatibility | |
| Interface | 12*1G/2.5G/10Gbps SFP+ ports 1*Console port |
| Environmental Specifications | |
| Operating Temperature | 0~40°C |
| Storage Humidity | 5%~95%, non condensing |
| Storage Temperature | 40~70°C |
