SOL-700BS

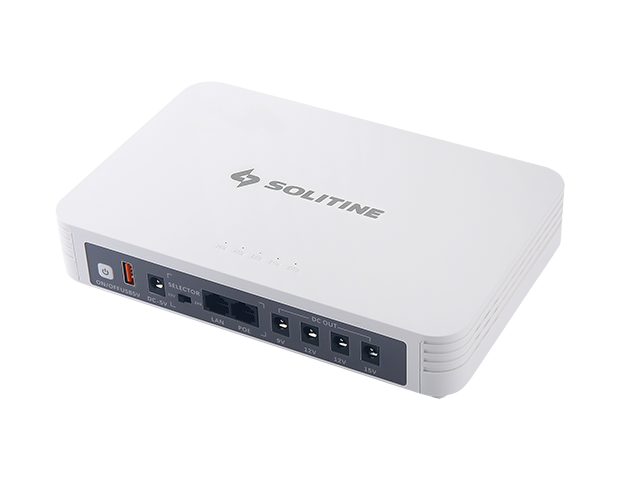

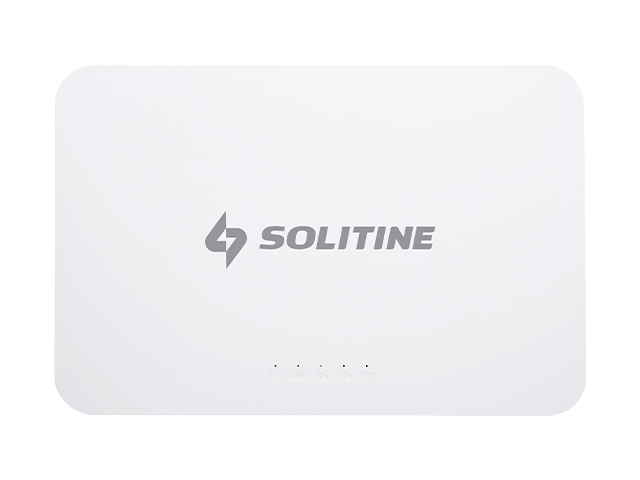

Solitine SOL-700BS Premium Mini DC UPS

Key Features
  • 20000mAh high-capacity 18650 lithium battery with 24W max output
  • Selectable voltages: 5V/9V/12V/15V/24V DC + USB + PoE support
  • Supports Router, ONU, IP Camera & multiple devices simultaneously
  • Built-in Bluetooth + Speaker, intelligent protections, silent operation & 1 Year Warranty
Brand Solitine
Category UPS
Model SOL-700BS
Availability In Stock
General
UPS Type Mini DC UPS (Lithium Battery Backup)
Color White
Power
Capacity 20000mAh
Rated Power 24W Max
Input Voltage 90-264V AC, 50-60Hz
Output Voltage Selectable: 5V, 9V, 12V, 15V, 24V DC
Output Frequency 50-60Hz (Pass-through)
Waveform Type Pure DC Output
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency (typical >85%)
Battery
Battery Type Built-in 18650 Lithium-ion cells
Battery Capacity 20000mAh
Battery Quantity Integrated (non-removable)
Backup Time 3–8 hours (depends on load — e.g., 5-6+ hours for Router + ONU)
Battery Voltage Internal Lithium nominal
Interface
AC Output Port None (DC UPS)
DC Output Port Multiple DC ports (9V@2A, 12V@2A, 15V@1.5A, 24V@1A)
USB Port Yes (5V / 2.4A)
PoE Output Yes (via +4,5 / -7,8 pins polarity)
Connector Type DC ports + USB + PoE
LED Indicator Yes (Battery level & Status LEDs)
Power Button Yes
Protection
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes
Overheat Protection Yes (Microprocessor controlled)
Features
Auto Restart Yes (Auto start when plugged in)
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless silent operation)
Smart Charging Yes (Microprocessor controlled)
Physical
Dimensions 225 × 182 × 45 mm (or 178 × 158 × 38 mm in some listings)
Weight Approx. 700–850g
Material ABS Plastic
Warranty & Support
Warranty 1 Year Official Warranty
