SOL-702Max

Solitine / UPS

SOL-702Max

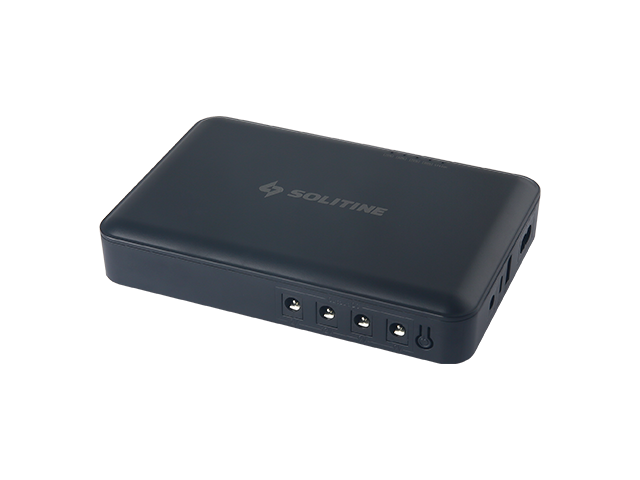

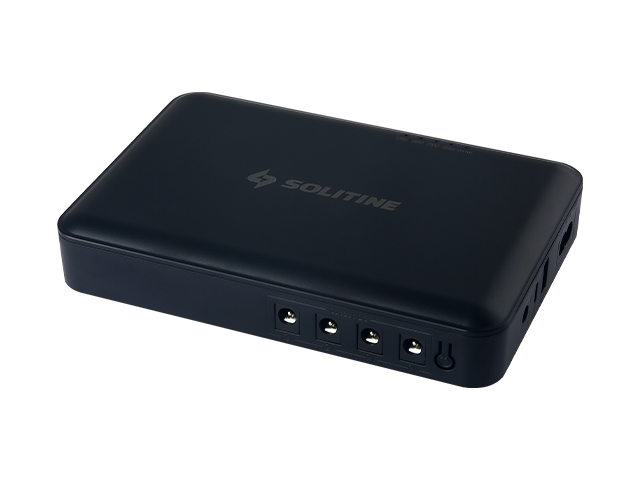

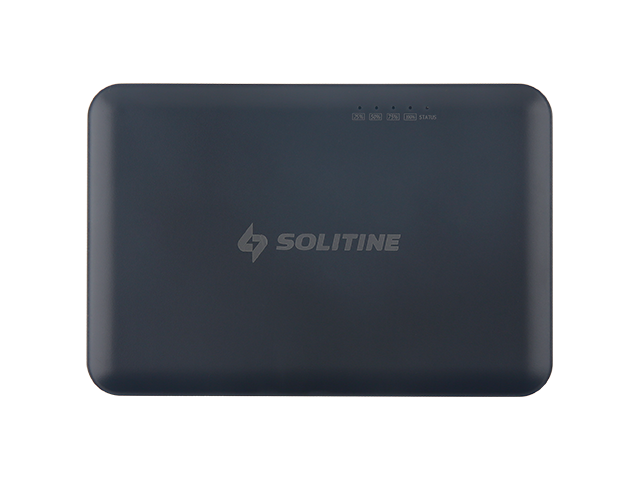

Solitine SOL-702Max Premium Mini DC UPS

Key Features
  • 20000mAh high-capacity lithium-ion battery (21700 cells) with 36W max output
  • Selectable multi-voltage outputs: 5V/9V/12V/15V/24V DC + USB & Type-C PD
  • Multiple DC ports for simultaneous Router, ONU, IP Camera & other device support
  • Intelligent protections, silent fanless design, auto-start & 1 Year Warranty
Brand Solitine
Category UPS
Model SOL-702Max
Availability In Stock
General
UPS Type Mini DC UPS (Lithium Battery Backup)
Color Black
Power
Capacity 20000mAh
Rated Power 36W Max
Input Voltage 90-264V AC, 50-60Hz
Output Voltage Selectable: 5V, 9V, 12V, 15V, 24V DC
Output Frequency 50-60Hz (Pass-through)
Waveform Type Pure DC Output
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency (typical >85%)
Battery
Battery Type Built-in High-quality Lithium-ion (21700 cells)
Battery Capacity 20000mAh
Battery Quantity Integrated (non-removable)
Backup Time 4–8+ hours (approx. 6-7 hours for 1 ONU + 1 Router; 4-5 hours with Camera)
Battery Voltage Internal Lithium nominal
Interface
AC Output Port None (DC UPS)
DC Output Port Multiple ports (e.g., 2×12V/2A, 2×9V/2A, 1×5V/3A)
USB Port Yes (5V/2.4A or 5V/3A)
PoE Output Not standard (some polarity support for specific use)
Connector Type DC ports + USB + Type-C (USB PD support)
LED Indicator Yes (Battery level + Status LEDs)
Power Button Yes
Protection
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes (basic)
Overheat Protection Yes (Microprocessor controlled)
Features
Auto Restart Yes (Auto Start When Plugged In)
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless silent operation)
Smart Charging Yes (Microprocessor controlled + Type-C PD)
Physical
Dimensions 178 × 158 × 38 mm
Weight Approx. 650–850g
Material ABS Plastic
Warranty & Support
Warranty 1 Year Official Warranty
