SOL-709

Solitine / UPS

SOL-709

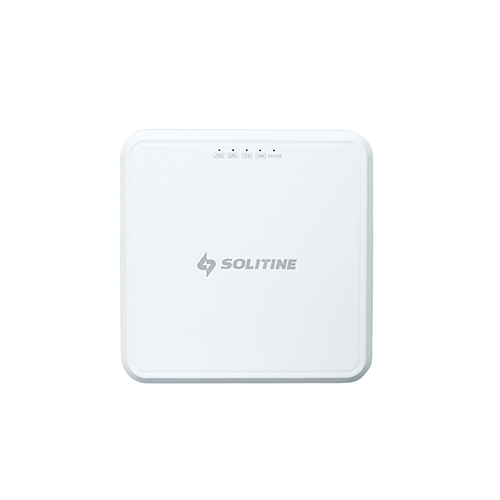

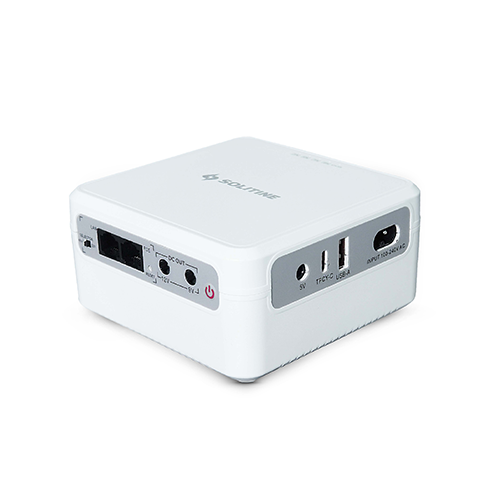

Solitine SOL-709 20000mAh Mini UPS

Key Features
  • 20000mAh high-capacity lithium battery for long backup time
  • 36W max output with PoE 48V/51V, selectable DC 12V/9V/5V & QC USB
  • Supports Router, ONU, IP Camera & Networking Devices simultaneously
  • Intelligent protections with silent fanless operation & 1 Year Warranty
Brand Solitine
Category UPS
Model SOL-709
Availability In Stock
General
UPS Type Mini DC UPS (Lithium Battery Backup)
Color White
Power
Capacity 20000mAh
Rated Power 36W Max
Input Voltage AC 100-240V, 50Hz, 0.4A (Max)
Output Voltage DC Selectable: 12V / 9V / 5V | USB: 5V | PoE: 48V / 51V
Output Frequency 50Hz (Pass-through)
Waveform Type Pure DC Output (for DC devices)
Transfer Time Instantaneous (0 ms – Seamless switch)
Efficiency High efficiency (not officially specified, typical >85%)
Battery
Battery Type Built-in High-quality Lithium-ion (21700 cells)
Battery Capacity 20000mAh
Battery Quantity Integrated (non-removable)
Backup Time 8–24 hours (depends on load — e.g., ~20-24 hrs for typical router + ONU ~10-15W)
Battery Voltage Internal ~3.7V nominal (system output converted)
Interface
AC Output Port None (DC UPS)
DC Output Port Selectable 12V/9V/5V DC ports
USB Port Yes (5V with QC 2.0 / QC 3.0 support)
PoE Output Yes (48V / 51V)
Connector Type DC ports + PoE RJ45 + USB
LED Indicator Yes (Multi-color LED for Power, Charging & Battery Status)
Power Button Yes
Protection
Overload Protection Yes
Short Circuit Protection Yes
Overcharge Protection Yes
Surge Protection Yes
Overheat Protection Yes (Intelligent protection circuit)
Features
Auto Restart Yes
Cold Start Yes
AVR Support Not applicable (DC UPS)
Silent Mode Yes (Fanless silent operation)
Smart Charging Yes (Simultaneous charge & discharge + QC fast charging)
Physical
Dimensions 180 × 118 × 60 mm
Weight ~800–950g (approx.)
Material ABS Plastic
Warranty & Support
Warranty 1 Year Official Warranty
