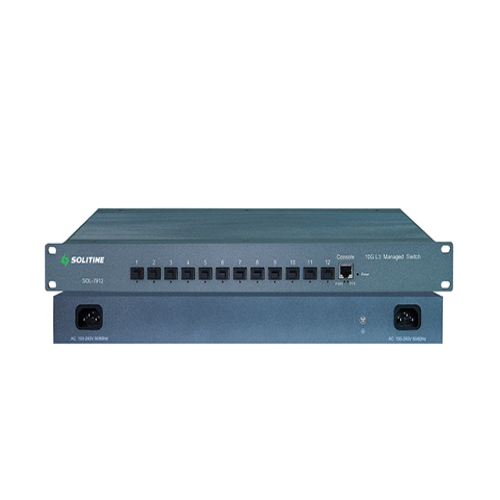

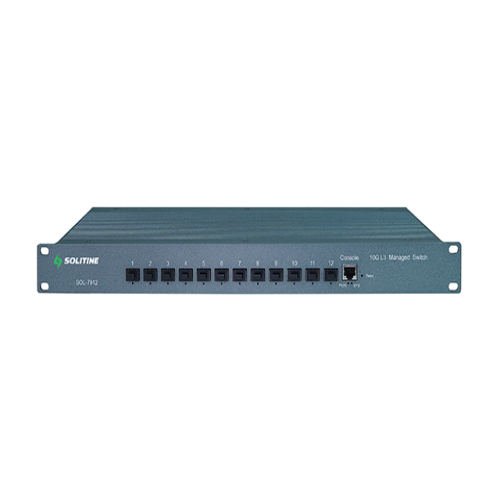

12-port 10G L3 managed industrial switch, supporting 12 SFP+ ports and 1 R45 console port. Improve the security control strategy and CPU protection strategy, improve the fault tolerance of the product to ensure stable network operation and link load balancing; the device supports SNMP, IEEE802.19, Spanning Tree, Rapid Spanning Tree Protocol, Link Aggregation, Route Management and other functions. Advanced security features and advanced service quality of service (Qos) can be used as core, distribution or access layer switches with high port density, easy to manage, and ideal for a variety of commercial network applications.
| Port | 12*10G SFP+ |
| Console | 1*RS-232 (115200,8,N,1) |
| Switch Property | |
|---|---|
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3ad, IEEE 802.1d, IEEE 802.1x |
| Forwarding Modes | Store and Forward |
| Packet Buffer | 12Mbit |
| MAC Table | 32k |
| Switching Capacity | 240Gbps / Non-blocking |
| Packet Forwarding Rate | 179Mpps |
| Jumbo Frame | 12kB |
| Power Supply | |
| Input Voltage | AC100V-240V, 50Hz/60Hz |
| Power Consumption | 40W |
| Reliability | |
| ESD Protection | 8kV Contact Discharge, 15kV Air Discharge, Standard: IEC61000-4-2 |
| MTBF | 100000 h |
| MTBF Standards | Telcordia SR-332, 25? |
| Operating Temperature | -40?~75? |
| Storage Temperature | -40?~85? |
| Operating Humidity | 5%~95% (Non-condensation) |
| Physical Parameter | |
| LED Indicators | 1*Power supply indicator 1*System working indicator 12*Optical port status indicator |
| Reset Button | Short press to restart the switch Long press >7s to initialize the system |
| Dimensions (W*D*H) | 445*193*44mm |
| Net Weight | 1.7 KG |
| Material | Aluminium |
| Mounting Options | Desktop/Rack-Mounted |
