Solitine SOL-XP01 Single Port Gigabit XPON ONU

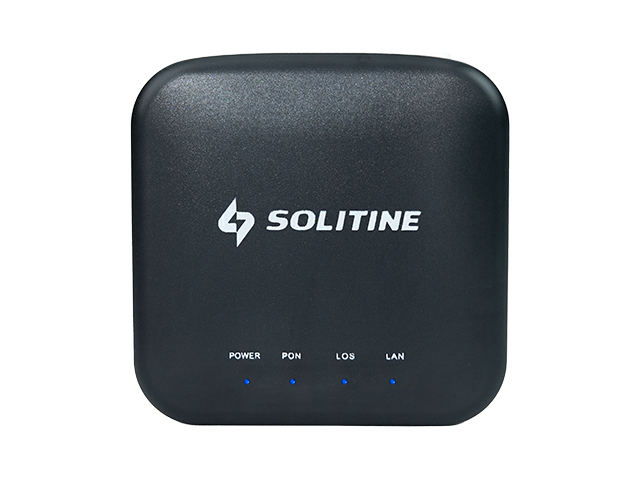

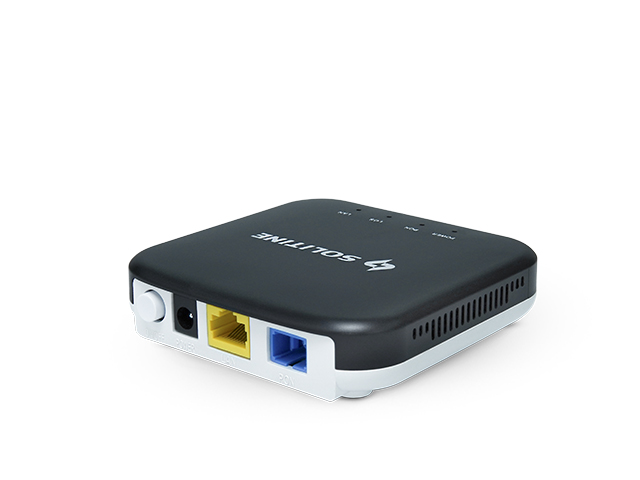

The Solitine SOL-XP01 is a compact and versatile Single Port Gigabit XPON ONU designed to provide fast, reliable internet. It's built to work with a variety of network standards and offers a range of features for easy setup and secure use. Here are the key details: Easy to Monitor and Connect: The unit includes LED indicators for power and network status. It has one Gigabit Ethernet LAN port and a single SC/UPC GPON port for fiber connection, along with a power port, a reset button, and an on/off switch. Built for Any Environment: It can operate in temperatures from 0°C to 45°C and be stored in a wider range of -40°C to 70°C, making it suitable for various climates. Flexible and Secure Software: The software supports different internet connection types like PPPoE, Dynamic IP, and Static IP. It also comes with robust security features, including IP, Mac, and URL filtering to protect your network. Complete Package: The device comes with a power adapter and a quick start guide for a smooth installation. The SOL-XP01 is backed by a two-year official warranty, ensuring quality and peace of mind.

General Information
Certifications CE, RoHS
Compliance Standards IEEE 802.3 EPON MAC, RFC4837
Device Type 1GE XPON ONU terminal
Operating Temperature/Humidity Range 10°C~50°C operating, 40°C~70°C storage, 10%~90%, non-condensing
Power Supply DC12V / 1A
Optical Interface
Connector Type Single fiber WDM (SC connector, type not specified)
Data Rates Upstream rate 1.25Gbps Downstream rate 2.5Gbps
Optical Mod Class B+
Optical Power Budget Max transmission distance 20 km (budget not specified)
PON RX sensitivity <-28dBm(1490nm)
PON Standard XPON (ITU-T G.984.x)
PON TX Power 1~5dBm(1310nm)
Interface
Fiber Port 1 x SC/UPC
LAN Port Configuration 1 × 10/100/1000 Mbps RJ45 port
Applications
FTTH Deployments Yes
Triple-Play Services Internet, IPTV
Software
Business Type Internet
DHCP Server Server, Client, DHCP Client List, Address Reservation, DHCP Relay
Diagnostics Ping, Ping6, Tracert, Tracert6
Firewall ALG, IP Filter, Port Filter, Mac Filter, URL Filter Port Forwarding,DMZ
IP Version IPv4, IPv6
IPv6 Radvd, DHCPv6, MLD Proxy, MLD Snooping
Services DHCP, Dynamic DNS
VLAN 802.1Q tag VLAN, support 4094 VLANs
WAN Connection PPPoE , Dynamic IP, Static IP, Bridge
Physical Design & Dimensions
Cooling Mechanism Passive (ventilated design)
LED Indicators Power, LOS, PON, LAN

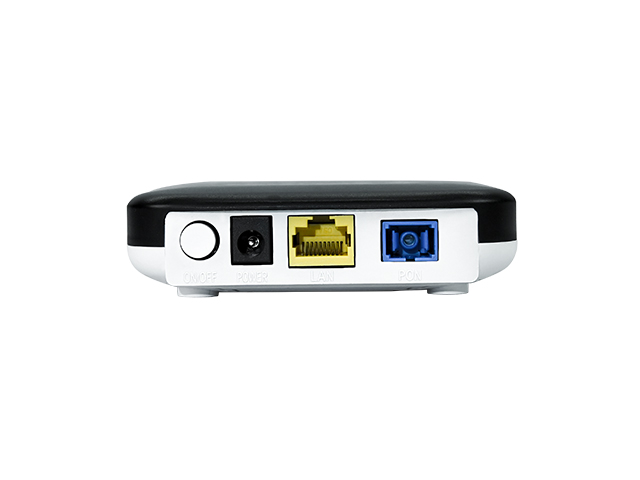

Port Arrangement Rear: Reset / Power button, Power jack, RJ45, PON port, Packaging & Accessories
Packaging & Accessories
Documentation (Manual, Warranty Card) Documentation
Included Items ONU, Power adapter, User manual
Warranty & Support
Software Update Policy Yes
Technical Support Channels official
Warranty Period 2 Years
