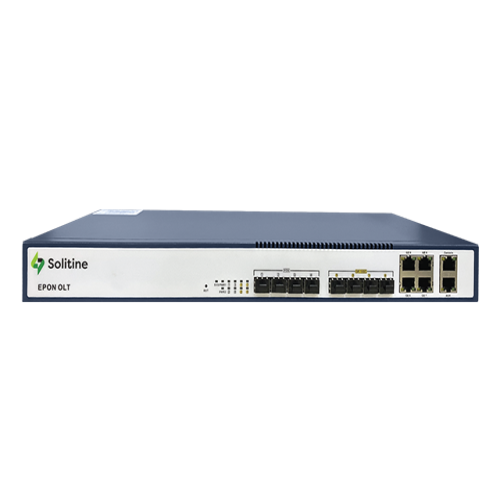

Solitine SOL1004-DP 4 Port 10G EPON OLT

The Solitine SOL1004-DP 4 Port 10G EPON OLT provides high-speed internet access for up to 256 Optical Network Units (ONUs) with a splitting ratio of 1:64 per PON port. Solitine SOL1004-DP OLT has 4 PON ports with SFP slots and SC/UPC connectors that support EPON standard and 10G speed. Solitine SOL1004-DP OLT has an AC power supply that supports input 100 to 240V. The Solitine OLT supports various features such as IEEE802.12x, VLAN, Radious, Tacacs+, HTTPS and SSH V2.0. Solitine SOL1004-DP EPON OLT also supports SNMP, Telnet, Https, SSH login access management for easy configuration and monitoring. The Solitine SOL1004-DP OLT is compatible with any brand EPON ONU, making it a flexible and reliable solution for broadband access networks.

Management Ports

  • 1*10/100BASE-T out-band AUX port,
  • 1*CONSOLE port

PON Port Specification

  • Transmission Distance: 20KM
  • EPON Port Speed Symmetrical 1.25Gbps
  • Wavelength: TX 1490nm, RX 1310nm
  • Connector: SC/UPC
  • Fiber Type: 9/125μm SMF
  • TX Power: +4.5dBm~+9dBm
  • Rx Sensitivity: -32dBm
  • Saturation Optical Power: -8dBm

Management Mode

  • SNMP/Telnet/CLI/WEB/SSH v2

Management Function

  • Fan Group Control;
  • Port Status monitoring and configuration management;
  • Online ONU configuration and management;
  • User management, Alarm management

Layer 2 Feature

  • 16K MAC address
  • Support port VLAN and protocol VLAN
  • Support 4096 VLANs
  • Support VLAN tag/Un-tag, VLAN transparent transmission, QinQ
  • Support IEEE802.3d trunk
  • Support RSTP, MSTP
  • QoS based on port, VID, TOS and MAC address
  • IEEE802.x flow control

Multicast

  • IGMP snooping
  • 256 IP Multicast Groups

DHCP Functions

  • DHCP server
  • DHCP relay
  • DHCP snooping

Layer 3 Features

  • ARP proxy
  • Static route
  • 1024 hardware Host Routes
  • 512 hardware Subnet Routes
  • Support RIPv1/v2, OSPFv2/v3
  • Support PPPoE/PPPoE+

File Type File Name Actions
PDF Solitine-SOL1004-DP.pdf View Download
