SOL6157-BL-U

Solitine / Cat-6

SOL6157-BL-U

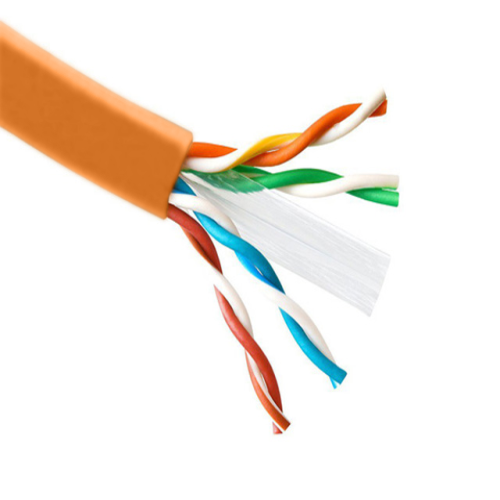

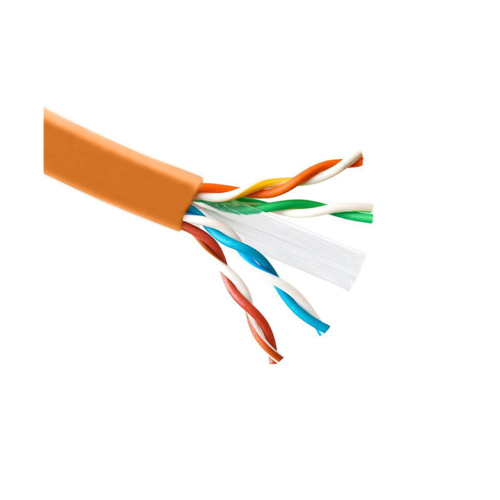

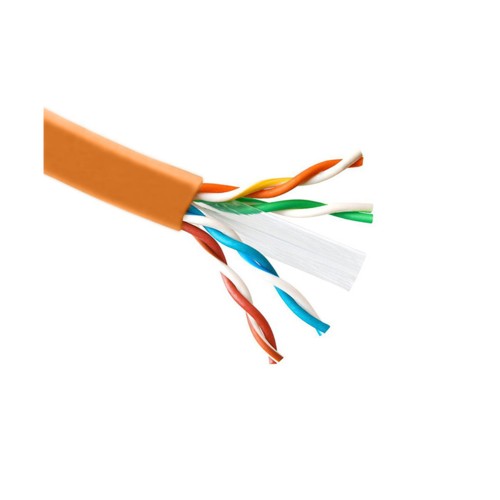

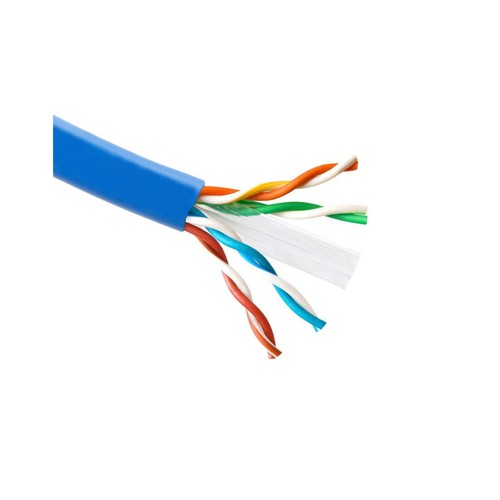

SOLITINE UTP CAT6 Solid Cable

Key Features
  • 23 AWG solid bare copper conductors for maximum conductivity and performance
  • 250 MHz bandwidth with support for 1 Gbps @ 100m
  • UTP design with PE central cross for reduced crosstalk and better signal quality
  • FR PVC jacket, RoHS compliant, TIA/EIA-568 & ISO/IEC 11801 certified
Brand Solitine
Category Cat-6
Model SOL6157-BL-U
Availability In Stock
General
Cable Type UTP Cat 6 Solid Cable (Installation Cable)
Color Blue (BL)
Cable Specifications
Category Cat 6
Conductor Material 100% Bare Copper (Solid)
Conductor Size 23 AWG
Cable Length Standard 305m (1000 ft) Box / Reel
Number of Pairs 4 Twisted Pairs (8 conductors)
Bandwidth 250 MHz
Data Rate 1 Gbps up to 100m, supports 10 Gbps over shorter distances
Shielding
Shield Type UTP (Unshielded Twisted Pair / U/UTP)
Physical
Outer Diameter ≈ 6.6 mm (±0.2 mm)
Jacket Material FR PVC (Flame Retardant) / LSZH option available
Jacket Type PVC UL94V-0 (or LSZH)
Standards
ANSI/TIA Compliance ANSI/TIA/EIA-568-B.2 / TIA-568-C.2 compliant
ISO/IEC Compliance ISO/IEC 11801 Class E
Environment
Operating Temperature Typically -20°C to +60°C (standard for this type)
Others
Package Content 305m Cable in easy-pull Box, Rip Cord, PE Central Cross Separator
Warranty & Support
Warranty 1 Year Official Warranty
